Develop ineo+ 6500 Service Manual page 592

Theory of Operation Ver2.0 Sep.2006

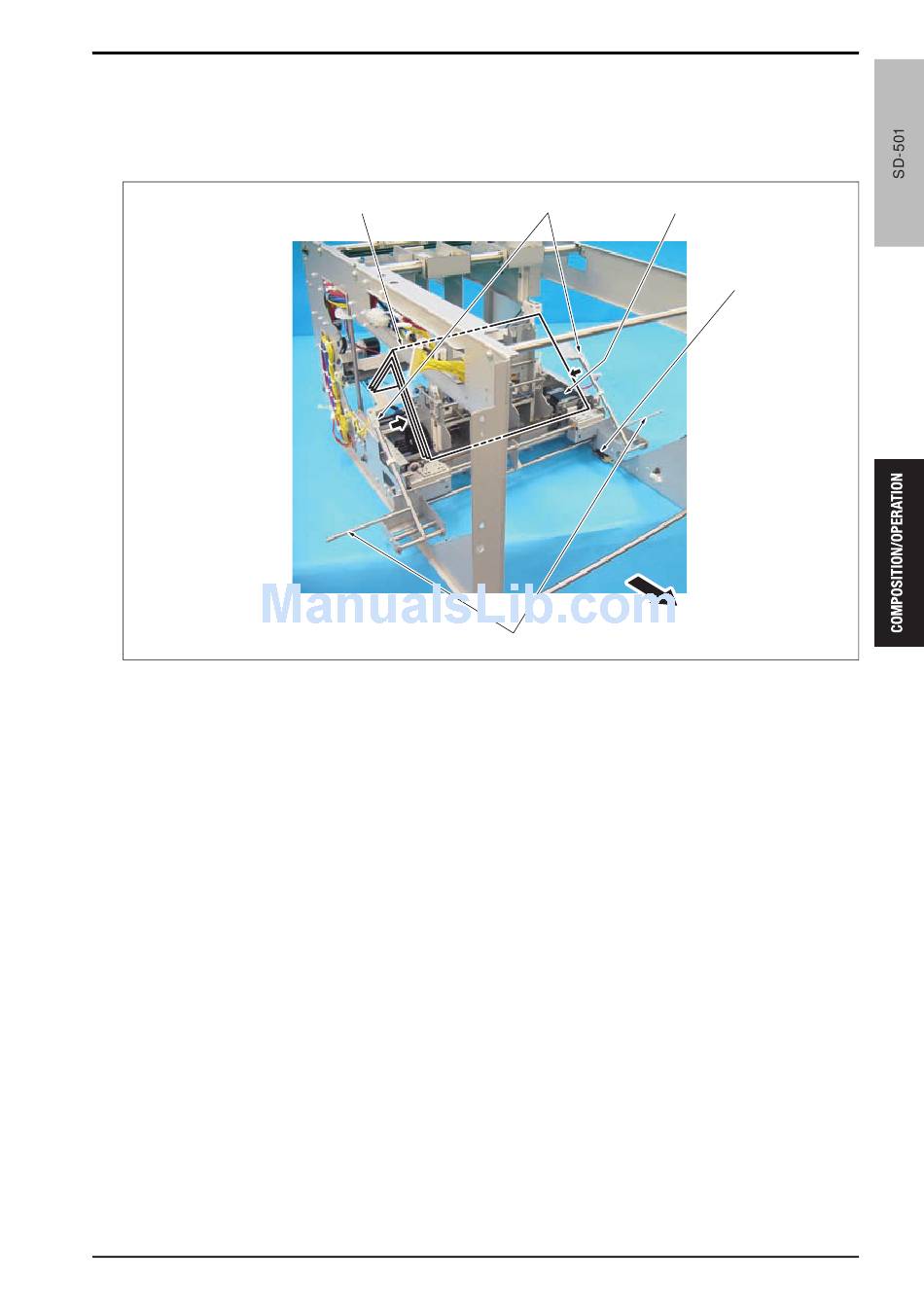

A. Bundle arm movement mechanism
The bundle arm [5] is driven by the bundle arm motor (M10) [6] to catch/release the paper [4] in the sub scan
direction via the belt.
The bundle arm home sensor (PS32) [1] detects the home position of the bundle arm.
[1] Bundle arm home sensor (PS32)
[2] Front side direction
[3] Guide shaft
[4]
[3]
[4]
[5]
[6]
7. SADDLE STITCHING SECTION
[5] [6]
[2]
Paper
Bundle arm
Bundle arm motor (M10)
[1]
15ant2c044na
71
