Theory of Operation Ver1.0 Sep.2006

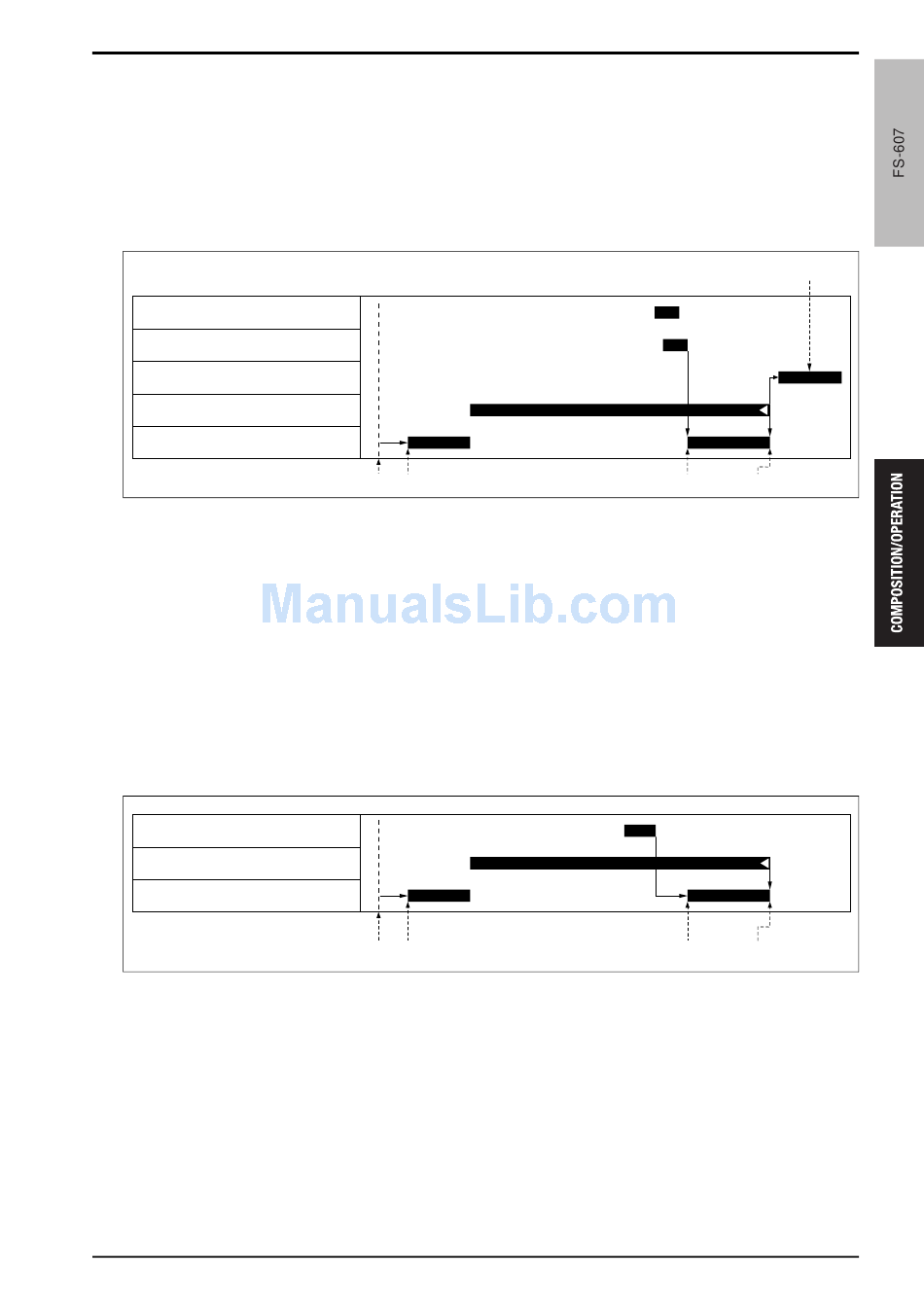

B. Paper exit opening/closing control
(1) Stapling mode (when the paper length is B5S or longer in the sub scan direction)
Transmitting the FNS signal [1] from the main body, the paper exit motor (M8) rotates [2] to open the paper exit
opening.
When the stapling operation completes, M8 turns ON [3] again to close the paper exit opening. It stops when
the paper exit home sensor (PS12) detects the paper exit opening is closed.
These operations are repeated for every stapled bundle.
Stapler motor /Fr (M14)
Clincher motor /Fr (M15)
Stapler motor /Rr (M9)
Clincher motor /Rr (M10)
Paper exit opening solenoid (SD4)
Paper exit home sensor (PS12)
Paper exit motor (M8)
[1] FNS start signal turned ON
[2] Opening the paper exit opening
[3] Closing the paper exit opening
(2) Folding/saddle stitching/tri-folding mode
Transmitting the start signal [1] from the main body, the paper exit motor (M8) rotates [2] to open the paper exit
opening.
M8 turns ON [3] again to close the paper exit opening after a specified period of time since the folding paper exit
sensor (PS25) or the folding full sensor (PS29) detects the trailing edge of the last page. It stops when the paper
exit home sensor (PS12) detects the paper exit opening is closed [4].
Folding paper exit sensor (PS25)
Paper exit home sensor (PS12)
Paper exit motor (M8)
[1] FNS start signal turned ON
[2] Opening the paper exit opening
[1] [2]
[4]
[5]
[1] [2]
[3]
[4]
4. TRANSFER SECTION
[3]
Paper exit opening closed
Paper nipped by the paper exit opening
solenoid (SD4)
[3]
Closing the paper exit opening
Paper exit opening closed
[5]
[4]
15jkt2c013na
[4]
15jkt2c014na
