Theory of Operation Ver1.0 Sep.2006

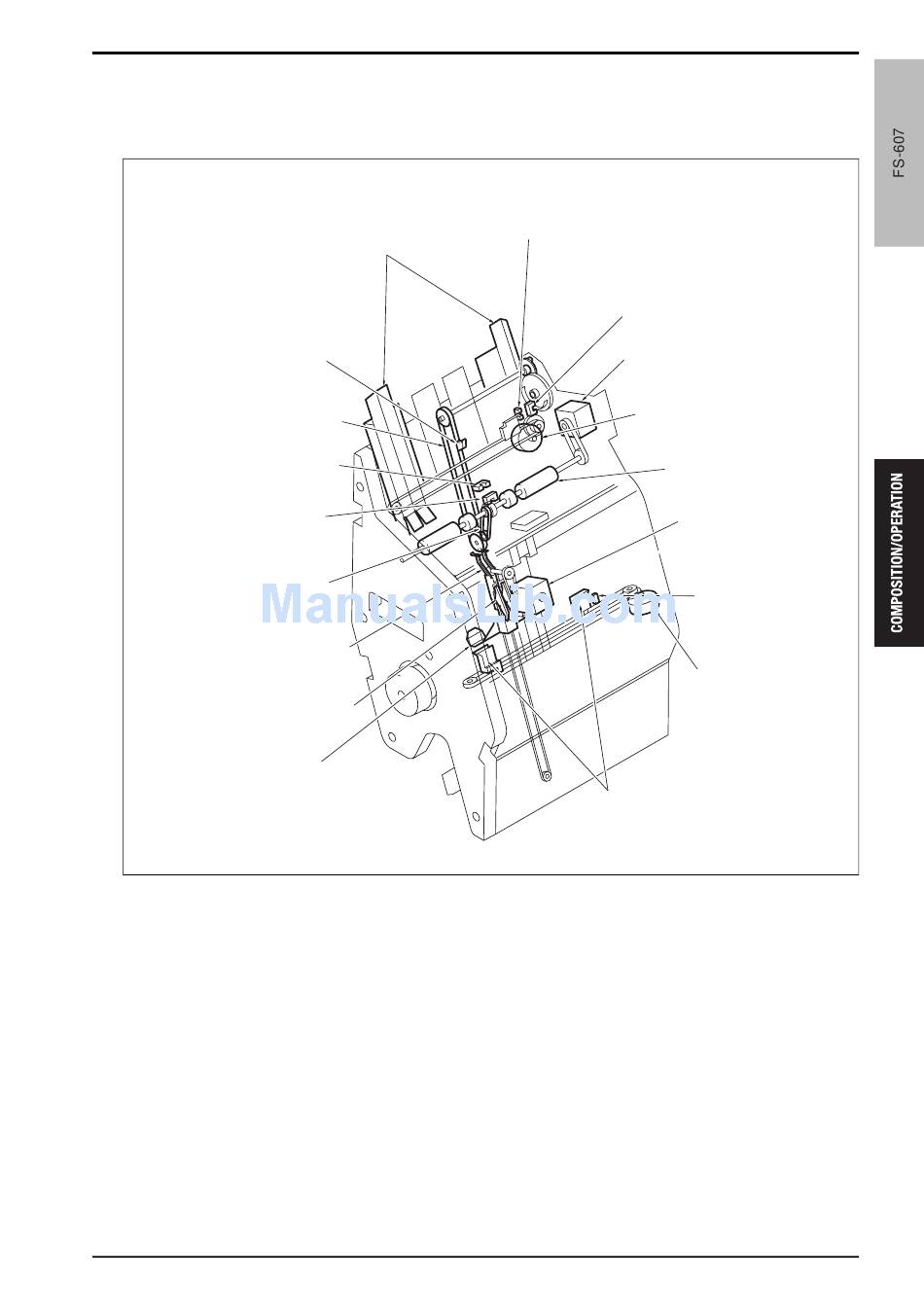

6. STACKER SECTION
6.1
Composition
Paper exit arm
Paper exit belt
Stacker empty sensor
(PS20)
Stacker entrance sensor
(PS5)
Swing belt
Flat-stapling stopper
Saddle stitching stopper
home sensor (PS23)
Saddle stitching stopper
Alignment home sensor /Up (PS8)
Alignment plate /Up
6. STACKER SECTION
Paper exit belt home sensor (PS9)
Stacker entrance motor (M13)
Alignment motor /Up (M5)
Stacker entrance roller
Saddle stitching
stopper motor (M18)
Alignment home
sensor/Lw (PS24)
Alignment motor /Lw
(M16)
Alignment plate /Lw
a04dt2c006ca
