D. Job partition plate
In stacker tray sort mode, the trailing edge of the shift paper is restricted by the job partition plate and the paper
is exited onto the stacker tray 20 mm shifted from the non-shift paper. At this time, the upper surface of the non-
shift paper does not come to the same level as the lower edge of the job partition plate and the 1st sheet of the
shift paper is in possibility of getting into the lower side of the job partition plate. To prevent this, the job partition
plate is attached to the upper surface of the non-shift paper that has been exited to restrict the entry of the
paper.
For the job partition solenoid (SD2) that drives the job partition plate, a latch-type solenoid is employed that is
not required to be energized to maintain the ON state. However, a latch-type solenoid requires a different control
signal for each ON and OFF action.
[4]

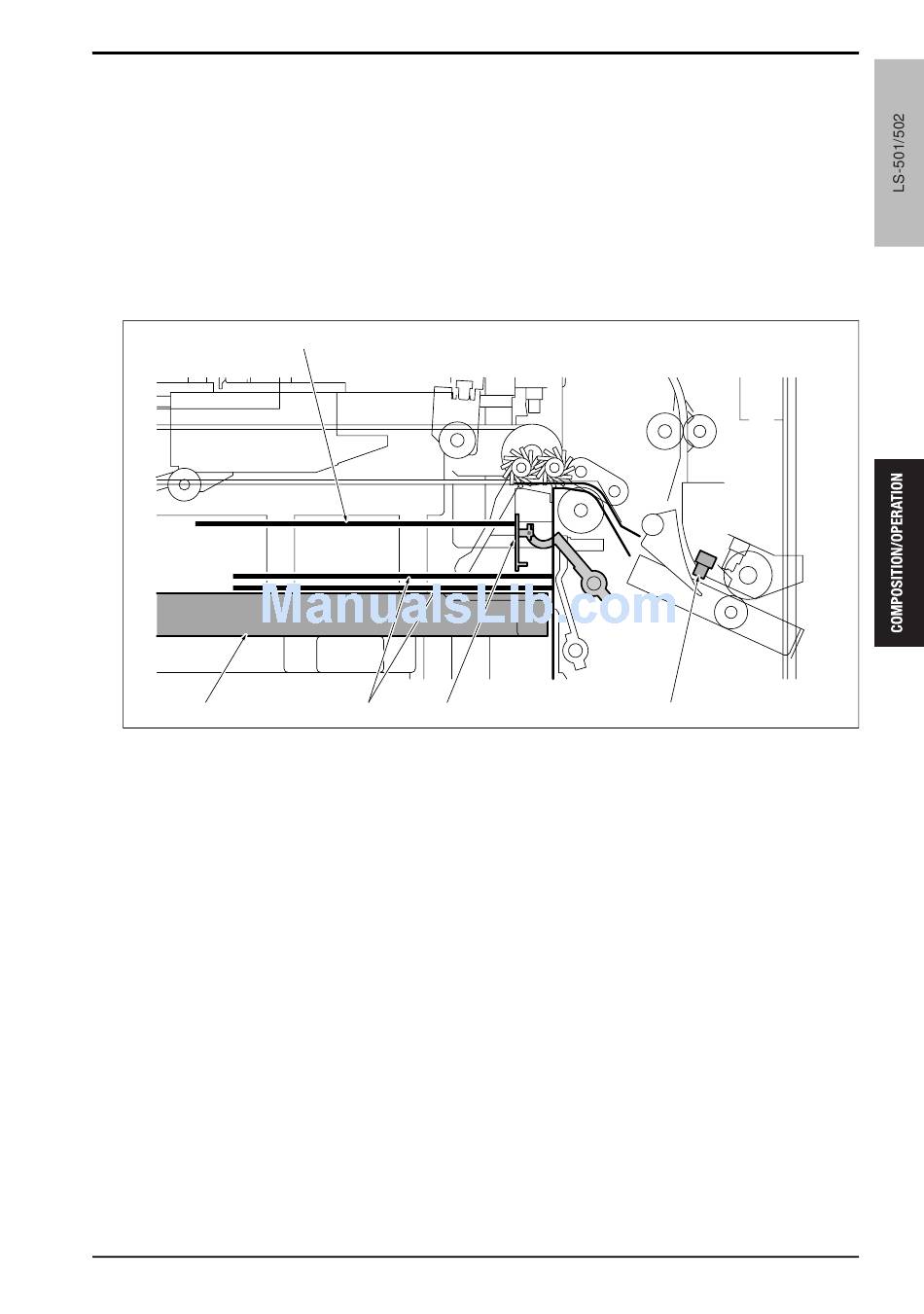

[1] Entrance sensor (PS4)
[2] Job partition plate
[3] Non-shift paper
[5]
[3] [2]
6. CONVEYANCE SECTION
[1]
[4] Stacker tray
[5] Shift paper
