Develop ineo+ 6500 Service Manual page 246

Theory of Operation Ver1.0 Sep.2006
(2) Control for small-sized paper
1.
Paper fed by the paper feed roller hits against the pre-registration roller that is stopping due to the off-status
[1] of MC102, and the skew of paper is corrected.
2.
Then, after a predetermined time period has elapsed, MC102 turns on [2] to rotate the pre-registration roller
to convey the paper.
3. When a predetermined time period has elapsed after PS106 detects the rear end of the paper, MC102 turns
off to stop the pre-registration roller [3].
4.
The same operation is carried out for the second and subsequent papers.

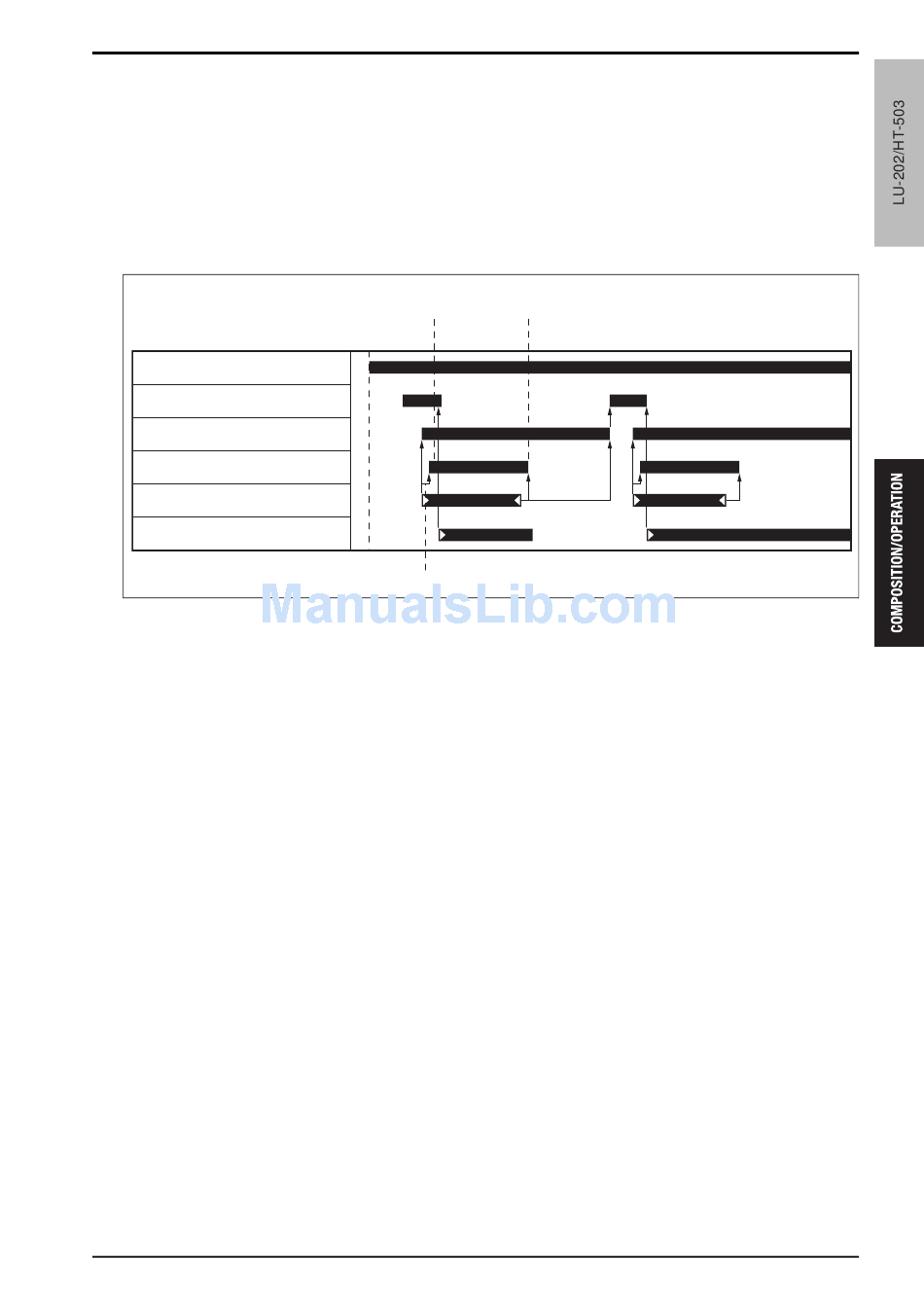

Paper feed motor (M1)
Paper feed clutch (MC101)
Pick-up solenoid (SD100)
Pre-registration clutch (MC102)
Pre-registrations sensor (PS106)
LU exit sensor (PS107)
[1] Paper skew correction
[2] Paper conveyance into the main body
[2] [3]
[1]
[3] MC102 turns off upon completion of 1st
paper conveyance
