20. REVERSE/PAPER EXIT SECTION
20.3.2

Reverse/paper exit timing control

• In face down paper exit, paper conveyed from the fusing section to the reverse decurler roller passing under
the reverse gate.
• The reverse decurler roller conveys the paper to the small size roller by the normal rotation of the decurler
motor (M55).
• The small size roller and the reverse roller /Lw convey the paper to the ADU reverse section by the reverse
paper exit motor (M33).
• When the decurler sensor (PS62) detects the rear end of paper and turns off [2], the M55 and M33 switch
to reverse rotation.
• The rollers rotate in reverse and convey the paper in reverse direction, but due to the guide on the convey-
ance path, the paper is conveyed to the paper exit roller, not to the reverse gate side.
• By means of the above operations, paper is exited with its upside down.
• When the paper exit sensor (PS13) detects the rear end of the paper and turns off [3], the M55 and M33
starts the normal rotation again and the next paper is reversed/exited.

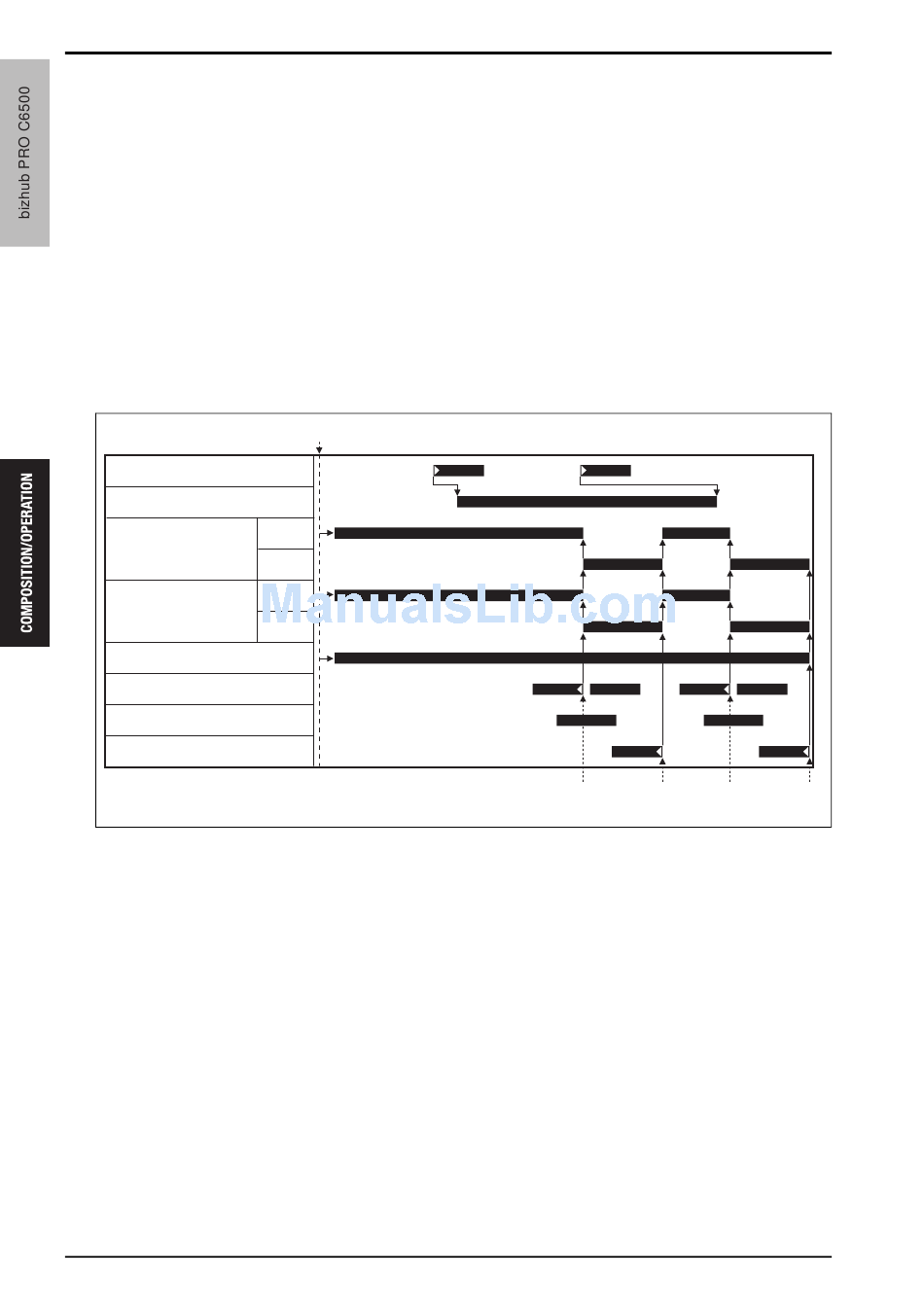

Registration motor (M30)
Paper exit solenoid (SD4)
Decurler motor
(M55)
Reverse paper
exit motor (M33)
Paper exit motor (M54)
Decurler sensor (PS62)
Reverse paper exit sensor (PS19)
Paper exit sensor (PS13)
[1] Print start signal is received
[2] First sheet reverse conveyance
[3] First sheet exit
98
[1]
Forward
Reverse
Forward
Reverse
Theory of Operation Ver1.0 Sep.2006
[2] [3]
[4] Second sheet reverse conveyance
[5] Second sheet exit
[4] [5]
