Clincher Up Down Drive - Develop ineo+ 6500 Service Manual

7. SADDLE STITCHING SECTION
7.2.3

Clincher up down drive

[5]

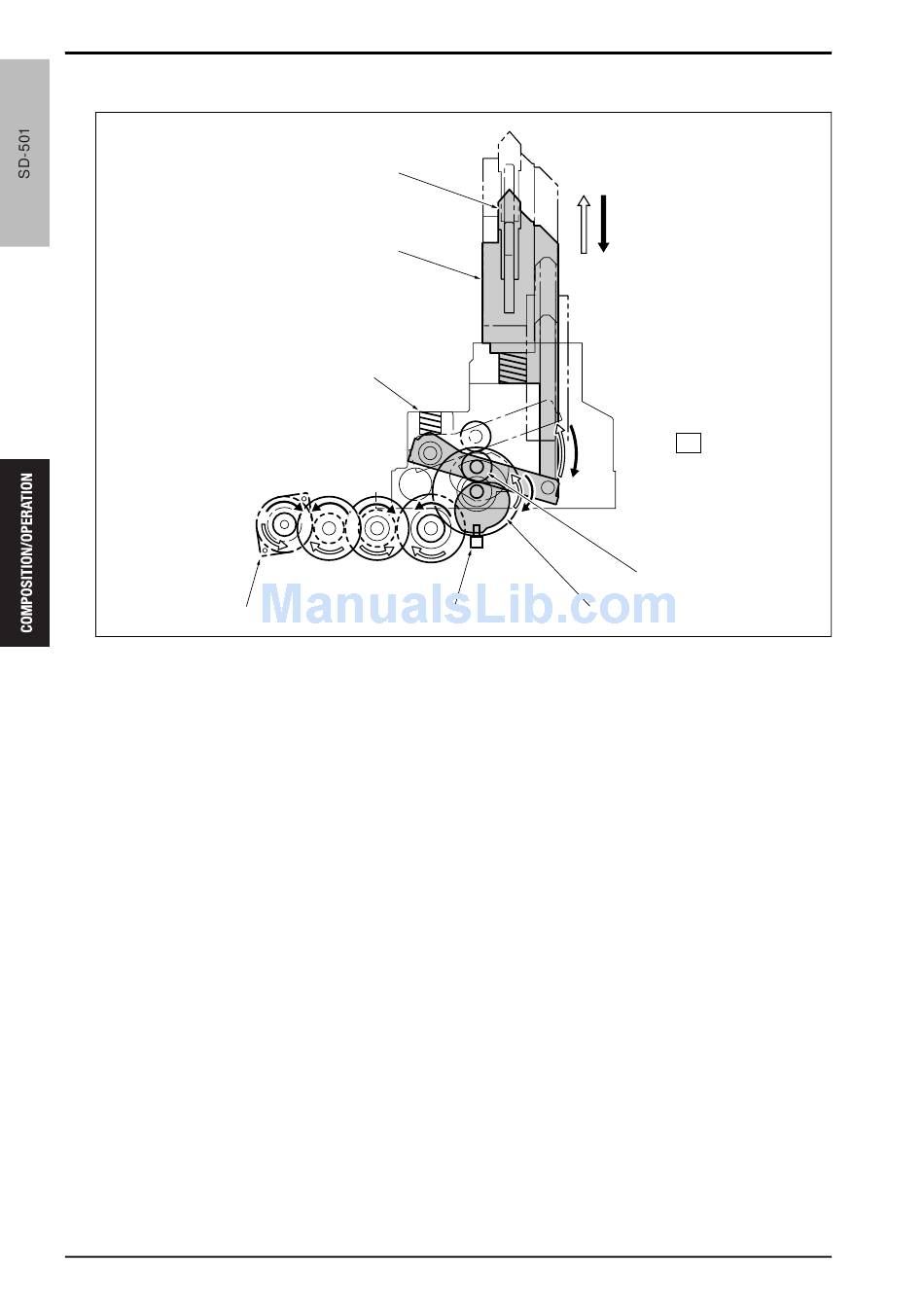

[1] Left side view
[2] Roller
[3] Eccentric cam
[4] Clincher up down home sensor (PS26)
52
[8]
[7]
[6]
[4]
[5]
[6]
[7]
[8]
Theory of Operation Ver2.0 Sep.2006
[1]
[2]
[3]
Clincher up down motor (M20)
Spring
Clinchers /Rt, /Lt
Saddle stitching hold /Lw
15ant2c031na
