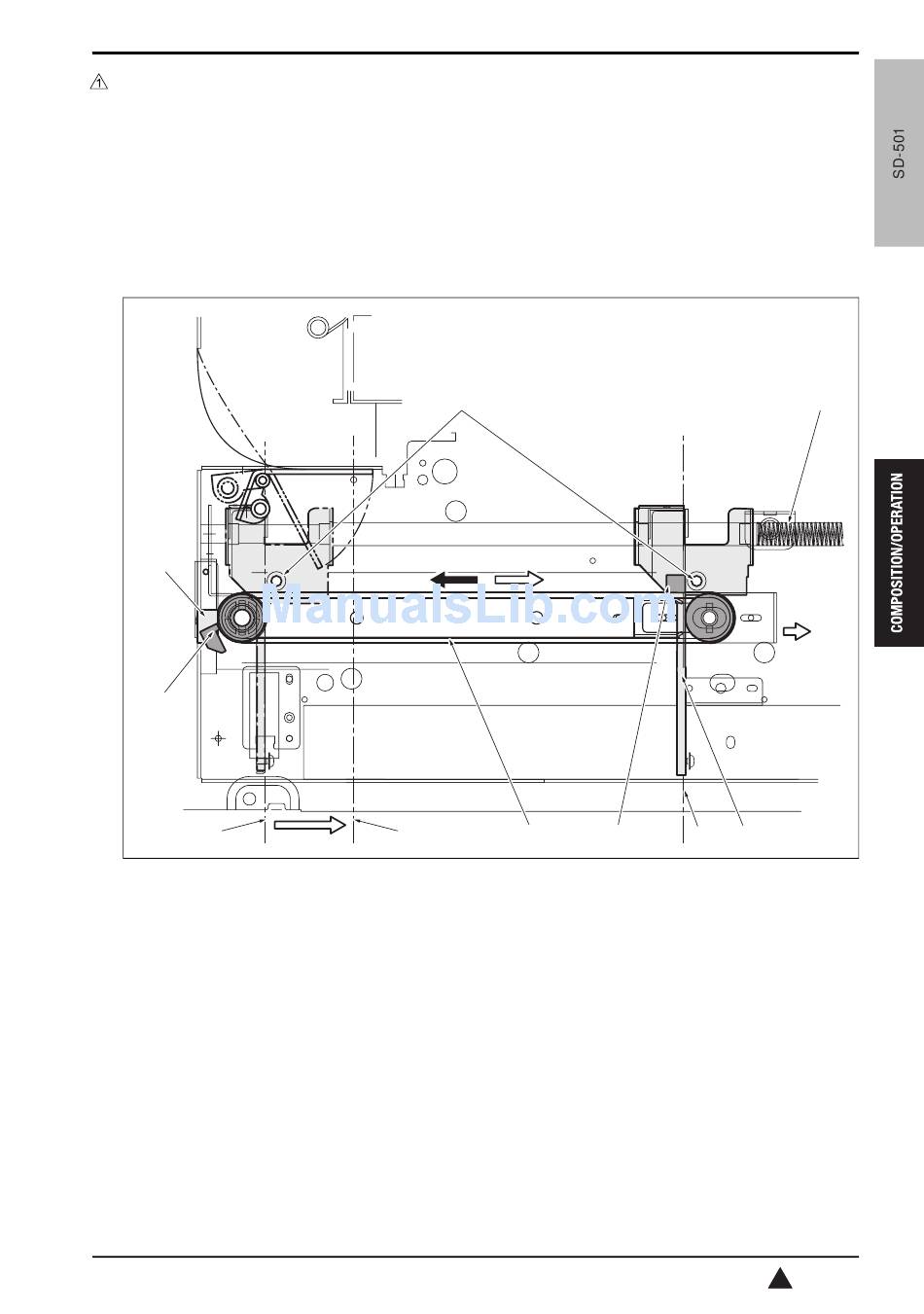

(3) Trimmer scraps press mechanism
Trimmer scraps press is executed by driving the bundle exit motor (M5). The M5 motor drives the pins [10] via
the scraps press craws [4] on the belt [5] to move the scraps press plate [2] forward, then the trimmer scraps are
pressed by the plate. The spring [11] pushes the scraps press plate to put it back.
The trimmer scraps press is carried out when the actuator [8] turns on the scraps press home sensor (PS48) [9]
with the press position of the scraps press plate is at the home position
The maximum travel distance of the scraps press plate is 200 mm.
The trimmer scraps press is carried out when the trim is performed five times or when the total trimmed number
of sheets becomes 60 sheets (30 sheets before folding) or more.
[9]
[8]
[7]
[1] Front side direction
[2] Scraps press plate (maximum movement
position)
[3] Home position
[4] Scrap press claws
[5] Belt
[10]
[6] [5]
[6] Trimming position
[7] Backmost position
[8] Actuator
[9] Scraps press home sensor (PS48)
[10] Pin
[11] Spring
8. BUNDLE PROCESSING SECTION
[4] [3] [2]
15ant2c064nb
1
[11]
[1]
