Fan Control; Configuration - Develop ineo+ 6500 Service Manual

Theory of Operation Ver1.0 Sep.2006

25.2 Fan control

25.2.1

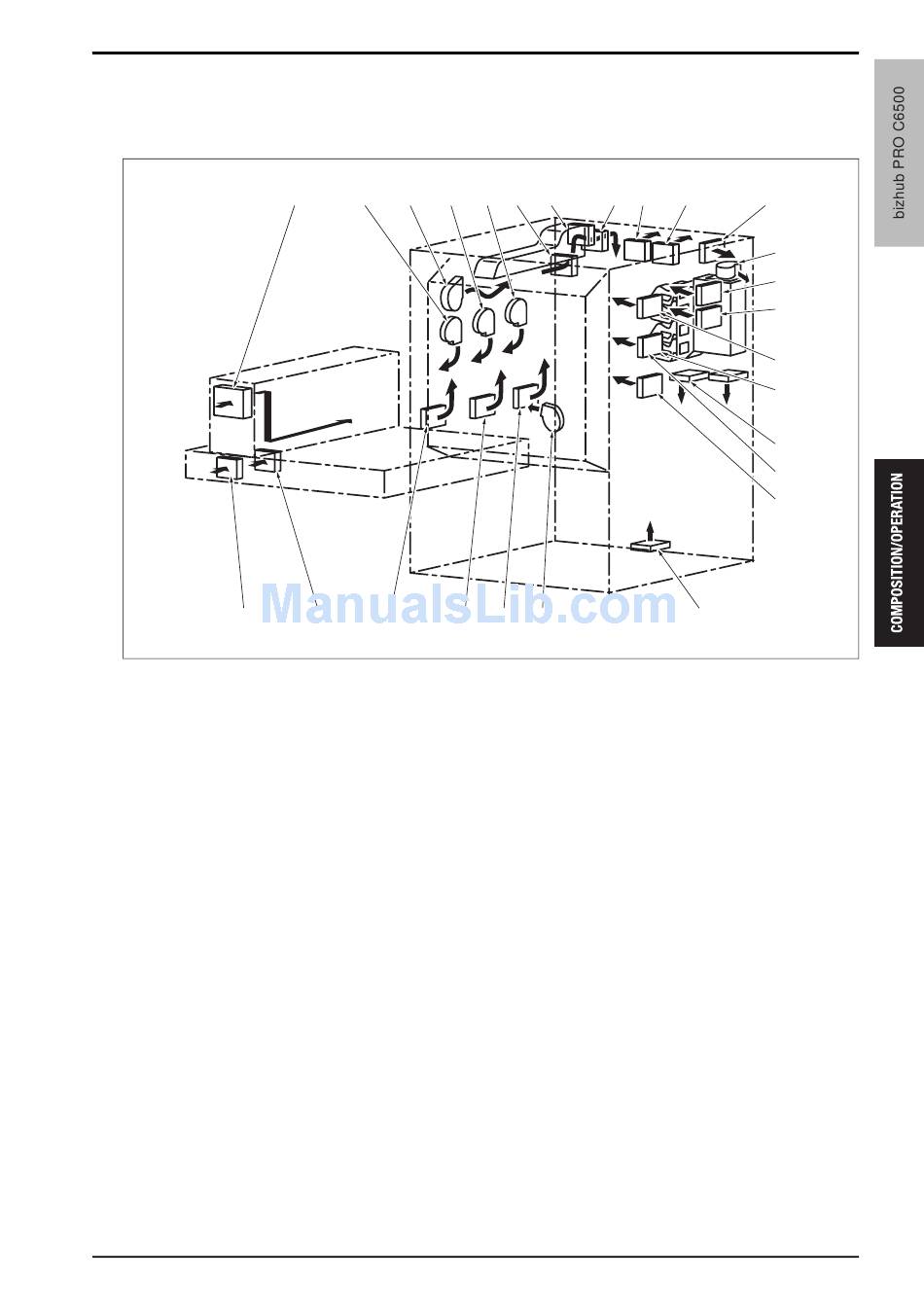

Configuration

[15]
[1] Main unit fan (M47)
[2] Developing fan /1 (M45)
[3] Developing fan /2 (M46)
[4] Writing suction fan /1 (M43)
[5] IPB fan /2 (M25)
[6] IPB fan /1 (M24)
[7] Developing fan /3 (M64)
[8] Writing suction fan /2 (M44)
[9] Power supply fan (M42)
[10] Charging air suction fan (M48)
[11] Tucking fan /1 (M26)
[12] Tucking fan /2 (M27)
[13] Tucking fan /3 (M28)
[16] [17] [18] [19]
[14] [13] [12] [11] [10]
[20] [21] [22] [23] [24]
[14] ADU fan /2 (M67)
[15] ADU fan /1 (M66)
[16] Fusing fan /Lw (M65)
[17] Paper exit fan /1 (M61)
[18] Transfer belt fan (M11)
[19] Paper exit fan /2 (M62)
[20] Paper exit fan /3 (M63)
[21] Fusing belt ventilation fan (M10)
[22] Deodorization fan (M36)
[23] Fusing ventilation fan (M37)
[24] Drum fan /1 (M12)
[25] Drum fan /2 (M13)
[26] Scanner fan (M2)
25. OTHER CONTROLS
[25] [26]
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
a03ut2c095ca
