8.3.3 Tri-folding gate control
The tri-folding gate switches between the folding/saddle stitching path and the tri-folding path. The tri-folding
gate solenoid (SD6) drives the tri-folding gate.
A. Tri-folding 2nd folding operation

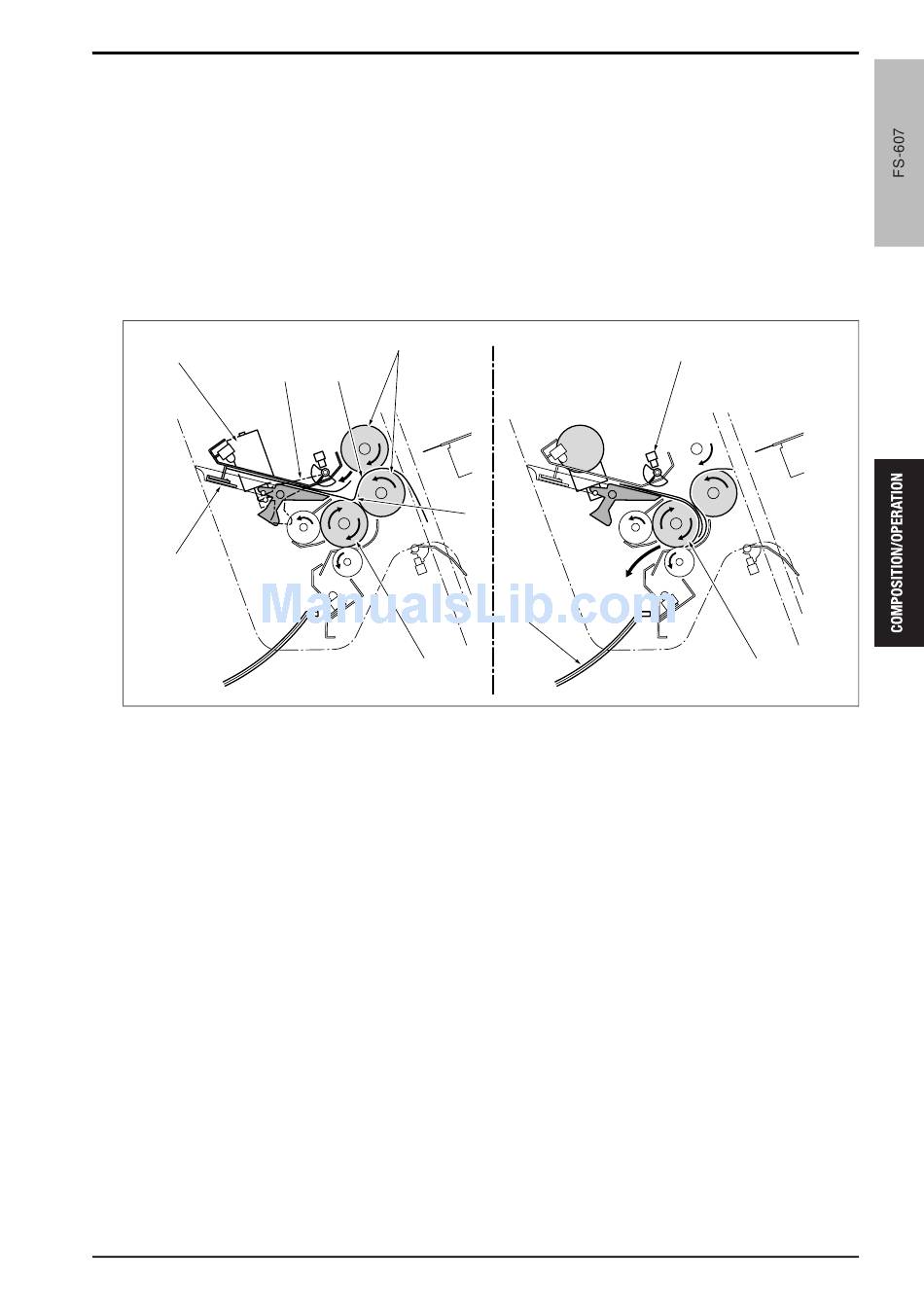

The tri-folding gate solenoid (SD6) [5] drives the tri-folding gate [6] to switch the paper path to the tri-folding path
for leading the paper exited from the folding roller [1] to the tri-folding stopper [4].
To perform the 2nd folding, the loop [2] formed when the paper contacts with the tri-folding stopper are drawn
between the folding roller and the tri-folding roller [3]. Then the paper is exited to the booklet tray [8].
The position of the tri-folding stopper determines the folding position in the 2nd folding.
[5]
[4]
[1] Folding roller
[2] Loop
[3] Tri-folding roller
[4] Tri-folding stopper
[5] Tri-folding gate solenoid (SD6)
B. Tri-folding gate control
After the saddle stitching stopper stops at the tri-folding position, the tri-folding gate solenoid (SD6) [5] turns ON
and drive the tri-folding gate [6] to switch the paper path to the tri-folding stopper.
SD6 turns OFF after a specified period of time since the folding paper exit sensor (PS25) [9] detects the trailing
edge of the paper bundle.
[1]
[6] [7]
[3]
8. FOLDING/SADDLE STITCHING/TRI-FOLDING SECTION
[2]
[8]
[6] Tri-folding gate
[7] Paper
[8] Booklet tray
[9] Folding paper exit sensor (PS25)
