5. CONVEYANCE SECTION
B. Double-sided mode
(1) Operation

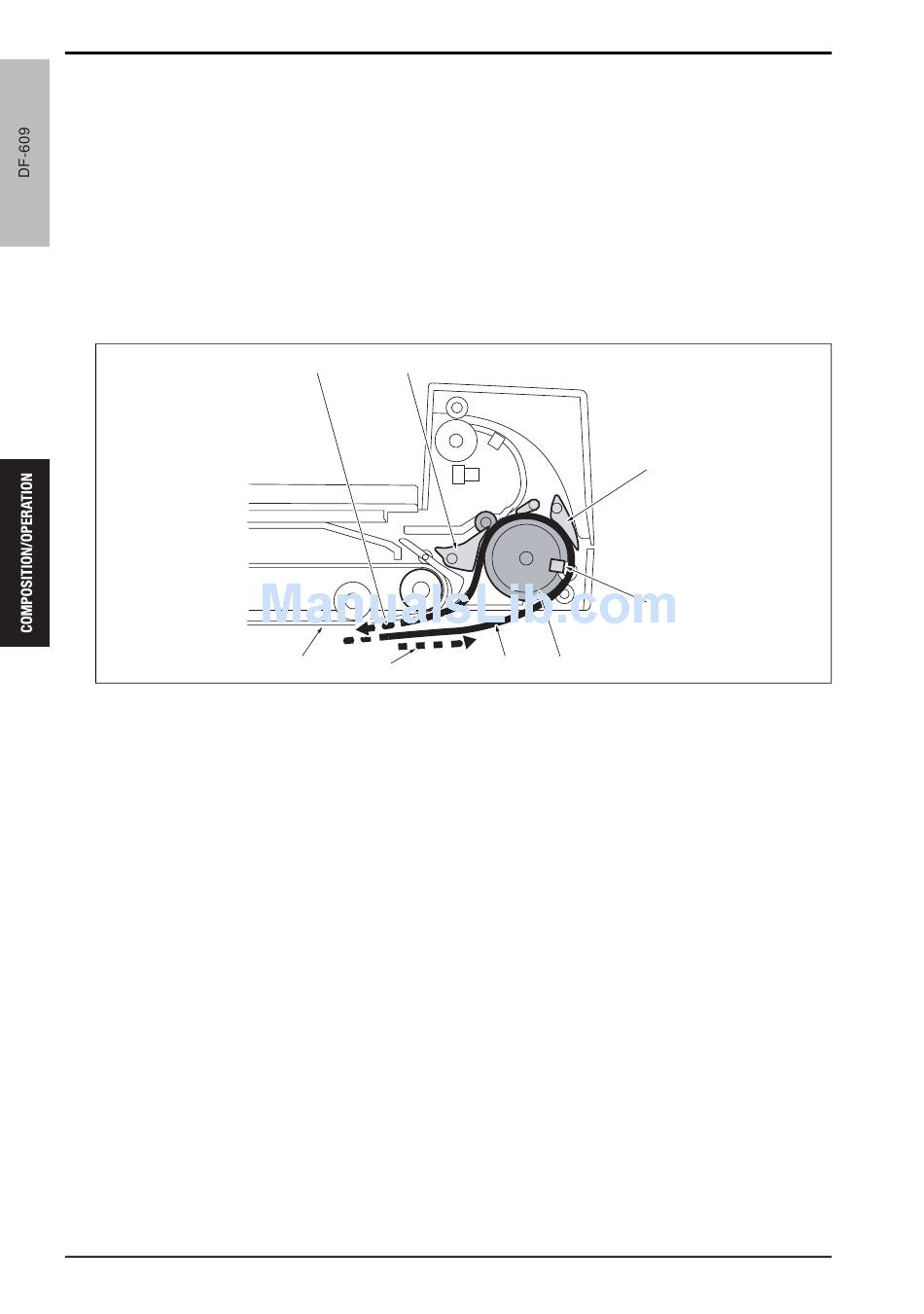

• The paper path of the reverse paper exit section is created by the paper exit gate [1] and the reverse gate
[8]. Both gates are set by turning off the paper exit solenoid (SD301) and turning on the reverse solenoid
(SD302).
1.
The front side scan is performed in the same operating method as in the single-sided mode.
2.
The original is conveyed to the reverse/paper exit section [5] to perform back side scan by driving the
reverse/paper exit motor (M303) and the conveyance motor (M302). At this time, the leading edge of the
original (Back side) that is conveyed in reverse [7] overlaps with the rear end of the original (Front side) [4] on
the right side of the conveyance belt [6] near the reverse/paper exit section.
[1] Paper exit gate
[2] Reverse sensor (PS305)
[3] Reverse roller
[4] Rear end of the original (Front side)
[5] Conveyance direction to the reverse/paper
exit section
18
[7] [8]
[6] [5]
Theory of Operation Ver1.0 Sep.2006
[1]
[2]
[4] [3]
[6] Conveyance belt
[7] Pushing direction of the scanning section
(Back side)
[8] Reverse gate
a052t2c010ca
