8. BUNDLE PROCESSING SECTION
E. Bundle exit paper full control
The bundle tray paper full sensor (PS61) [1] detects the bundle exit paper full. The main body displays the mes-
sage on its operation panel when the paper full is detected.

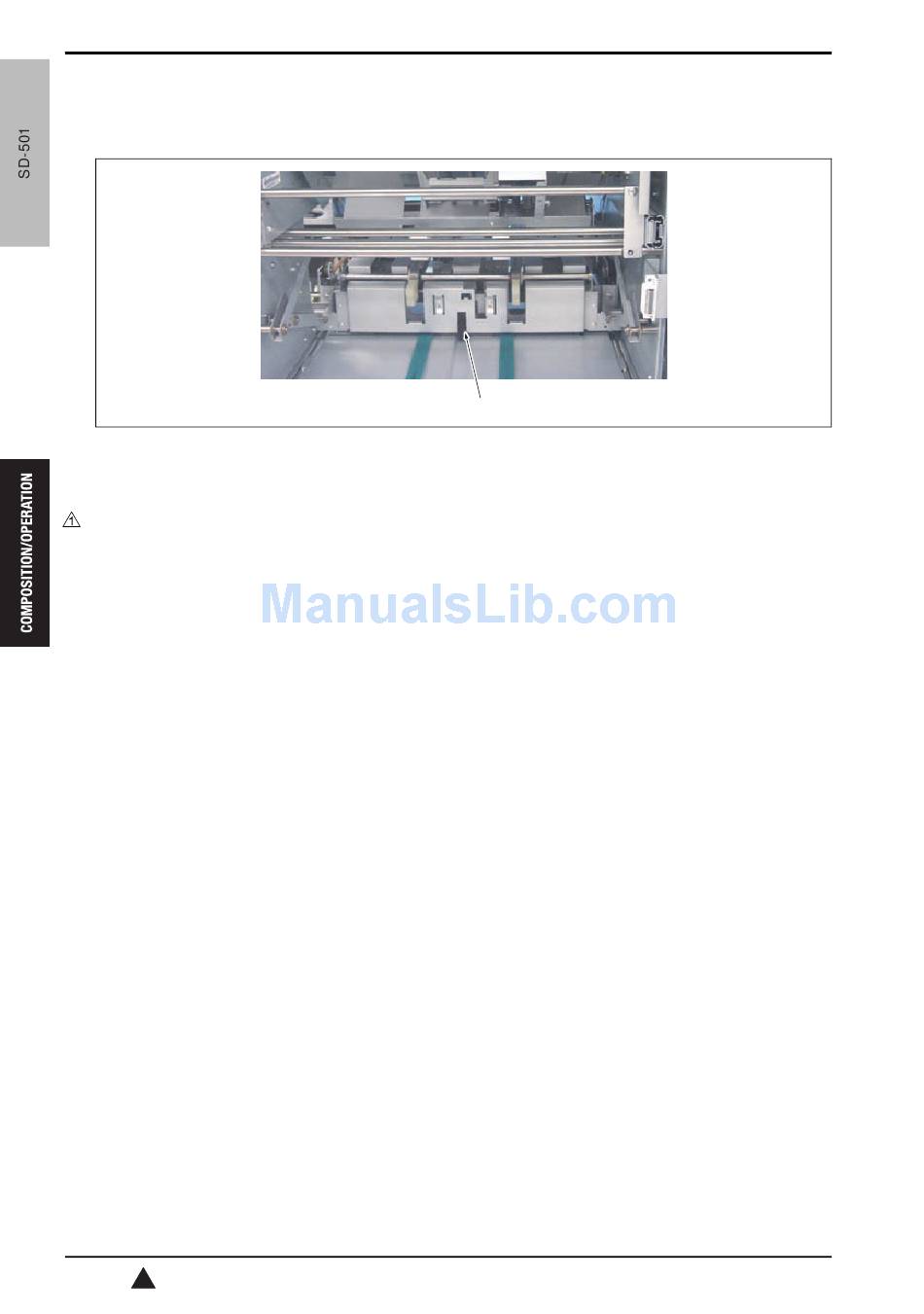

[1] Bundle tray paper full sensor (PS61)
F. Trimmer scraps full control
The trimmer scraps full sensor (PS41) detects the paper scraps full of the scraps box. When the PS 41 is turned
on for three seconds after the paper exit operation driven by the (M5) is finished, the scraps is detected as full.
The main body displays the message on its operation panel when the paper scraps full is detected.
G. Trimmer scraps tray set detection
The scraps box set sensor (PS40) detects whether the scraps box is set or not. The main body displays the
message on its operation panel when the scraps box is not set.
106
1
Theory of Operation Ver2.0 Sep.2006
[1]
