Gate Drive/Subtray Pressure/Release Drive - Develop ineo+ 6500 Service Manual

Theory of Operation Ver2.0 Sep.2006
4.2.3

Gate drive/subtray pressure/release drive

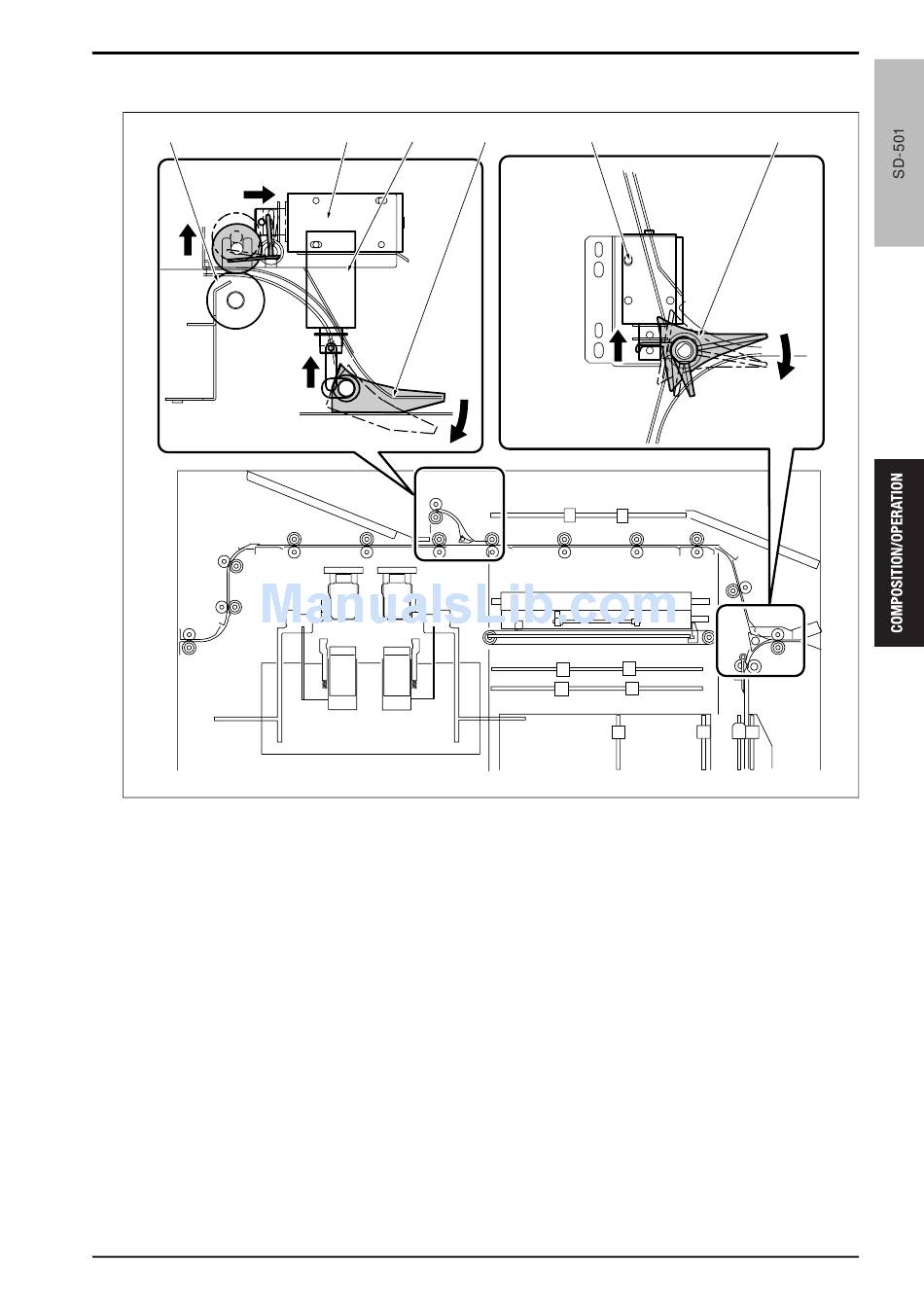

[1]
[1] Subtray exit roller
[2] Roller release solenoid /4 (SD4)
[3] Horizontal conveyance gate solenoid (SD3)
[2] [3] [4]
4. HORIZONTAL CONVEYANCE SECTION
[5]
[4] Horizontal conveyance gate
[5] Entrance gate solenoid (SD1)
[6] Entrance gate
[6]
