Develop ineo+ 6500 Service Manual page 564

Theory of Operation Ver2.0 Sep.2006

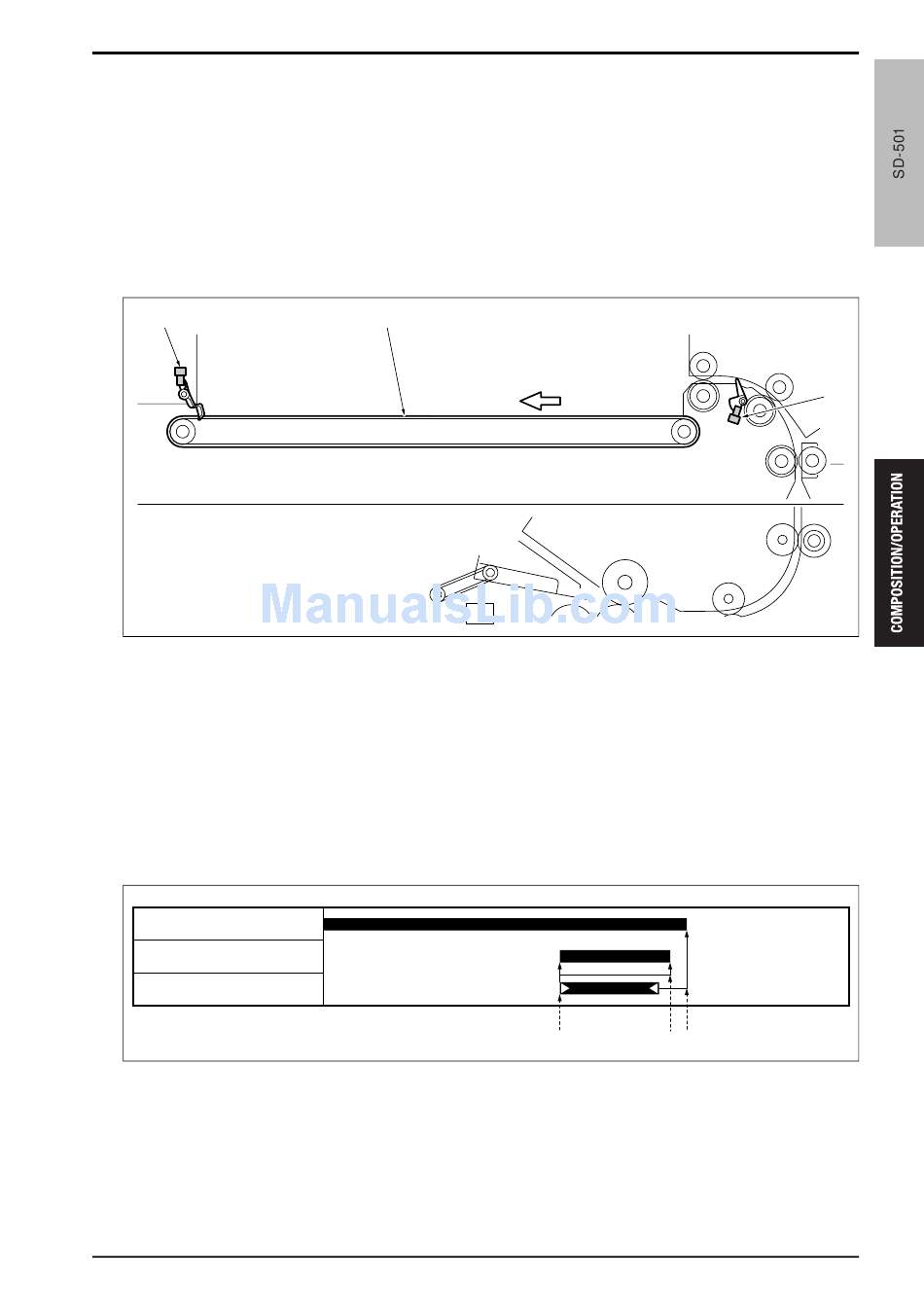

C. Tri-folding exit control
(1) Operation
In the multi letter folding exit, the driving force of the folding conveyance motor (M4) is transmitted via the tri-fold-
ing exit clutch (CL1).
CL1 turns ON and the exit belt [4] is driven approximately 7 mm to convey the paper to the front side for every
paper exit.
The tri-folding paper full sensor (PS10) [3] detects the paper when it is reached at the front, and then the main
body displays the message on its operation panel.
[3]
[1] Tri-folding exit sensor (PS9)
[2] Right side view
(2) Control
The tri-folding exit clutch (CL1) turns ON and drives the exit belt [1] and stops it [2] after a specified period of
time when the tri-folding exit sensor (PS9) detects the leading edge of paper.
The folding conveyance motor (M4) stops [3] after a specified period of time since PS9 detects the trailing edge
of paper.
Folding conveyance motor (M4)
Tri-folding exit clutch (CL1)
Tri-folding exit sensor (PS9)
[1] Exit belt driven
[2] Exit belt stopped
[4]
[2]
[3]
[4]
[1]
[3]
6. FOLDING SECTION
Tri-folding paper full sensor (PS10)
Exit belt
[2] [3]
Folding conveyance motor (M4) stopped
[1]
15ant2c081na
15ant2c082na
43
