Bundle Press Control - Develop ineo+ 6500 Service Manual

Theory of Operation Ver2.0 Sep.2006
8.3.3

Bundle press control

The bundle press is the mechanism to hold the paper during trim operation to prevent the trimming skew after
the paper registration operation.

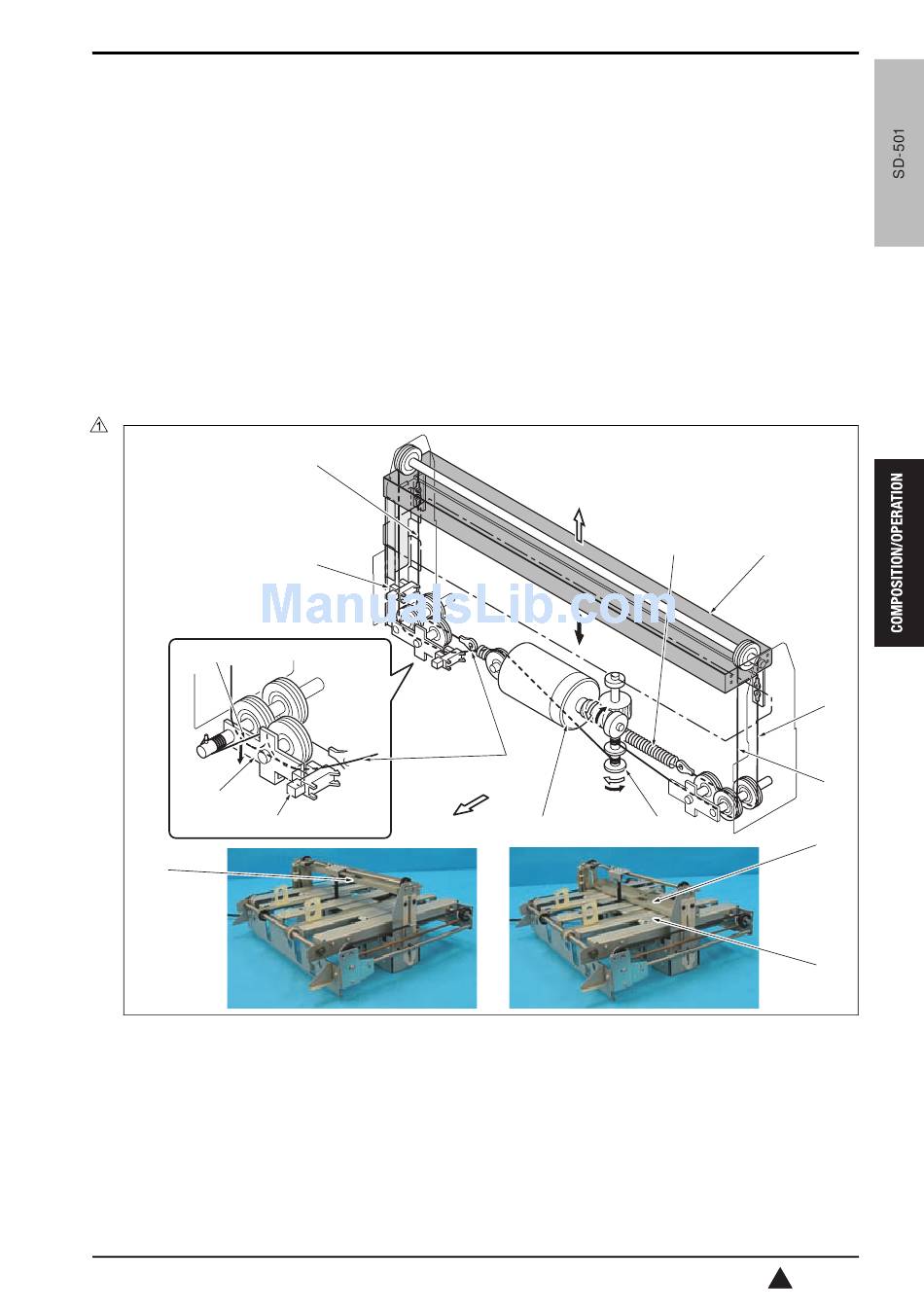

A. Mechanism
The bundle press plates /Up [1] and /Lw [15] hold the paper. The bundle press plate /Up is pulled to the bundle
press plate /Lw [15] (to the direction to hold and press the paper) by the spring [13] via the press wires /Rt [2]
and /Lt [12]. The bundle press plate /UP [1] moves down by the spring [13] when the wire winding shaft [4] is
rotated by the bundle press motor (M23) [5] and the release wires /Rt [3] and /Lt [6] are released. The force of
the spring presses the paper.
When M23 keeps rotating, the press wire /Lt [6] is loosen and the bundle press lower limit sensor (PS47) [8]
turns OFF by the actuator [9] due to the spring [10], and then the paper press position is detected.
The wire winding shaft [4] winds the release wires /Rt [3] and /Lt [6] to move up the bundle press plate /Up [1] for
releasing the press on the paper [16] when M23 rotates in reverse.
The bundle press home sensor (PS37) [11] detects the home position of the bundle press plate /Up [1].
[10]
[9]
[8]
[16]
[1] Bundle press plate /Up
[2] Press wire /Rt
[3] Release wire /Rt
[4] Wire winding shaft
[5] Bundle press motor (M23)
[6] Release wire /Lt
[7] Front side direction
[8] Bundle press lower limit sensor (PS47)
[12]
[11]
[7]
8. BUNDLE PROCESSING SECTION
[13]
[6]
[5] [4]
[9] Actuator
[10] Spring
[11] Bundle press home sensor (PS37)
[12] Press wire /Lt
[13] Spring
[14] Bundle press plate /Up (down)
[15] Bundle press plate /Lw
[16] Bundle press plate /Up (up)
[1]
[2]
[3]
[14]
[15]
15ant2c059nb
