7. STAPLER SECTION
7.3

Operation

7.3.1 Stapler movement control
The staplers move in the horizontal direction for adjusting their distance. The stapler at the rear also rotates. The
movement is made according to the stapling mode.
A. Horizontal movement operation

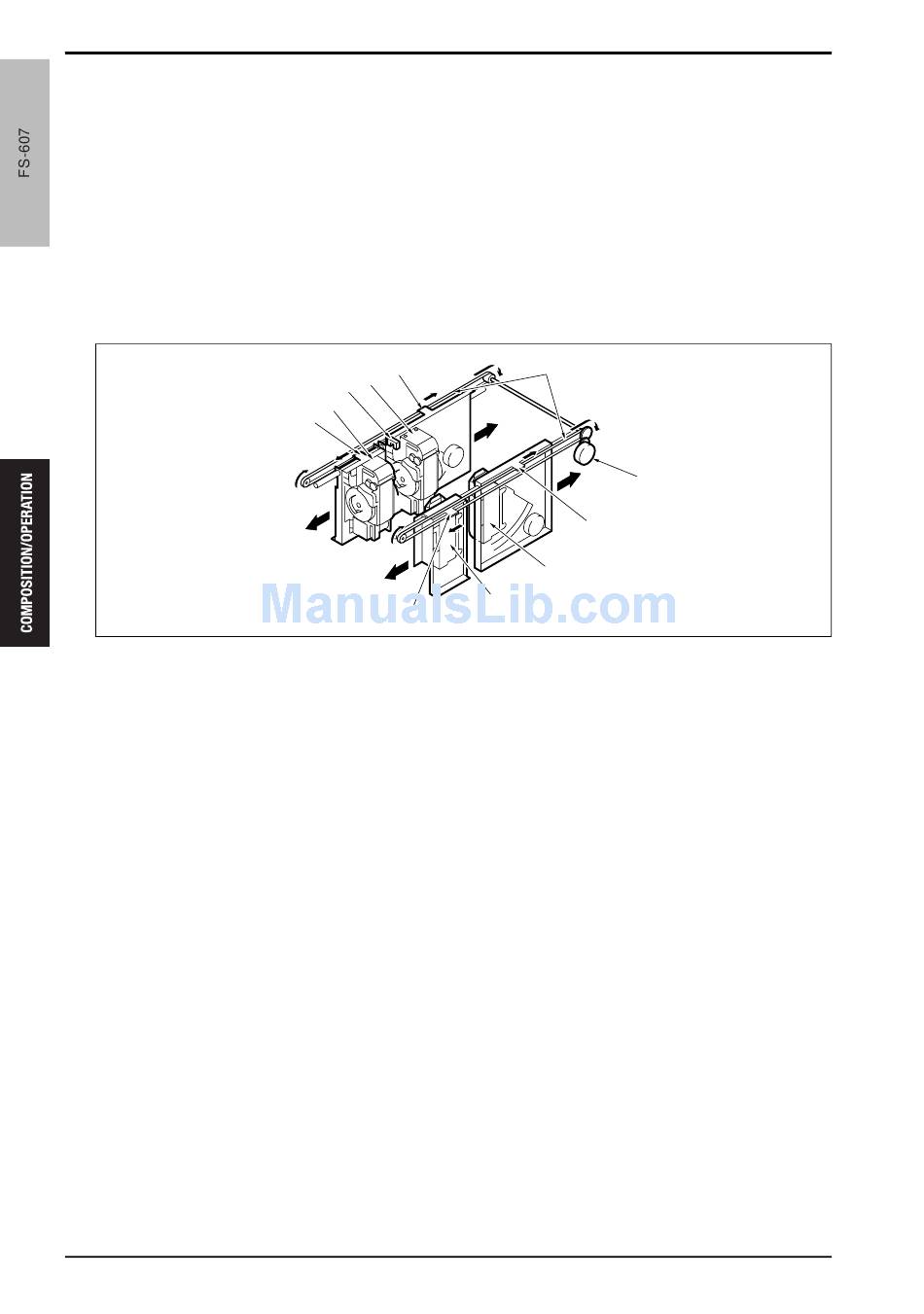

The stapler movement motor (M11) [1] moves the staplers in the horizontal direction.
The stapler /Rr [8] and the clincher /Rr [3] are mounted at the top [2] of the timing belt [9] and the stapler /Fr [6]
and the clincher /Fr [4] are mounted at the bottom [5] of the timing belt.
The stapler movement home sensor (PS11) [7] detects the distance between the stapler and the clincher.
[1] Stapler movement motor (M11)
[2] Upper side of the timing belt
[3] Clincher /Rr
[4] Clincher /Fr
[5] Lower side of the timing belt
46
[2]
[8]
[7]
[6]
[5]
[5]
Theory of Operation Ver1.0 Sep.2006
[9]
[1]
[2]
[3]
[4]
[6] Stapler /Fr
[7] Stapler movement home sensor (PS11)
[8] Stapler /Rr
[9] Timing belt
