Operation

4.3.1

Conveyance path switching

The conveyance path of the paper that has been conveyed to the entrance guide plate varies according to the
presence of a punch or folding, the tray into which paper is exited, and the paper size. The switching of the con-
veyance path is made by the entrance gate, the sub tray gate, the S size gate, the L size gate and the folding
gate. (For the folding gate, see
A. Entrance gate
Switching is made between the straight conveyance and the punch/folding conveyance by the entrance gate
solenoid (SD1). In the case of the straight conveyance, the SD1 remains OFF.
When conveying the 1st sheet of paper for punching/folding operation, SD1 is energized a specified period of
time after the start button is turned ON.
For the 2nd and the succeeding sheets of paper, SD1 is energized in accord with the conveyance direction of
the succeeding page after the preceding page passes through the FD entrance sensor (PS1).

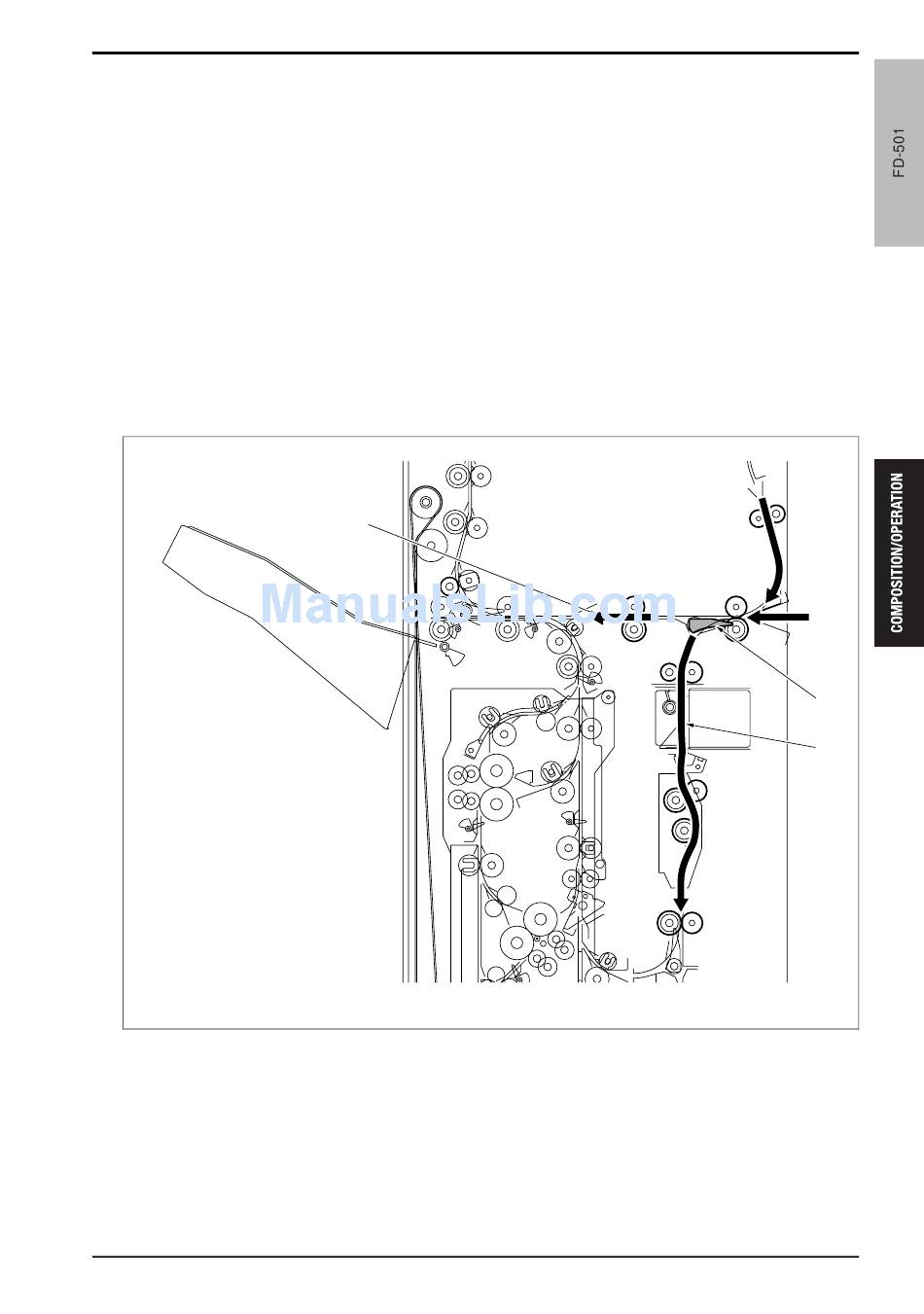

[1] Entrance gate
[2] Punch mode or folding mode
"6. FOLDING CONVEYANCE
[3]
4. CONVEYANCE SECTION
SECTION.")
[3] Straight mode
[1]
[2]
