Operation; Conveyance Control - Develop ineo+ 6500 Service Manual

Theory of Operation Ver1.0 Sep.2006

20.3 Operation

20.3.1

Conveyance control

A. Reverse/paper exit switch control
• The paper exit path for paper conveyed from the fusing section is switched by the paper exit gate.
• The paper exit gate is driven by the paper exit solenoid (SD4).
• Switching the paper exit path with the gate is made according to the print mode and the paper exit type.
B. Conveyance path

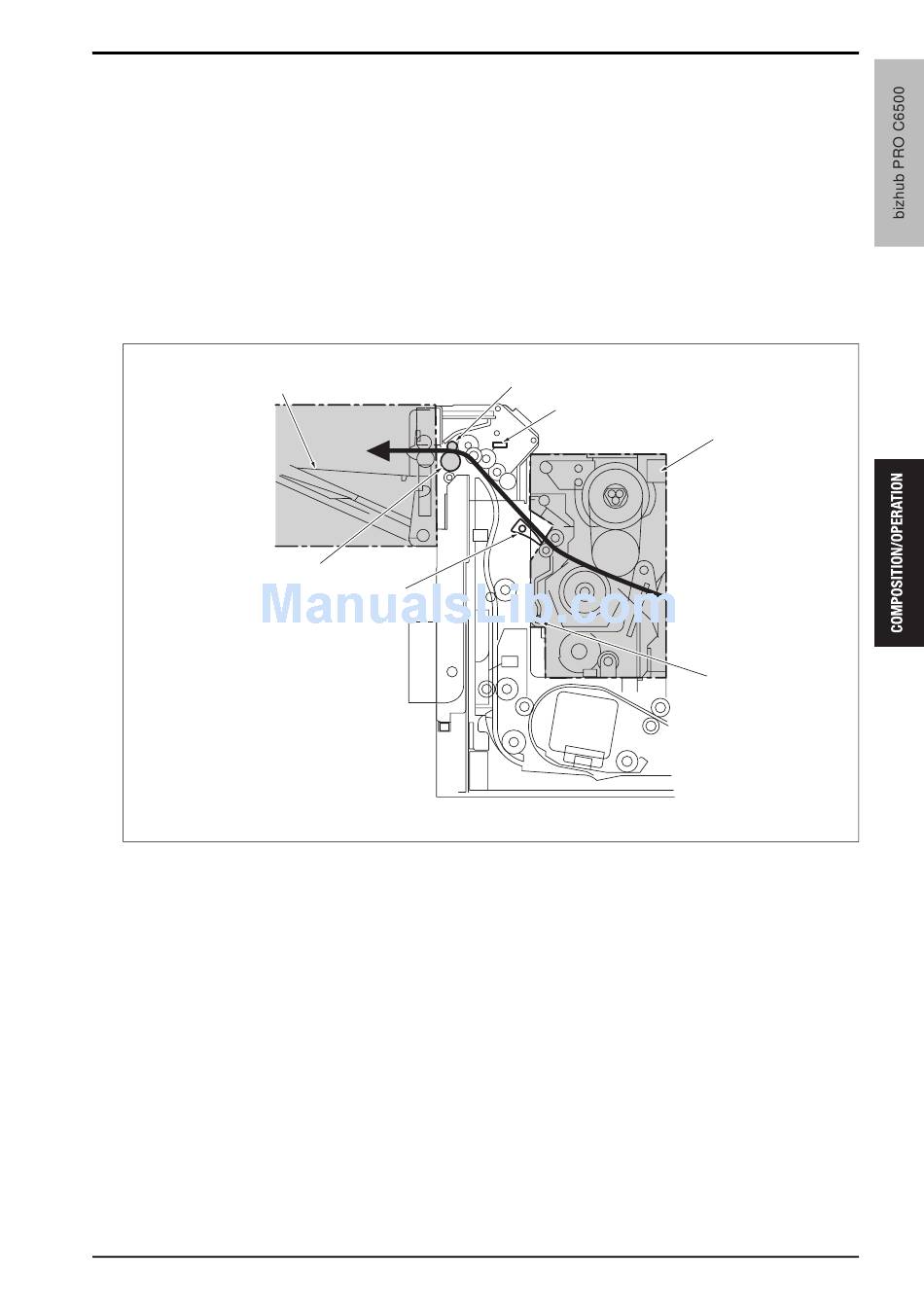

(1) Straight paper exit
• Paper is exited face-up after printed on the one side or printed on the both sides.
[1] Fusing section
[2] Fusing paper exit sensor (PS17)
[3] Reverse gate
[4] Paper exit decurler roller
[5]
[4]
[3]
20. REVERSE/PAPER EXIT SECTION
[6]
[7]
[5] OT-502 (Option)
[6] Paper exit roller
[7] Paper exit sensor (PS13)
[1]
[2]
a03ut2c072ca
95
