8. WRITE SECTION
C. Procedure for the color registration control operation
1.

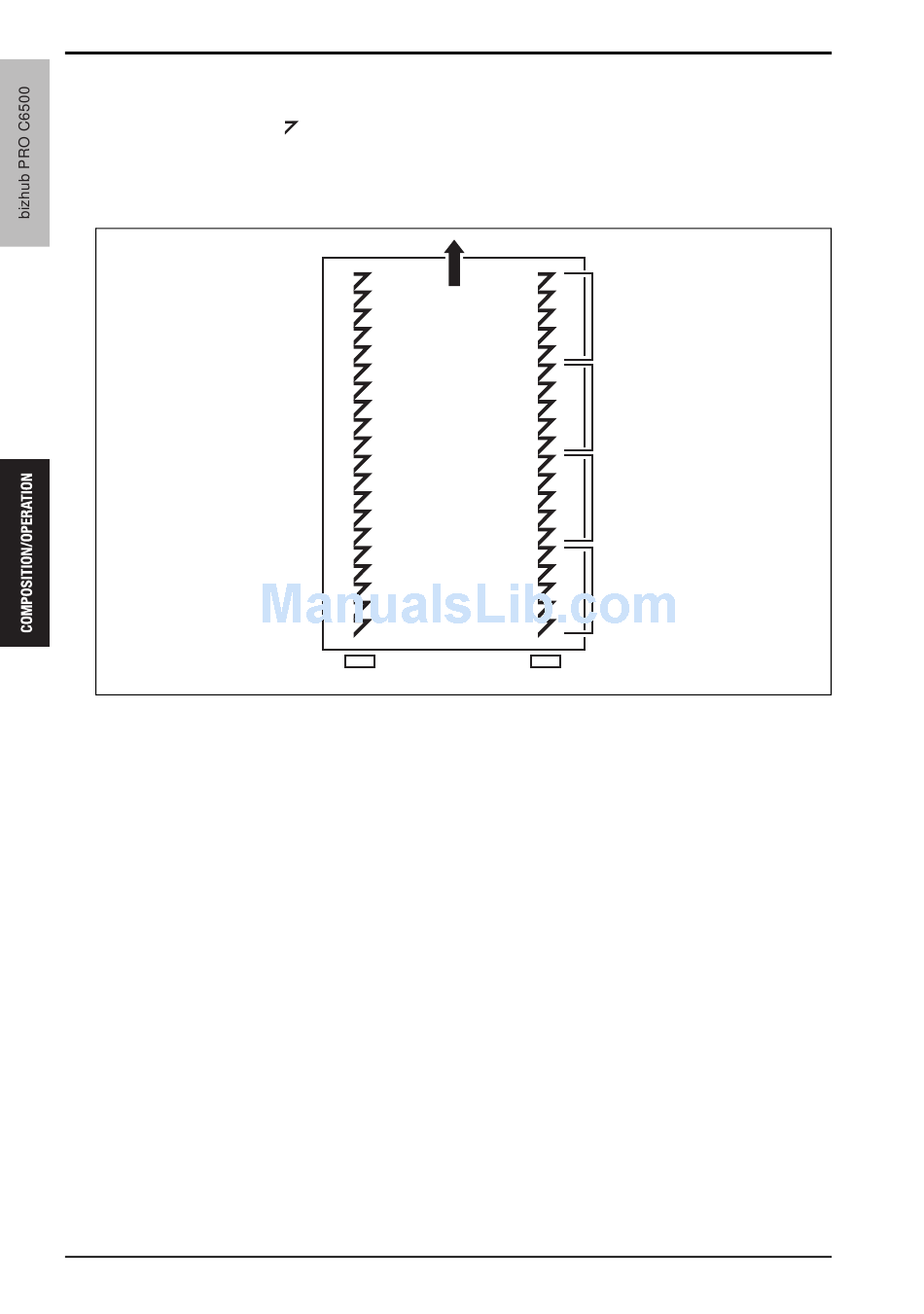

Transferring the color registration mark
The color registration mark "
belt in that order forming two marks per line, one each on the left and right sides on the belt. The left and right
positions of the marks on the belt correspond to the positions of the color registration sensors; /Rr (PS9) and /Fr
(PS8).
[1] Color registration mark /K
[2] Color registration mark /C
[3] Color registration mark /M
[4] Color registration mark /Y
36
" of each black, cyan, magenta, and yellow colors are transferred on the transfer
[7]
[6]
Theory of Operation Ver1.0 Sep.2006
[1]
[2]
[3]
[4]
[5]
[5] Color registration sensor /Fr (PS8)
[6] Color registration sensor /Rr (PS9)
[7] Transferring direction
a03ut2c109ca
