Theory of Operation Ver2.0 Sep.2006
5.3

Operation

5.3.1

Paper overlap control

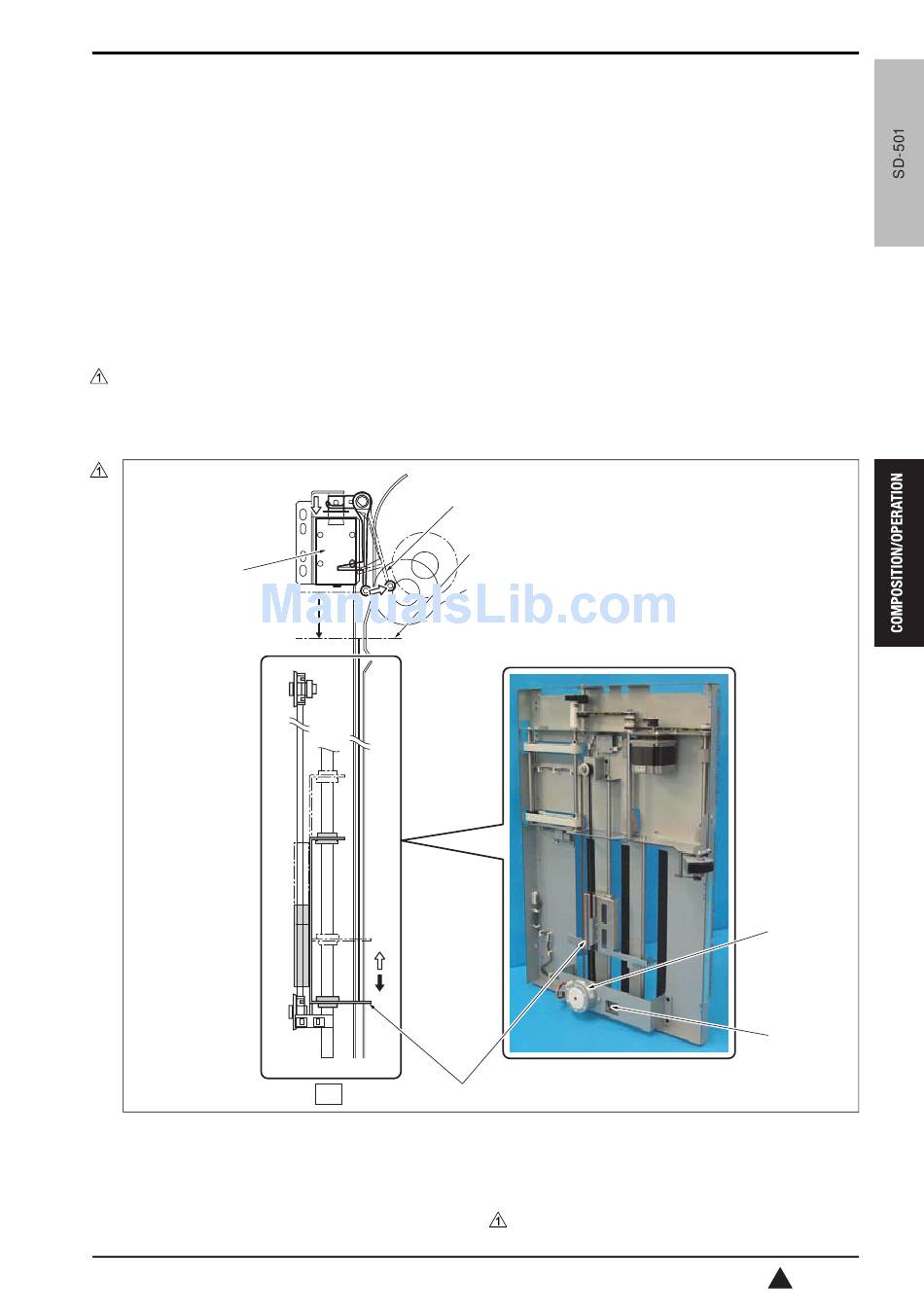

A. Overlap mechanism
When the folding operation is conducted for more than one sheet of paper, they are overlapped in the right angle
conveyance section, and then conveyed to the folding section.
The overlap mechanism is the mechanism to overlap the paper in adequate paper conveyance order. The oper-
ation is conducted by the right angle conveyance gate [1] driven by the right angle conveyance gate solenoid
(SD2) [7] and the overlap stopper [5] driven by the overlap motor (M13) [3]. The overlap home sensor (PS17) [4]
detects the home position of the overlap stopper.
The overlap stopper [5] is positioned at the position where the trailing edge of paper [2] is positioned 20 mm
below from the right angle conveyance gate [1] in accordance with the paper size when it stands by for the
paper.
When the SD2 is turned off, the paper from the main body is conveyed into between the right-angle conveyance
gate [1] and the overlap assist roller [8]. Then the paper is conveyed further by the overlap assist roller [8] driven
by the entrance conveyance motor (M1) and stopped by the overlap stopper.
[7]
[1] Right angle conveyance gate
[2] Trailing edge of paper
[3] Overlap motor (M13)
[4] Overlap home sensor (PS17)
[1]
[2]
[8]
[6] [5]
5. RIGHT ANGLE CONVEYANCE SECTION
[5] Overlap stopper
[6] Front side view
[7] Right angle conveyance gate solenoid (SD2)
[8] Overlap assist roller
[3]
[4]
15ant2c011nb
