Stapler Control - Develop ineo+ 6500 Service Manual

Theory of Operation Ver1.0 Sep.2006
7.3.2

Stapler control

The stapling operation is performed by the stapler motors /Rr (M9) and /Fr (M14) and the clincher motors /Rr
(M10) and /Fr (M15).

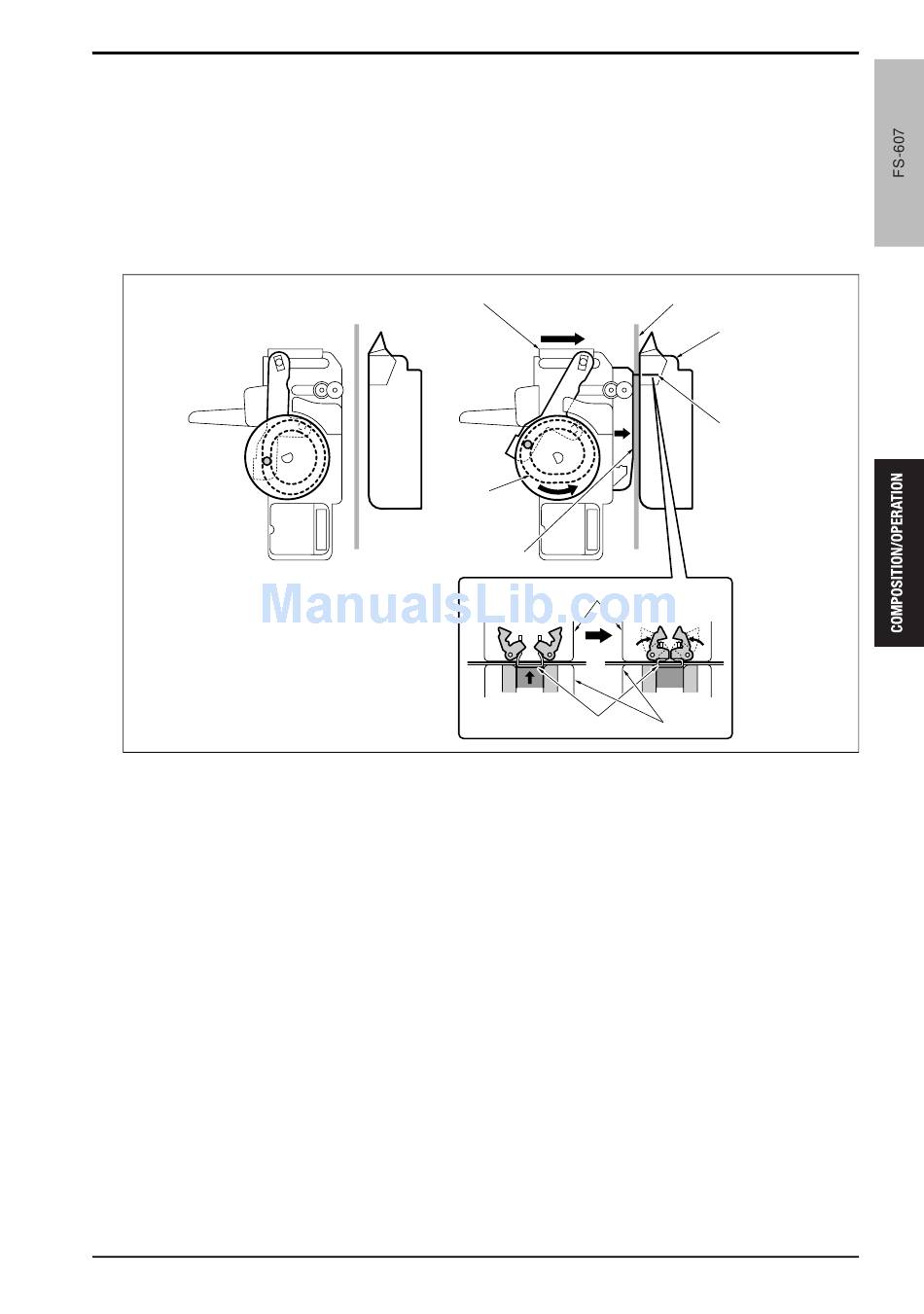

A. Stapling operation
In the stapling operation, the stapler motors /Rr (M9) and /Fr (M14) in the staplers /Rr and /Fr [6] push out the
paper press section [4] to the clinchers [2] by the cam mechanism [5] to hold the paper [1] and punch out the
staples [3]. Then, the clincher motors /Rr (M10) and /Fr (M15) in the staplers /Rr and /Fr bend the staples.
[1] Paper
[2] Clincher
[3] Staple
[6]
[5]
[4]
[2]
[3]
[4] Paper press section
[5] Cam mechanism
[6] Staplers /Rr and /Fr
7. STAPLER SECTION
[1]
[2]
[3]
[6]
15jmt2c018na
49
