7. HT-504 (OPTIONAL)
7.2.2

AC power control

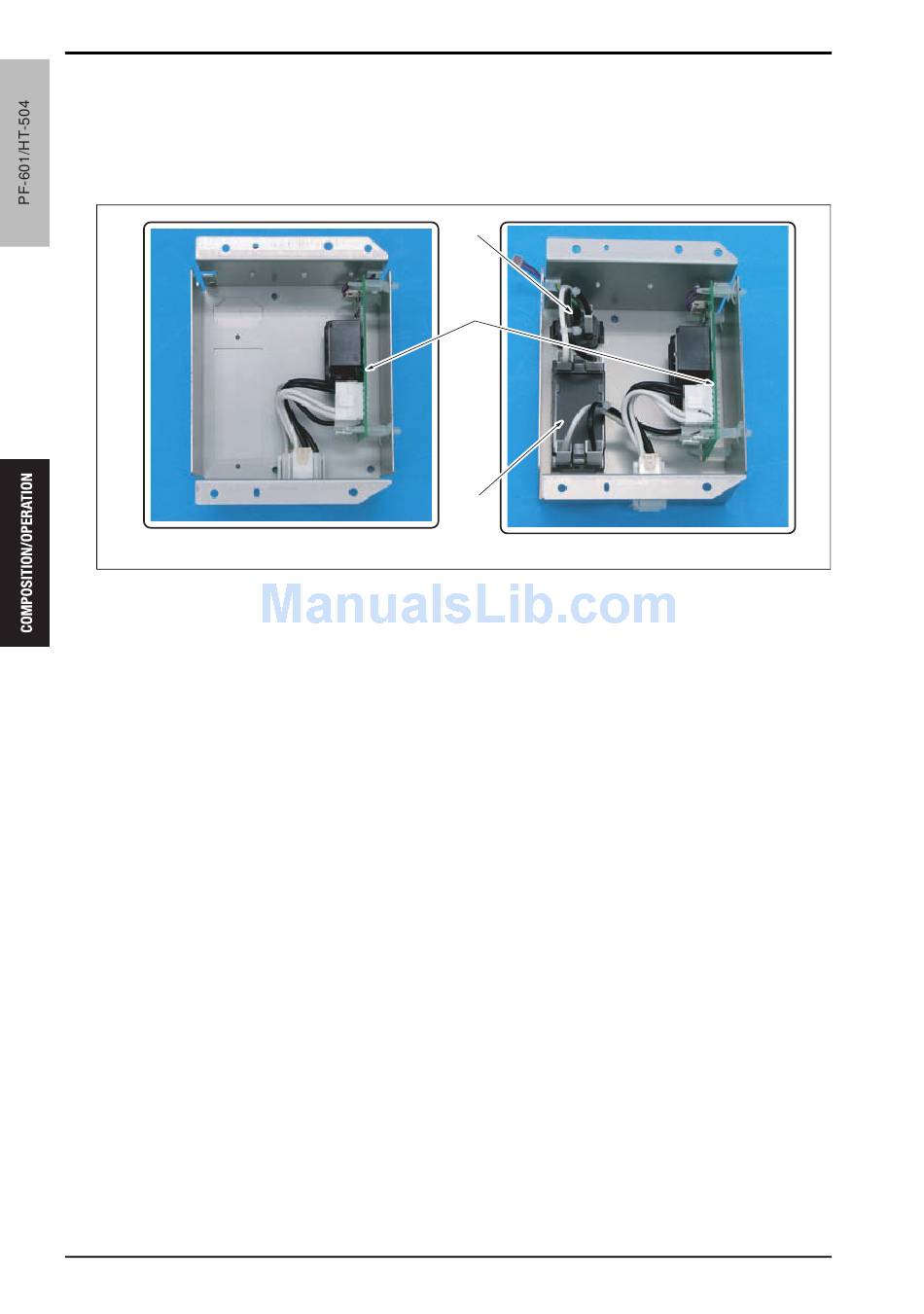

• When the temperature sensor in the dehumidifier fan heater unit detects an error, a relay in the AC board [3]
is cut off to prevent abnormal temperature from occurring.
• AC voltage is supplied either from the main body [1] or external [2]. Parts whose voltage is supplied from
external are equipped with an inlet [4] and a circuit breaker switch [5] in the power supply unit.
[1] The AC voltage supplied from the main
body
[2] The AC voltage supplied from external
30
[1]
Theory of Operation Ver1.0 Sep.2006
[4]
[3]
[5]
[3] AC drive board (ACDB)
[4] Inlet
[5] Circuit breaker switch
[2]
a03xt2e001ca
