Filter Replacement Assy Ventilation Mechanism; Environment Temperature Detection Assist Mechanism - Develop ineo+ 6500 Service Manual

Theory of Operation Ver1.0 Sep.2006
6.3.2

Filter replacement assy ventilation mechanism

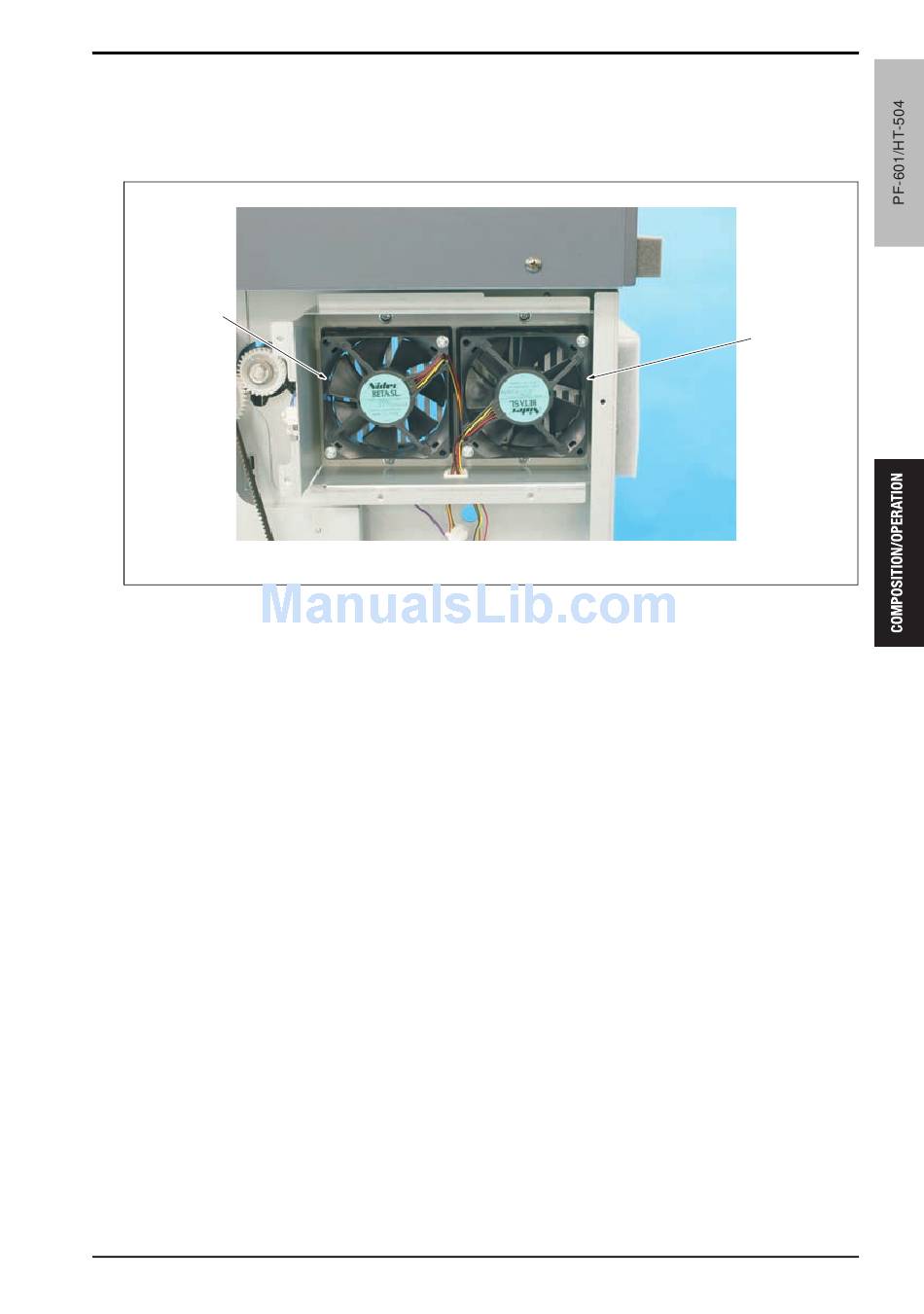

• When PF is installed to the main body, the ventilation fan/1 (FM10) [1] and /2 (FM9) [2] operate to exhaust
heated air around the writing section of the main body.
• When the sub power switch (SW2) of the main body is on, FM10 and FM9 keep turned on.
[1]
[1] Ventilation fan/1 (FM10)
6.3.3

Environment temperature detection assist mechanism

• When PF is installed to the main body, the temperature-humidity sensor (TEM/HUMS) of PF is used to
check the environment temperature and humidity instead of the sensor of the main body since the temper-
ature-humidity sensor/1 (TEM/HUMS/1) on the right side of the main body is disabled.
[2] Ventilation fan/2 (FM9)
6. OTHERS
[2]
a03xt2c019ca
27
