Theory of Operation Ver2.0 Sep.2006
B. Control

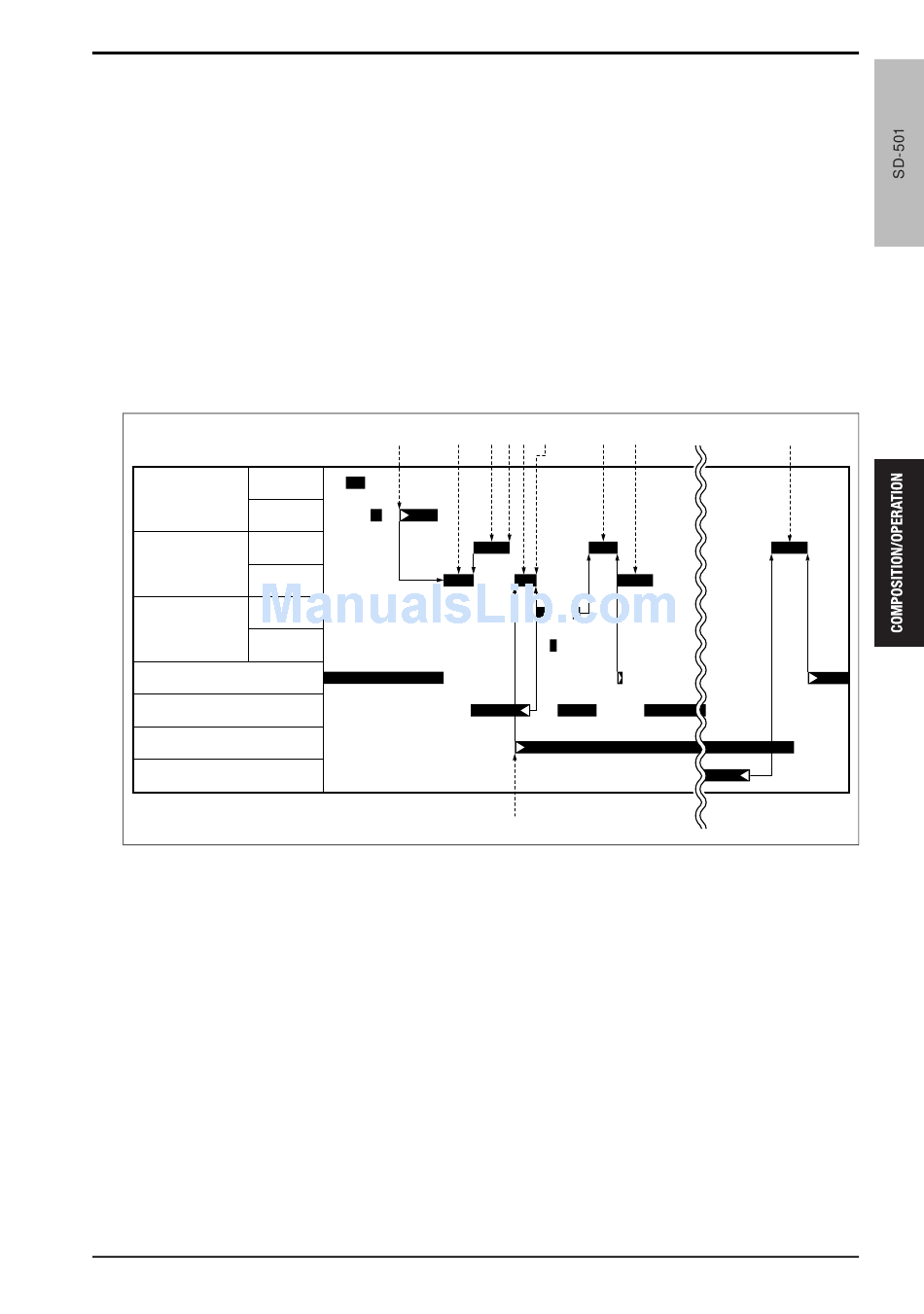

(1) Trimming mode
The bundle press movement motor (M17) rotates in the reverse direction to move the bundle press section to
the paper conveyance position [2] after specified period of time since the bundle clip motor (M11) starts convey-
ing the paper [1]. Then M17 rotates in the forward direction to move the bundle press section to the appropriate
press standby position in accordance with the paper size [3].
M17 rotates in the reverse direction and searches for the press position [6] for the paper when the bundle press
stage up down home sensor (PS35) detects that the bundle press stage has been moved down [5]. M17 stops
the bundle press section at the appropriate position in accordance with the paper size [7] after a specified period
of time since the trimmer registration sensor (PS55) turns OFF.
M17 searches the home position [8] and then moves the bundle press section to the paper trimming position [9]
after a specified period of time since the bundle press motor (M23) completes the paper press operation.
The bundle press section is returned to the home position [10] after a specified period of time since the trimming
operation is completed.
Forward
Bundle clip
motor (M11)
Reverse
Bundle press
Forward
movement
motor (M17) Reverse
Forward
Bundle press
motor (M23)
Reverse
Bundle press movement home sensor (PS36)
Trimmer registration sensor (PS55)
Bundl e press stage up down home sensor (PS35)
Trimmer blade motor (M31)
[1] Conveyed by the bundle clip
[2] Moved to the paper conveyance position
[3] Moved to the press standby position
[4] Home position detected
[5] Bundle press stage moved down
[6] Searching the press position
[1] [2] [3] [4][6] [7]
*
[5]
[7] Stopped at the press position
[8] Searching the home position
[9] Moved to the trimming position
[10] Returning to the home position
* Only for the paper of 297 mm or more
(before folding)
8. BUNDLE PROCESSING SECTION
[8] [9] [10]
15ant2c102na
