6. FOLDING SECTION
6.3.5

Guide shaft control

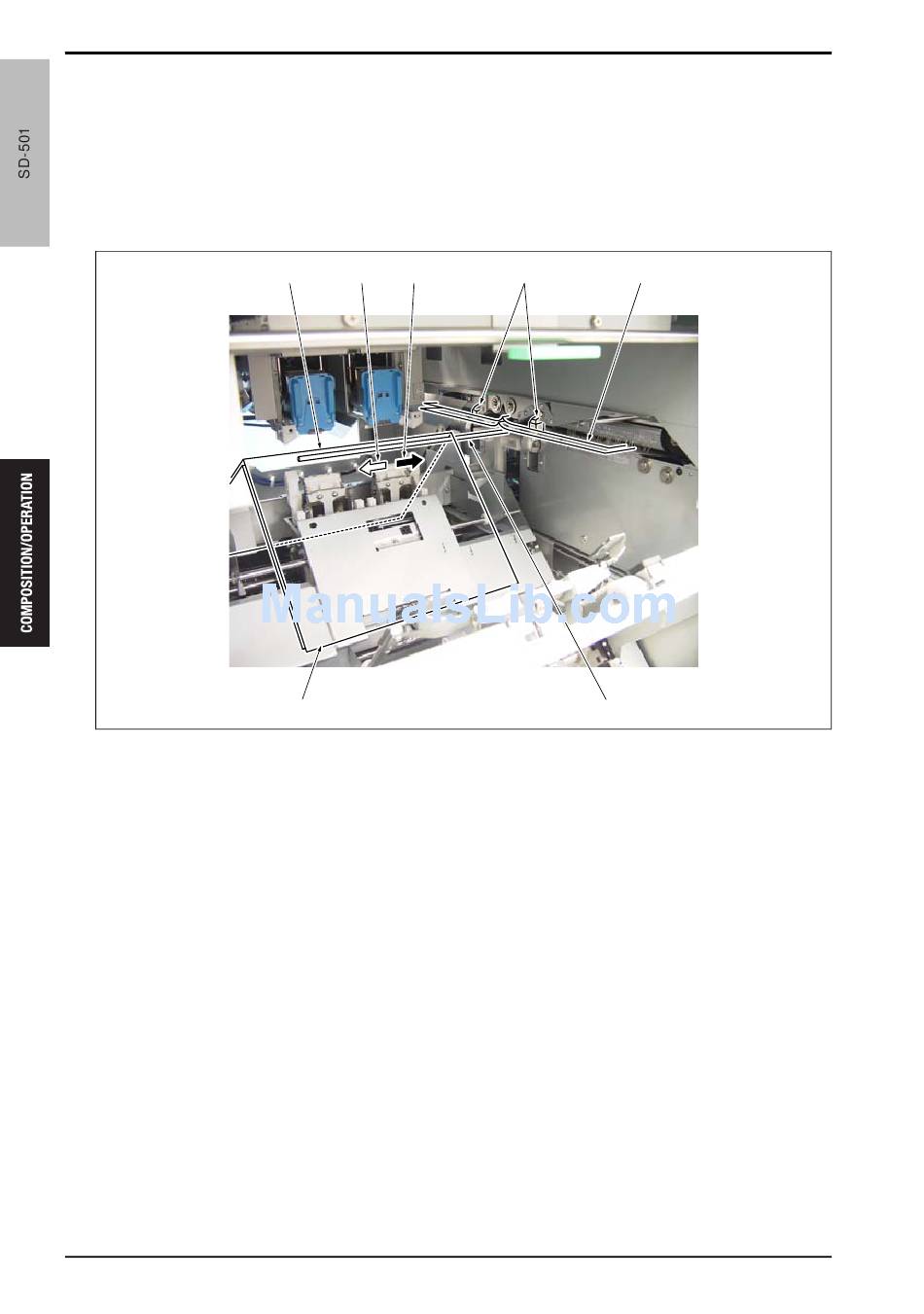

A. Mechanism
The guide shaft [2] holds the fold line [4] from the bottom and makes certain of the stack [3] in the saddle stitch-
ing section when the folding exit claws [7] exit the folded paper [1] to the saddle stitching section.
The guide shaft is projected [5] in sync with the paper exit only when the first folded paper for each set is exited
and put away immediately to the folding section [6]. In the subsequent paper exit, the guide shaft does not oper-
ate because the paper [3] stacked in the saddle stitching section works as the guide.
[1] Folded paper
[2] Guide shaft
[3] Stacked paper
[4] Fold line
48
[4] [5] [6]
[3]
Theory of Operation Ver2.0 Sep.2006
[7] [1]
[2]
[5] Projection direction of the guide shaft
[6] Storage direction of the guide shaft
[7] Folding exit claws
