Develop ineo+ 6500 Service Manual page 186

Theory of Operation Ver1.0 Sep.2006
3.
While operating the reverse conveyance [2], the original is conveyed at low speed [4] after a short pause [3]
and the original is stuck [5] against the positioning plate [1].
4.
The back side scan is performed.
[2]
[3]
[4]
[5]
[1]

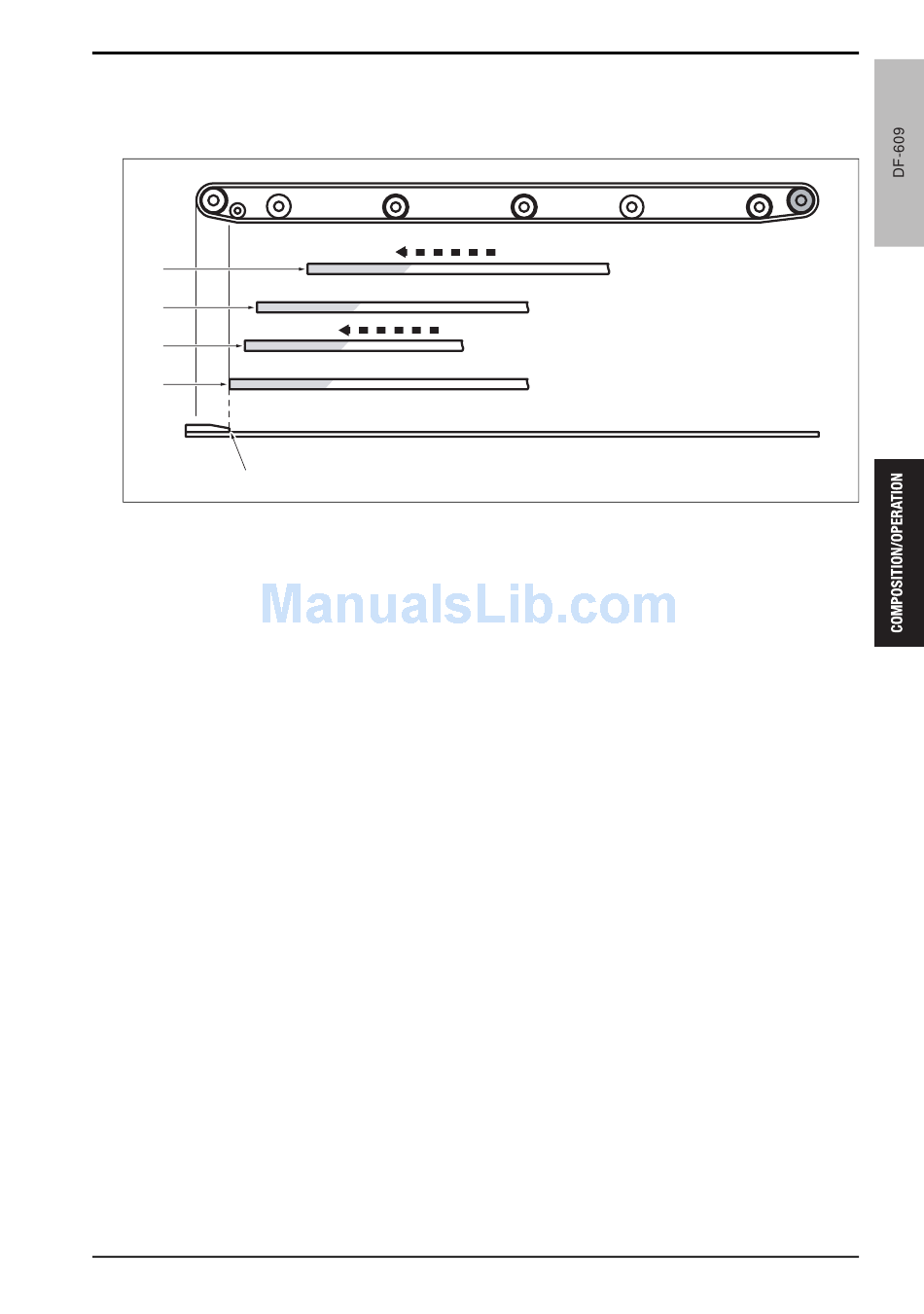

[1] Stuck position
[2] Reverse/paper exit from the reverse section
[3] A pause before being stuck against the
positioning plate
5. CONVEYANCE SECTION
[4] Pushing at low speed (Reverse conveyance)
[5] Positioning completed
a052t2c011ca
19
