Theory of Operation Ver2.0 Sep.2006
8.3

Operation

8.3.1

Sub tray full detection control

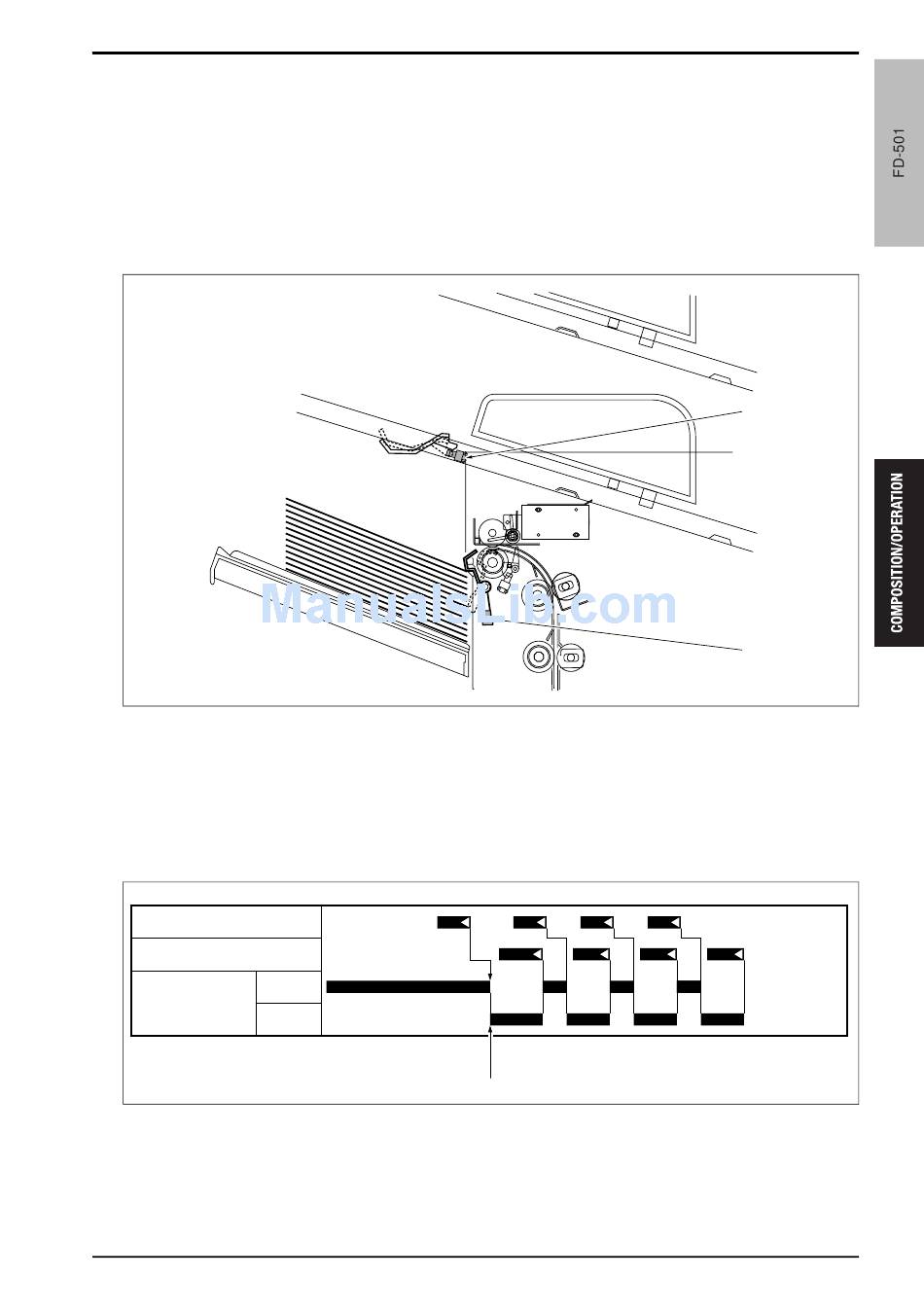

When the paper that has been exited in the sub tray gets to a specified thickness, the sub tray paper full sensor
(PS17) [2] turns OFF, and the "sub tray paper full" information is sent to the main body. Upon receipt of this infor-
mation, the main body displays the message on the operation LCD.
When the folded paper on the sub tray is unfolded and the sub tray paper full sensor (PS46) [1] turns ON, the
"sub tray paper full" information is also sent to the main body.
[1] Sub tray folding paper full sensor (PS46)
8.3.2

Line speed switching

Paper conveyed by the intermediate conveyance motor (M3) is decelerated for each sheet of paper to be exited
into the sub tray.
FD entrance sensor (PS1)
Sub tray paper exit sensor (PS10)
Intermediate
[2]
conveyance
motor (M3)
Deceleration
[1] Deceleration of the intermediate conveyance
motor (M3)
* The time period up to the deceleration can be changed by the system speed on the main body side.
[2] Sub tray paper full sensor (PS17)
[1]
[2] High speed rotation
8. SUB TRAY SECTION
[1]
[2]
fd501to2026c
fd501to2042c
