Remaining Paper Detection Control - Develop ineo+ 6500 Service Manual

Theory of Operation Ver1.0 Sep.2006
4.3.3

Remaining paper detection control

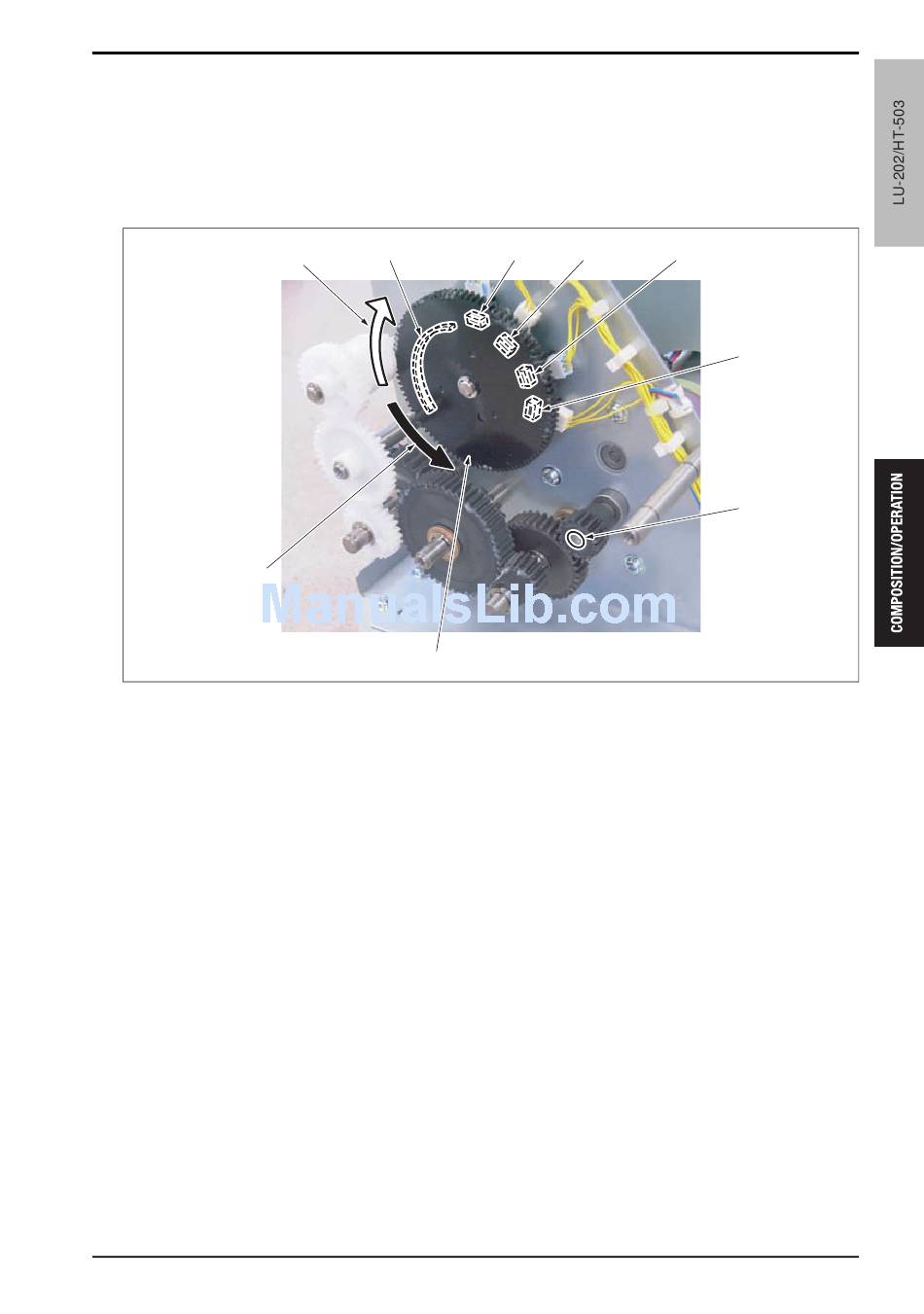

• The remaining amount of paper is detected by the position of the remaining paper detection gear [6] moved
together with the shaft [5] of the paper lift motor (M100) which drives the paper lift plate.
• The remaining paper detection gear incorporates the actuator [9], and the actuator position is detected by
the four remaining paper sensors; /1 (PS102) [1], /2 (PS103) [2], /3 (PS104) [3], and /4 (PS105) [4].
• According to on/off statuses of the four sensors, the remaining amount of paper can be figured out.
[7]
[1] Remaining paper sensor /1 (PS102)
[2] Remaining paper sensor /2 (PS103)
[3] Remaining paper sensor /3 (PS104)
[4] Remaining paper sensor /4 (PS105)
[5] Shaft of the paper lift motor (M100)
[9]
[8]
[6]
[1] [2] [3]
[6] Remaining paper detection gear
[7] Rotational direction when the paper lift plate
goes up
[8] Rotational direction when the paper lift plate
goes down
[9] Actuator
4. PAPER FEED SECTION
[4]
[5]
a03wt2c011ca
