Theory of Operation Ver2.0 Sep.2006

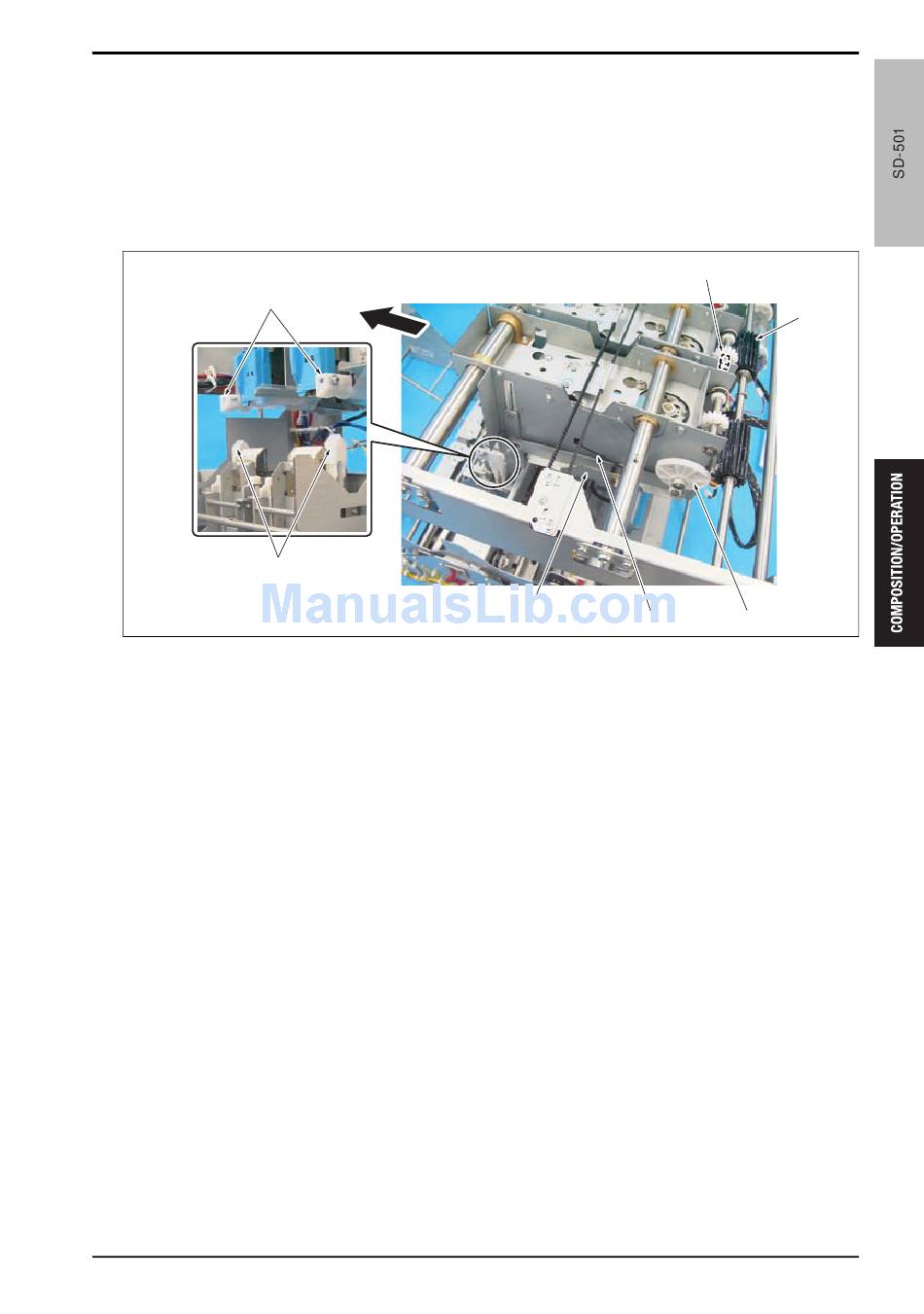

The saddle stitching hold /Up [6] is enforced by the spring [3] toward the saddle stitching hold /Lw [5]. When the
saddle stitching press motor (M21) rotates the eccentric cam [2] via the gear [1], the arm [4] moves along with
the shape of the eccentric cam and the saddle stitching hold /Up is lowered by the spring [3].
The saddle stitching hold /Up [6] holding the center folded paper at its lower position is pushed up to its upper
position by the saddle stitching hold /Lw [5] during the stapling operation. This allows the paper to be moved
from the lower position to the upper position without any misalignment.
The saddle stitching press home sensor (PS27) [8] detects the home position of the eccentric cam.
[6]
[1] Gear
[2] Eccentric cam
[3] Spring
[4] Arm
[7]
[5]
7. SADDLE STITCHING SECTION
[4] [3]
[5] Saddle stitching hold /Lw
[6] Saddle stitching hold /Up
[7] Front side direction
[8] Saddle stitching press home sensor (PS27)
[8]
[1]
[2]
15ant2c040na
63
