25. OTHER CONTROLS
25.3.2

Counter operation

Item
Total counter /1 (TCT/1)
Total counter /2 (TCT/2)
Electrical counter
For key counter (KCT)
Option
*1
Refer to
"10.6 Counter/data"
(See P.314)
[1]
Total counter /1 (TCT/1)
[2]
Total counter /2 (TCT/2)
130
• Display the total number of printed sheets in all print modes.
• Mechanical counter driven by electrical signals.
• Counts up by paper exit signal.
Display the total number of printed sheets in black-and-white print
modes.
• Mechanical counter driven by electrical signals.
• Counts up by paper exit signal.
• Display the total number of printed sheets on the LCD board (LCDB).
• Data collection *1
• Counts up by paper exit signal, and stores the data in NVRAM board
(NRB).
Counter to disable copy operation when count up to the set print
number. (removable)
• Mechanical counter driven by electrical signals.
in the main unit field service manual for information on the collected data.
[3]
Theory of Operation Ver1.0 Sep.2006
Specification/mechanism
[2]
[3]
Key counter (KCT)
[1]

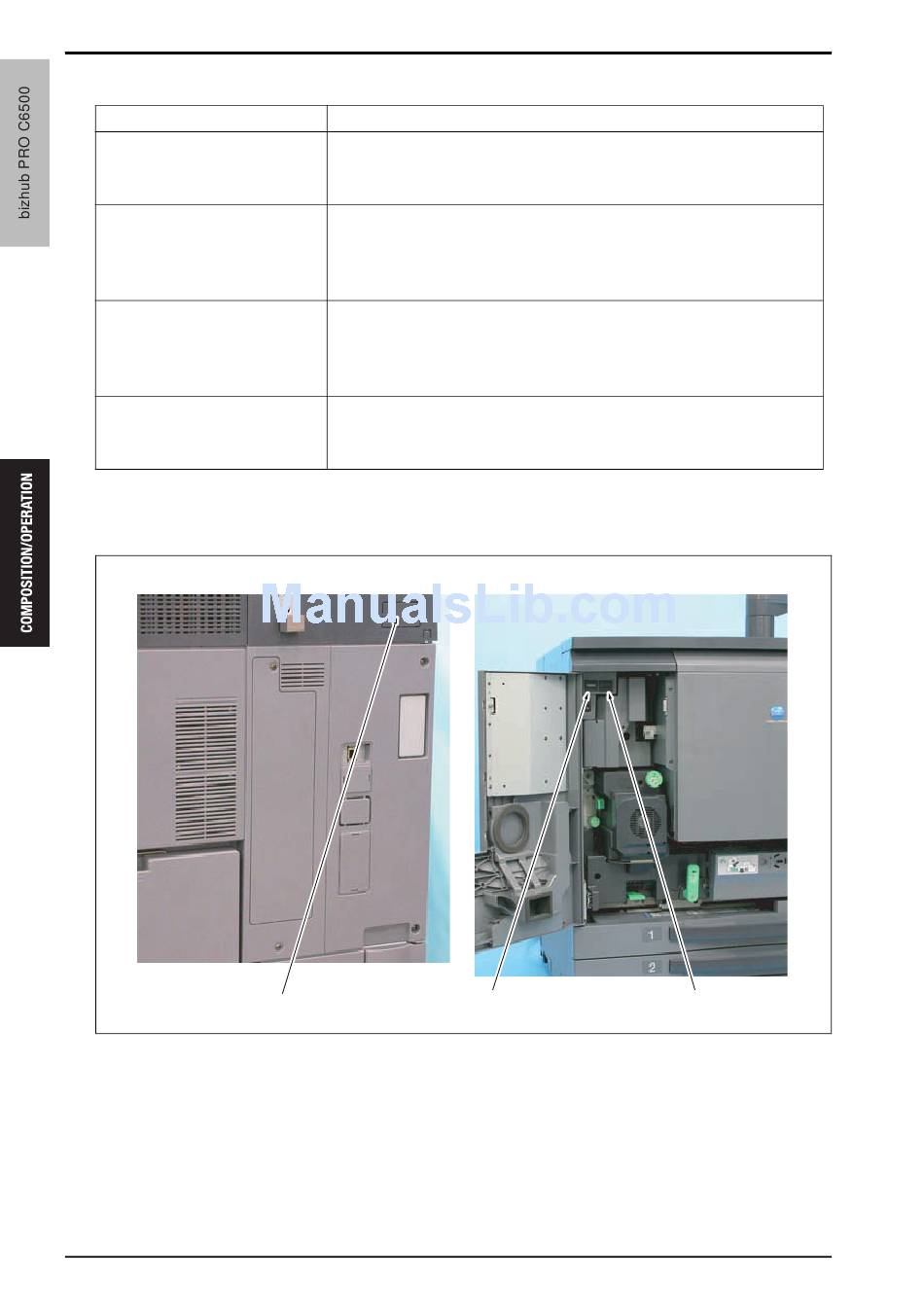

a03ut2c097ca
