Develop ineo+ 6500 Service Manual page 494

Theory of Operation Ver1.0 Sep.2006

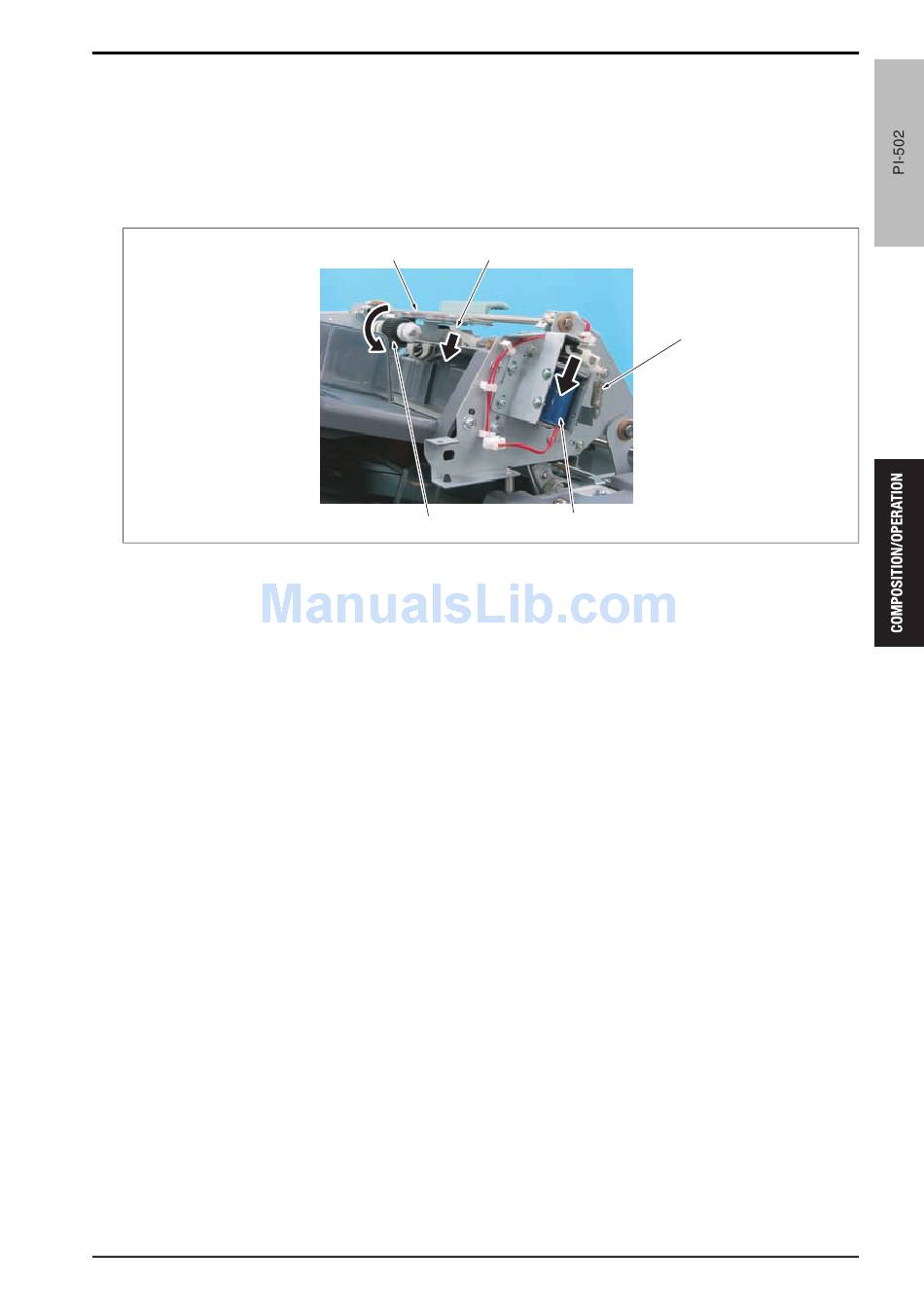

4.3.2 Pick-up mechanism
The pick-up solenoids /Up (SD201) [2] and /Lw (SD202) turn ON to pick up the paper. The release arm [5] held
upward by the spring [1] lifts up the pick-up roller mounting plate [4] to release the pick-up roller [3]. When
SD201 and SD202 turn ON, the release arm moves backward, and then the pick-up roller mounting plate and
the pick-up roller fall down by their own weight. The pick-up roller driven by the transfer motor (M203) presses
the paper and picks it up to transfer it to the separation section.
[1] Spring
[2] Pick-up solenoid /Up (SD201)
[3] Pick-up roller
[5]
[4]
[3]
[4]
[5]
4. PAPER FEED SECTION
[1]
[2]
Pick-up roller mounting plate
Release arm
15jft2c005nb
9
