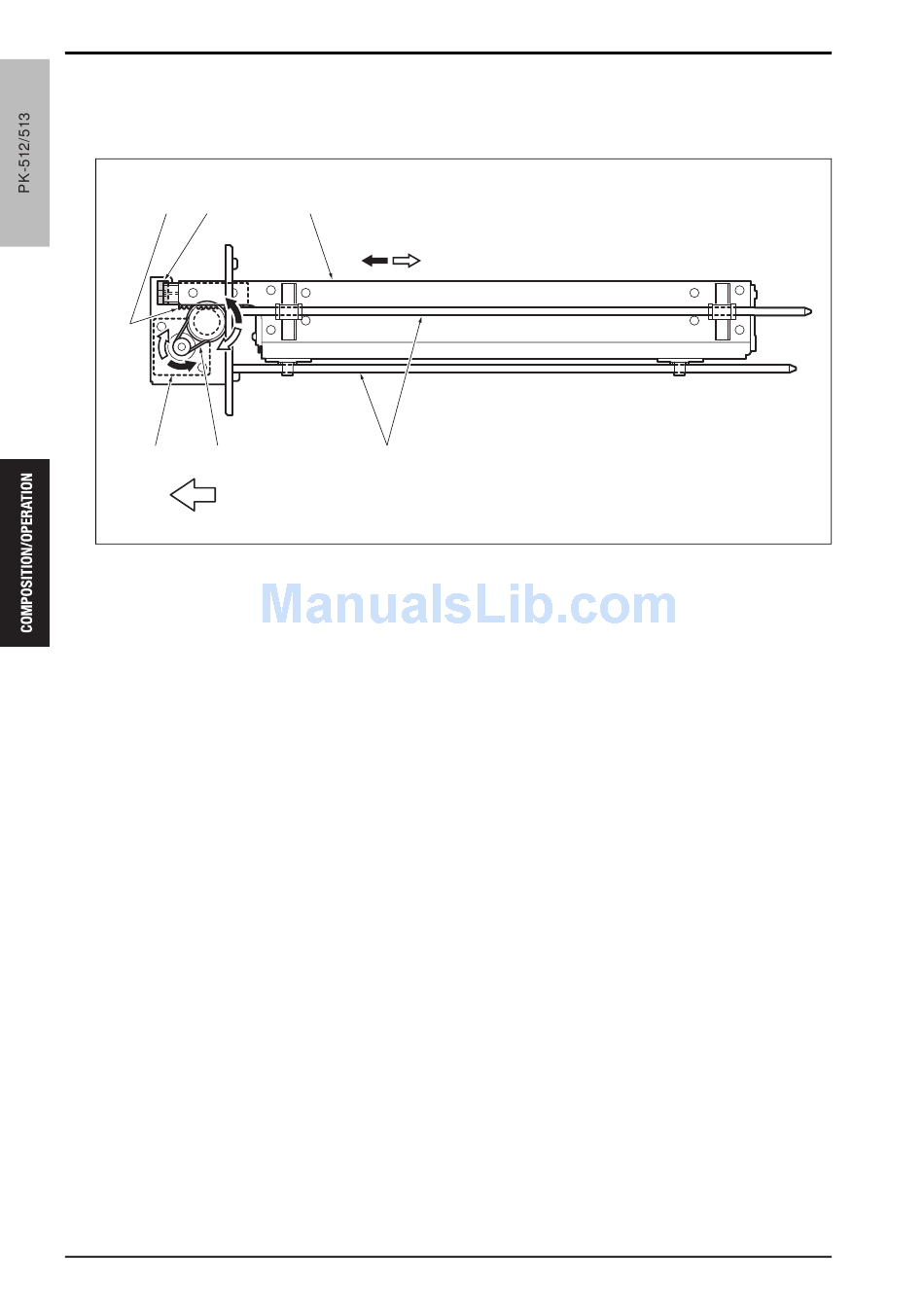

4. PUNCH SECTION
4.2
Drive
4.2.1
Punch shift drive
[6]
[7]
[5]
[3]
[4]
[1]
Punch unit
[2]
Guide shaft
[3]
Belt
[4]
Front
6
[1]
[2]
Theory of Operation Ver1.0 Sep.2006
[5]
Punch shift motor (M302)
[6]
Rack
[7]
Punch shift home sensor (PS303)
15kjt2c002na
