5. SUB TRAY SECTION
5.3

Operation

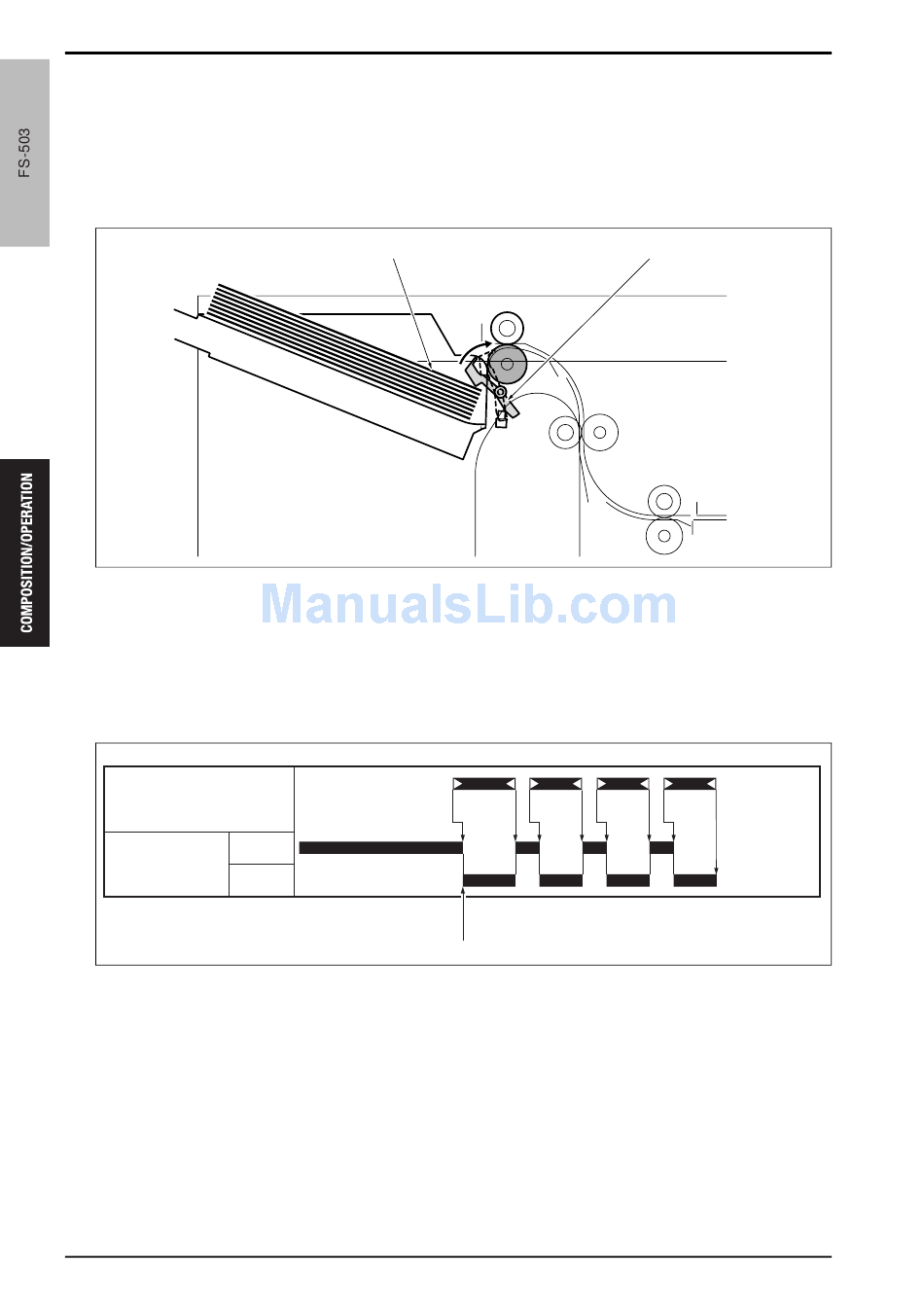

A. Sub tray paper full detection control
When paper that has been exited into the sub tray gets to the specified thickness, the sub tray paper full sensor
(PS30) turns ON to send the "sub tray paper full" information to the main body. Then, the main body displays the
massage on the operation panel.
[1] Paper exited
B. Conveyance speed switching control
Paper conveyed by the conveyance motor (M1) is decelerated for each sheet of paper to be exited into the sub
tray, thus preventing paper from having an uneven edge.
Sub tray paper exit sensor (PS1)
Sub tray paper
Hi-speed
exit motor (M6)
Deceleration
[1] Deceleration of the sub tray paper exit motor (M6)
12
[1]
[2] Sub tray paper full sensor (PS30)
[1]
