6. STACKER SECTION
6.3

Operation

6.3.1

Stacker conveyance speed control

Paper conveyed by the conveyance motor (M1) is sent to the stacker when the stacker entrance motor (M13) is
decelerated a specified period of time after the stacker entrance sensor (PS5) turns ON and before it runs
through the stacker entrance roller.
6.3.2

Intermediate roller control

The roller drive of the intermediate roller /Lw is transmitted from the main tray paper exit motor (M7) by the belt
and the coupling, and the transmission of the conveyance power to paper is made by the pressure/release of
the intermediate roller /Up.
A. Non-staple mode control
While in the non-staple mode, when the start signal is turned ON, the intermediate roller /Up [1] is driven up to
the nip standby position by the cam [2] of the intermediate roller open close motor (M25).
The home position of the intermediate roller /Up open/close operation is detected by the intermediate roller
home sensor (PS33) [3].

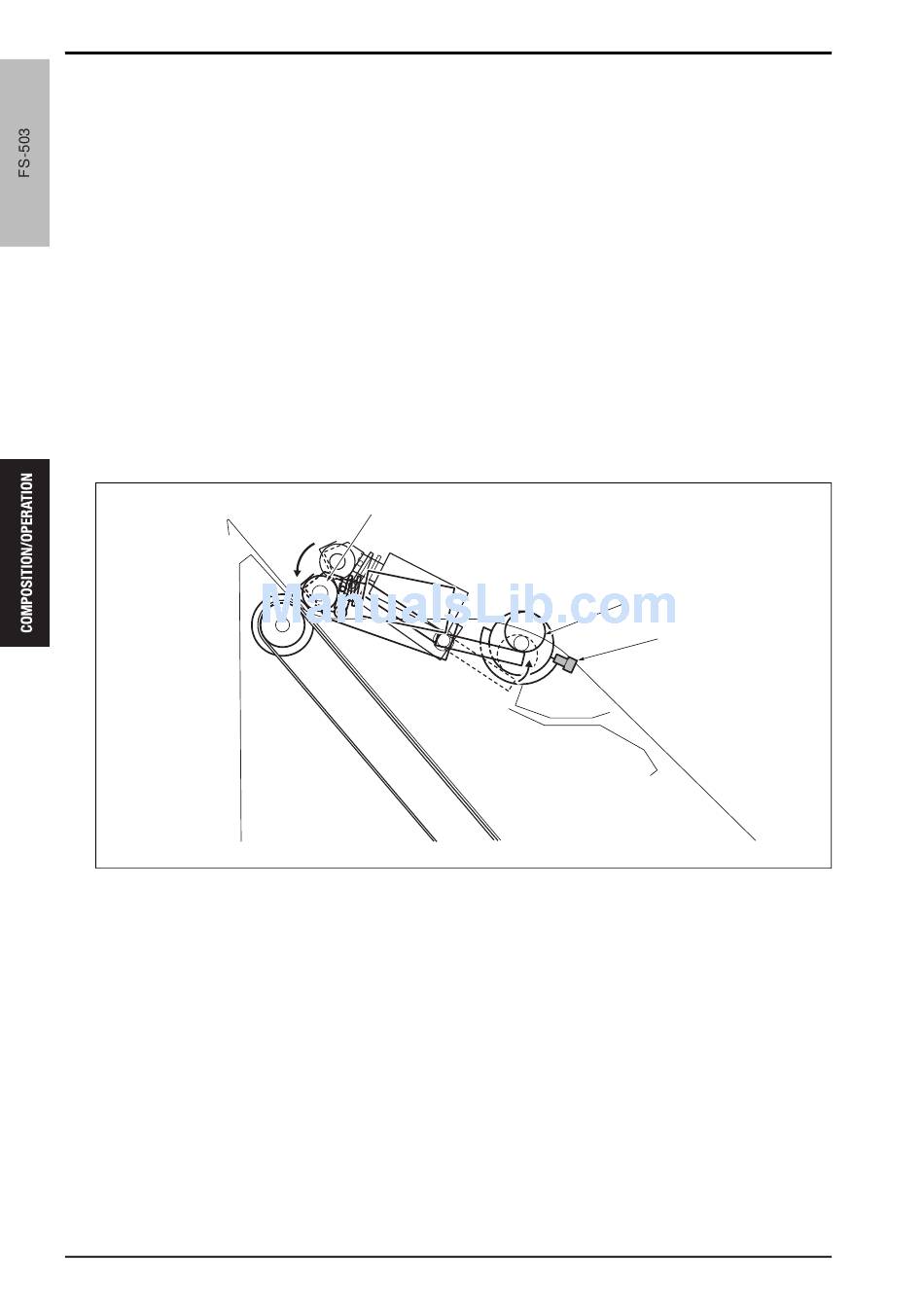

[1] Intermediate roller /Up
[2] Cam of the intermediate roller open close
motor (M25)
18
[1]
[3] Intermediate roller home sensor (PS33)
Theory of Operation Ver2.0 Sep.2006
[2]
[3]
