4. CONVEYANCE SECTION
4.2

Drive

4.2.1

Conveyance drive

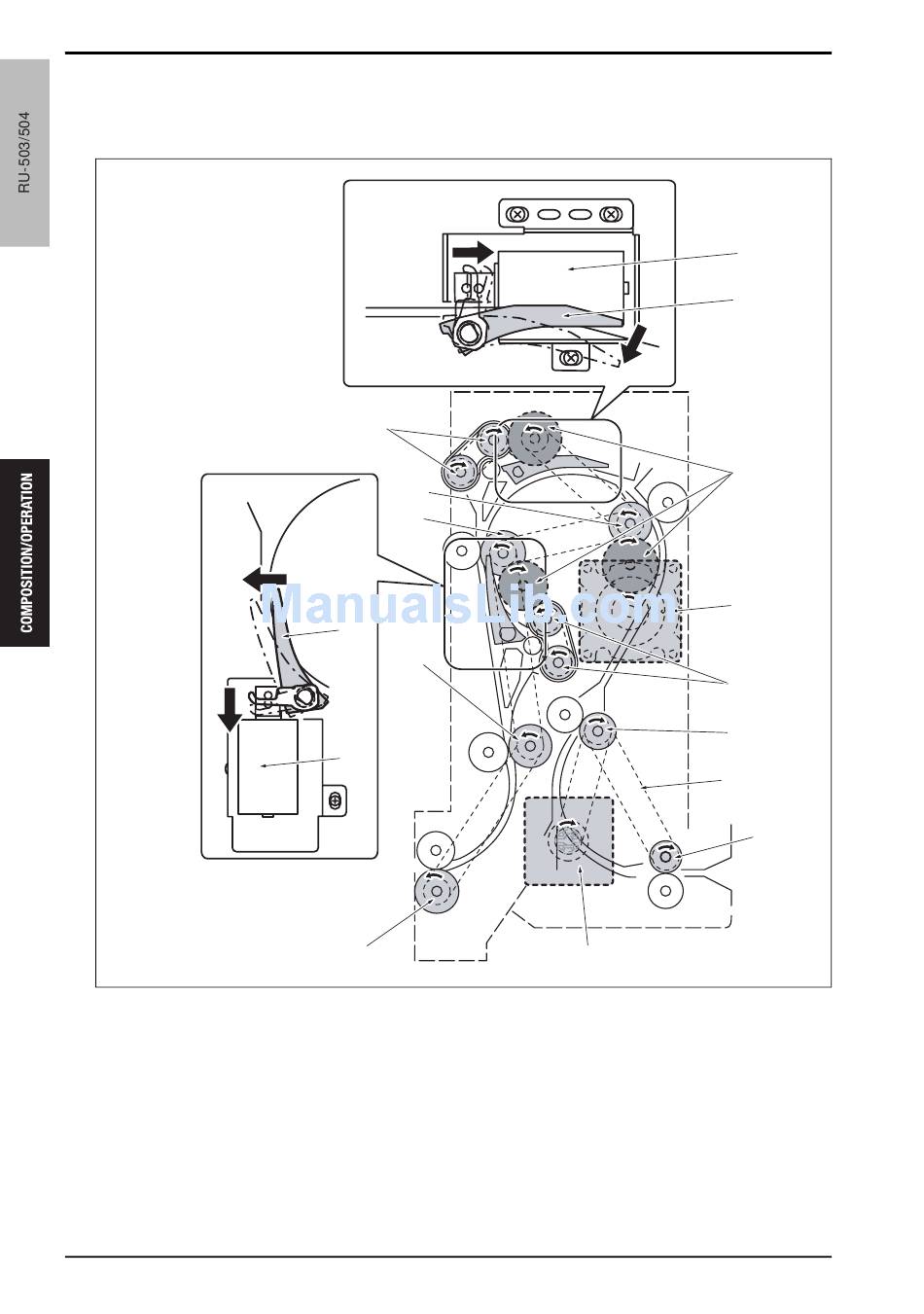

[1] Decurler gate solenoid /1 (SD2)
[2] Decurler gate /1
[3] Gear
[4] Paper exit motor (M5)
[5] Decurler roller /2
[6] Entrance roller /2
[7] Belt
[8] Entrance roller /1
8
[14]
[13]
[12]
[16]
[11]
[15]
[10]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
Theory of Operation Ver1.0 Sep.2006
[9]
Entrance conveyance motor (M1)
Paper exit roller
Intermediate roller /3
Intermediate roller /2
Intermediate roller /1
Decurler roller /1
Decurler gate solenoid /2 (SD3)
Decurler gate /2
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
a04kt2c002ca
