Product Guide
+
ineo
224/284/364
+
ineo
454/554
16.05.2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ineo+ 224 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Develop ineo+ 224

Summary of Contents for Develop ineo+ 224

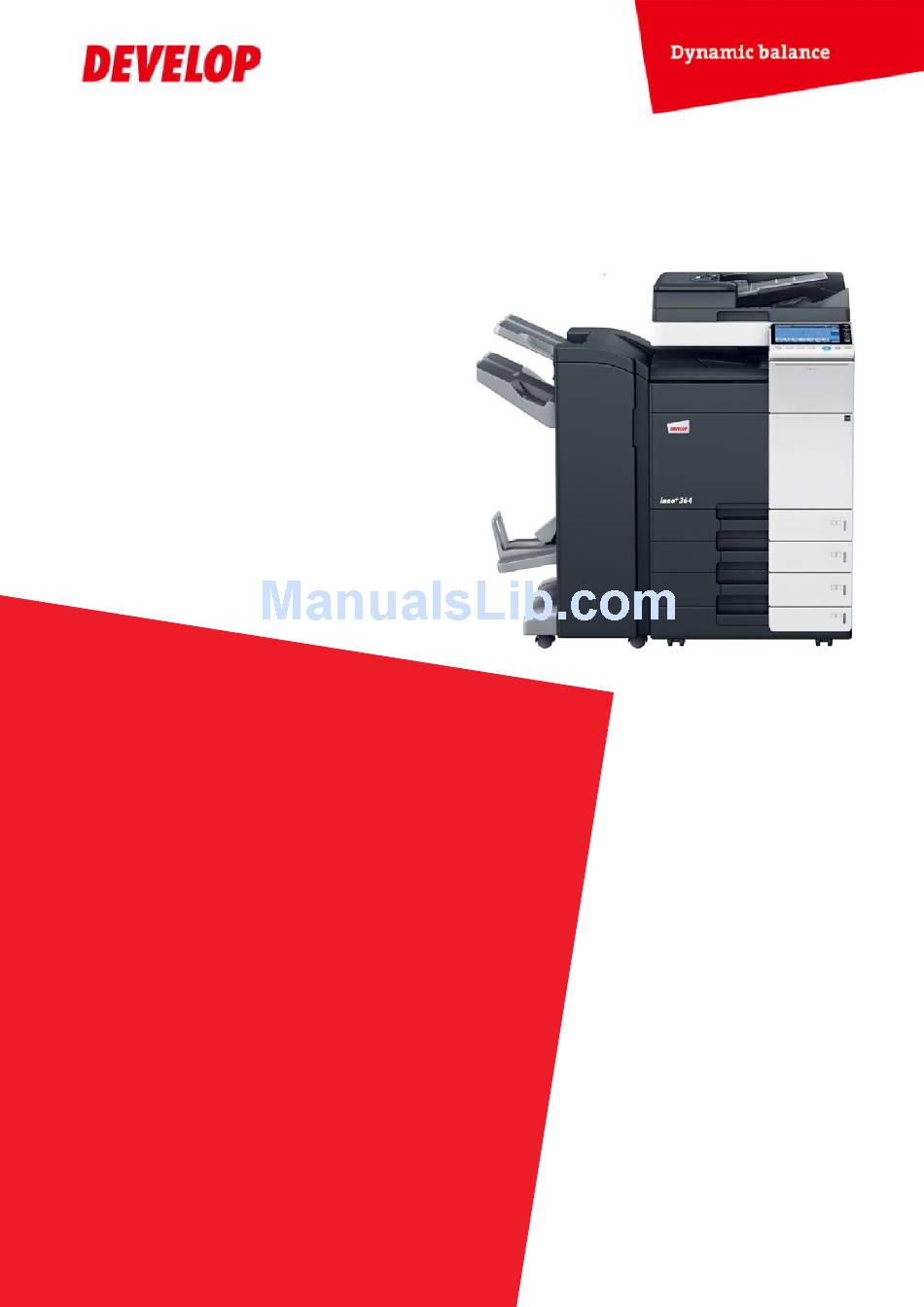

  • Page 1 Product Guide ineo 224/284/364 ineo 454/554 16.05.2012...

  • Page 2: Table Of Contents

    Product Guide ineo 224/284/364/454/554 Table of contents Product Basic ................3 Product Configuration ............... 4 System Specifications ............... 9 Printer Specifications ineo Controller ........22 Printer Specifications Fiery IC-414 (VI-506 required) ..25 Scanner Specifications ............27 Fax Specifications ..............28 Consumables ................

  • Page 3: Product Basic

    Product Guide ineo 224/284/364/454/554 MODEL DEVELOPMENT CODE Zeus X Zeus 0 Zeus 1 Zeus 2 Zeus 3 MODEL NAME ineo ineo ineo ineo ineo SUCCESSOR MODEL FOR ineo ineo ineo ineo ineo ESTIMATED SALES START 08/2012 07/2012 INFOSOURCE SEGMENT KM bizhub C554/C454/C364/C284/C224 ALSO AVAILABLE AT Olivetti d-Color MF554/MF454/MF364/MF284/MF222 Console/Stationary Platen...

  • Page 4: Product Configuration

    Product Guide ineo 224/284/364/454/554 SYSTEM DIMENSIONS ineo 224/284/364 + PC-201 (or PC-110 or PC-410 or DK-510) +DF-624 Unit in mm...
  • Page 5 Product Guide ineo 224/284/364/454/554 SYSTEM DIMENSIONS ineo 224/284/364 + PC-201 (or PC-110 or PC-410 or DK-510) +DF-624 + FS-534 + (MK-730) Please be aware, that the Banner Tray MK-730 is not available in Europe. Europe will have the Banner Tray BT-C1 instead. Unit in mm...
  • Page 6 Product Guide ineo 224/284/364/454/554 SYSTEM DIMENSIONS ineo 454/554 + PC-201 (or PC-110 or PC-410 or DK-510) +DF-701 + FS-533 Unit in mm...
  • Page 7 Product Guide ineo 224/284/364/454/554 SYSTEM DIMENSIONS ineo 454/554 + PC-201 (or PC-110 or PC-410 or DK-510) +DF-701 + FS-535 + Pi-505 + ZU-606 + LU-204 (or LU-301) + (MK-730) Please be aware, that the Banner Tray MK-730 is not available in Europe. Europe will have the Banner Tray BT-C1 instead.
  • Page 8 Product Guide ineo 224/284/364/454/554 SYSTEM CONFIGURATION Will be added in the next PG edition...

  • Page 9: System Specifications

    Product Guide ineo 224/284/364/454/554 DUPLEX TYPE AUTO DOCUMENT Option ineo 224/284/364 FEEDER DF-624 Original Size A6 / max. A3 35 - 128 g/m² (Simplex) Original Weight 50 – 128 g/m² (Duplex/Mix Mode) Tray Capacity 100 sheets (80g/m², A4) Feeding Type First Page System Simplex Mode: Copy :55 sheets (600 dpi) [mono &...
  • Page 10 Product Guide ineo 224/284/364/454/554 PAPER CASSETTES Standard 1 Tray: 500 sheets (universal) Capacity 2 Tray: 500 sheets (universal) 1 Tray: B5 crosswise – A3 Paper Format 2 Tray: B5 crosswise – SRA3 (320 x 450 mm) Paper Weight 1 – 2 Tray: 52 –...
  • Page 11 Product Guide ineo 224/284/364/454/554 PAPER FEED CABINET PC-210 Option Paper Size A5 – A3 Paper Weight 52 – 256 g/m² Paper Capacity 2 x 500 sheets (80 g/m²) Media Type Plain Paper Dimension (WxDxH) (mm) 615 x 652 x 246 Weight (kg) 24 PAPER FEED CABINET PC-410 Option...
  • Page 12 Product Guide ineo 224/284/364/454/554 LARGE CAPACITY TRAY LU-301 Option Paper Size A4 crosswise Paper Weight 52 – 256 g/m² 3000 sheets 80 g/m² Paper Capacity 1300 sheets 256 g/m² Dimensions (WxDxH) (mm) 367 x 528 x 405 Weight (kg) 18 BANNER TRAY BT-C1 Option Function To support multi banner feeding through manual bypass...
  • Page 13 Product Guide ineo 224/284/364/454/554 50 SHEETS STAPLE FINISHER Option FS-534 Finishing Modes Non-sort, sort, group, staple, punch (option), fold (option) Tray Capacity 200/3000 sheets A4, 200/1500 sheets A3 Paper Weight 52 – 300 g/m² Paper Size A6 – SRA3, Banner Max.
  • Page 14 Product Guide ineo 224/284/364/454/554 PUNCH KIT PK-519 for Option for FS-533 Europe/Sweden Punch Method On-line, page by page, 2 or 4 holes for Europe, 4 holes for Sweden Hole Diameter 6.5 mm ± 0,5 mm Paper Size A3, B4, A4 L, B5 L, (200 mm x 330 mm) Paper Weight 52 –...
  • Page 15 Product Guide ineo 224/284/364/454/554 JOB SEPARATOR JS-602 Option for FS-535 Function Additional 3 bin for FS-535 Paper Weight 60 – 90 g/m² Paper Size A5 – A3W (311 x 457 mm) Stacking Capacity Max. 100 sheets (60 – 90 g/m²) Dimensions (WxDxH) (mm) 341 x 537 x 149 Weight (kg) 1.75 Remark Cannot be used together with PI-505...

  • Page 16: Weight (Kg)

    Product Guide ineo 224/284/364/454/554 Z-FOLD UNIT ZU-606 Option for FS-535 Hole Punching Punch Method On-line, page by page, 2 / 4 hole switching type Hole Diameter 6.5 mm ± 0,5 mm 2 holes: A3, B4, A4 C/L, B5 C/L, A5 C/L Paper Size 4 holes: A3, B4, A4 C, B5 C Paper Weight 60 –...
  • Page 17 Product Guide ineo 224/284/364/454/554 WORKING TABLE WT-506 Option Function To place the Authentication Unit SECURITY KIT SC-508 Option Function Copy Guard + Pass Word Copy, Security pattern search USB HOST BOARD EK-606 Option Function USB interface for USB Keyboard Remark For USB Direct Print support. USB HOST BOARD + Bluetooth Option EK-607...
  • Page 18 Product Guide ineo 224/284/364/454/554 LICENSE KEY LK-106 Option Function Bar Code Fonts Remark Upgrade Kit UK-204 is required in addition LICENSE KEY LK-107 Option Function Unicode Font Remark Upgrade Kit UK-204 is required in addition LICENSE KEY LK-108 Option Function OCR Font Remark Upgrade Kit UK-204 is required in addition UPGRADE KIT UK-204 Option for LK-101v3/LK-102v3/LK-105v3/LK-106/LK-107/LK-108...
  • Page 19 Product Guide ineo 224/284/364/454/554 ineo ineo ineo ineo ineo 22 sec. or 25 sec. or 20 sec. or less Main Switch ON less less WARM-UP TIME 22 sec. or 25 sec. or Sub Switch ON 20 sec. or less less less FIRST COPY Colour [sec.
  • Page 20 Product Guide ineo 224/284/364/454/554 FEATURE LIST 2in1/4in1/8in1 AMS/APS Book Copy Booklet Creation Chapter Insertion Continuous Number Stamping Cover Mode X/Y Independent Zoom Distribution Numbering Edge / Frame / Fold Line Erase Image Insertion Image Repeat Image Shift Image Rotation Program Job Non-Image Area Erase OHP Interleaving Overlay...
  • Page 21 Product Guide ineo 224/284/364/454/554 FEATURE LIST cont… Program Memory Yes (30) Proof Copy Separate Scanning Stamp Watermark Gloss Copy Enlarge Display Account Track/Department Control Yes (1000) User Authentication Yes (optional) Copy Protection...

  • Page 22: Printer Specifications Ineo Controller

    Product Guide ineo 224/284/364/454/554 ineo ineo ineo ineo ineo MPC8536E MPC8536 MPC8536 1.2GHz 1.0GHz 800MHz PRINT SPEED A4 crosswise monochrome/colour 55 ppm 45 ppm 36 ppm 28 ppm 22 ppm (simplex/duplex) A3 monochrome/colour 27.5 ppm 22.6 ppm 18 ppm 14 ppm 14 ppm (simplex/duplex) PRINT RESOLUTION...
  • Page 23 Product Guide ineo 224/284/364/454/554 SUPPORTED PROTOCOLS TCP/IP, IPX/SPX (NDSupport), SMB (NetBEUI), LPD, IPP1.1, SNMP, HTTP FEATURE LIST Booklet Creation Chapter Insertion Continuous Number Stamping Cover Mode Date Stamp Distribution Numbering Edge / Frame Erase Continuous Number Stamping Cover Mode Date Stamp Distribution Numbering Edge / Frame Erase Image Insertion...
  • Page 24 Product Guide ineo 224/284/364/454/554 FEATURE LIST cont… Page Insertion Page Stamp Proof Print Stamp Watermark MixPlex Tab Print Tandem Print N-up 2, 4, 6, 9, 16 FINISHING Sorting Stapling Yes (Settings: auto, left, top, right) Punching Folding Page Order Output...

  • Page 25: Printer Specifications Fiery Ic-414 (Vi-506 Required)

    Product Guide ineo 224/284/364/454/554 Hardware Type Embedded Intel Pentium E5300 2.60 GHz Memory 2 GB Fiery System 10e (Linux based) Harddisk 160GB Interface Ethernet 10Base-T/100Base-TX/1000Base-T standard TokenRing Parallel USB 2.0 (also utilised for Firmware update) Driver PostScript Adobe PostScript 3 ver. 3019 No (PCL Interpreter implemented) Software Utilities Command WorkStation...
  • Page 26 Product Guide ineo 224/284/364/454/554 Software Utilities cont. Twain Scan Yes (Remote Scan 5.4) Remote Scan Yes (Version 5.2) Graphic Arts Light Features Yes (Option), AutoTrapping, HotFolder Color Profiler Yes (Option) Impose (Doc Builder Pro) Yes (Option) ineo Remote Care Web Connection Yes, routed to MFP via 2 Lan connection FEATURES...

  • Page 27: Scanner Specifications

    Product Guide ineo 224/284/364/454/554 SCAN FUNCTIONS Scan to E-Mail, Scan to FTP, Scan to Box (HDD), Scan to PC (SMB), Network Twain, Scan to WebDAV, Scan to Me, Scan to Home, Scan to USB, Scan to Scan Server, Scan to Web Service (WSD-Scan), Device Profile for Web Services (DPWS) SCAN BASICS Push:...

  • Page 28: Fax Specifications

    Product Guide ineo 224/284/364/454/554 GENERAL DATA Communication Super G3 Public Switch Telephone Network, Private Branch Exchange, Fax Compatible Lines Communication Line Max. Modem Speed 2.4 to 33,6 kbps Compression MH, MR, MMR, JBIG Sending Paper Size Max. A3 (Long Length Support: Max. 1000 mm) Max.

  • Page 29: Internet Fax

    Product Guide ineo 224/284/364/454/554 Internet Fax GENERAL DATA Colour Supports colour Internet Fax Transmission: SMTP Communication Protocol Receiving: POP3, TCP/IP Communication Mode Full mode Original Size A3, B4, A4 Recording Size Max. A3 (max. long size original: 1000 mm with Document Feeder) Interface Ethernet 10Base-T / 100Base-TX/1000Base-T Resolution...

  • Page 30: Consumables

    Product Guide ineo 224/284/364/454/554 TONER BLACK TN321K (ineo 224/284/364) Name TN512K (ineo 454/554) Concept Bottle system Weight Open 27 k (5 % coverage) ineo 224/284/364 Yield 27.5 k (5% coverage) ineo 454/554 Units per carton 1 bottle TONER COLOUR (C, M, Y) TN321C, M, Y (ineo 224/284/364) Name...
  • Page 31 Product Guide ineo 224/284/364/454/554 DEVELOPER UNIT BLACK ineo 224/284/364/454/554 Name DV512K Yield 600 k Units per carton 1 unit DEVELOPER UNIT COLOUR ineo 224/284/364/454/554 Name DV512C, M, Y Yield 600 k Units per carton 1 unit STAPLE CARTRIDGE FOR FS-534/SD-511/SD-512 Name SK-602 Quantity per Sales Unit 3 cartridges, 5000 staples each STAPLE CARTRIDGE FOR...

  • Page 32: Article Numbers

    Product Guide ineo 224/284/364/454/554 MACHINE Art. No. ineo A4FM121 ineo A4FK121 ineo A161121 ineo A4FJ121 ineo 4827000280 Feeder Options ACCESSORIES Art. No. Compatibility Duplex Type Automatic Document A3CFWY1 ineo 224/284/364 Feeder DF-624 Dual Scan Document Feeder DF-701 A3CEWY1 ineo 224/284/364 A3PMWY1 Original Cover OC-511 ineo...

  • Page 33: Job Separator

    Product Guide ineo 224/284/364/454/554 ACCESSORIES Art. No. Compatibility Finishing Options 100 Sheet Staple Finisher FS-535 A2Y1WY1 ineo 554/654/754 Saddle Unit SD-511 A3ERWY1 FS-534 Saddle Unit SD-512 A2Y2WY1 FS-535 Punch Kit PK-519 A3EUW21 FS-533 (European Version) Punch Kit PK-519 A3EUWG1 FS-533 (Swedish Version) Punch Kit PK-520 A3ETW21...
  • Page 34 Product Guide ineo 224/284/364/454/554 ACCESSORIES cont.. Art. No. Compatibility Security Options ineo 220/280/360/452/552/652/652DS Working Table WT-506 A0W4WY2 ineo 224/284/364/454/554/654/754 Security Kit SC-508 A4MMWY1 ineo 224/284/364/454/554/654/754 USB Host Board EK-606 A4MJWY1 ineo 224/284/364/454/554 USB Host Board + Bluetooth EK-607 A4MKWY1 ineo 224/284/364/454/554 Mount Kit MK-735 A4NMWY1...
  • Page 35 Product Guide ineo 224/284/364/454/554 CONSUMABLES Art. No. Compatibility Toner Toner TN321K A33K1D0 ineo 224/284/364 Toner TN321C A33K4D0 ineo 224/284/364 Toner TN321M A33K3D0 ineo 224/284/364 Toner TN321Y A33K2D0 ineo 224/284/364 Toner TN512K A33K1D2 ineo 454/554 Toner TN512C A33K4D2 ineo 454/554 Toner TN512M A33K3D2 ineo 454/554...

  • Page 36: Service Part

    Product Guide ineo 224/284/364/454/554 Maintenance and Firmware Upgrade Please refer to the related Service Manual. Notebook recommendation for Service support (minimum configuration) Hardware: Notebook, 2GB RAM, 250GB HDD (at least 30 GBs free HDD space when fully configured), Optical Drive (CD/DVD Read & Write), PCMCIA Slot, 10/100Mbit Ethernet, USB 2.0 Software: WinXP (rather than Vista or Windosw 7), MS-Office, Acrobat Reader, Burning Software (Nero Suite, IBM Record Now etc.), FTP Client (Filezilla etc.)
  • Page 37 Product Guide ineo 224/284/364/454/554 Customer Replacement Parts Life Parts name ineo ineo ineo ineo ineo Toner Bottle Y Toner Bottle M 26 k 25 k Toner Bottle C Toner Bottle K 27.5 k 27 k Waste Toner Box 40 k Drum Unit Y Drum Unit M 95 k...

  • Page 38: Appendix

    Product Guide ineo 224/284/364/454/554 Finisher Accessories & Combination FINISHER Accessories Finisher FS-533 PK-519 Finisher FS-534 PK-520, SD-511 PK-521, SD-512, PI-505, ZU-606, JS-602 Finisher FS-535 Either JS-602 or PI-505 could be used together with FS-535 Overview Finisher Functionality Functionality FS-533 FS-534 FS-535 Capacity (80 g/m²) 500 sh.
  • Page 39 Product Guide ineo 224/284/364/454/554 Paper weights and sizes to be used Source Capacity (80 g/m²) Size (mm) Weight (g/m²) Tray 1 B5 – A3 52 - 256 Tray 2 B5 – SRA3 52 – 256 A5 – SRA3, 52 – 300 Bypass Banner (297 x 1200) Banner 127 -210...
  • Page 40 Product Guide ineo 224/284/364/454/554 What is delivered with the machine ineo ineo ineo ineo ineo Document Feeder Yes (standard) No (optional) Drum Unit Yes (4 units) Developer Unit Yes (4 units) Toner Original Cover Not applicable No (optional) Copy Tray/Output Tray No (optional) Yes (standard) Legal Required Information (LRI)
  • Page 41 Product Guide ineo 224/284/364/454/554...
  • Page 42 Product Guide ineo 224/284/364/454/554...
  • Page 43 Product Guide ineo 224/284/364/454/554...
  • Page 44 May 2012. We reserve the right to make changes to the technical design. Specifications refer to maximum performance under standard conditions. No guarantee is provided in relation to any of the data supplied. Your Develop Marketing...
