4. PAPER FEED SECTION
4.2

Drive

4.2.1

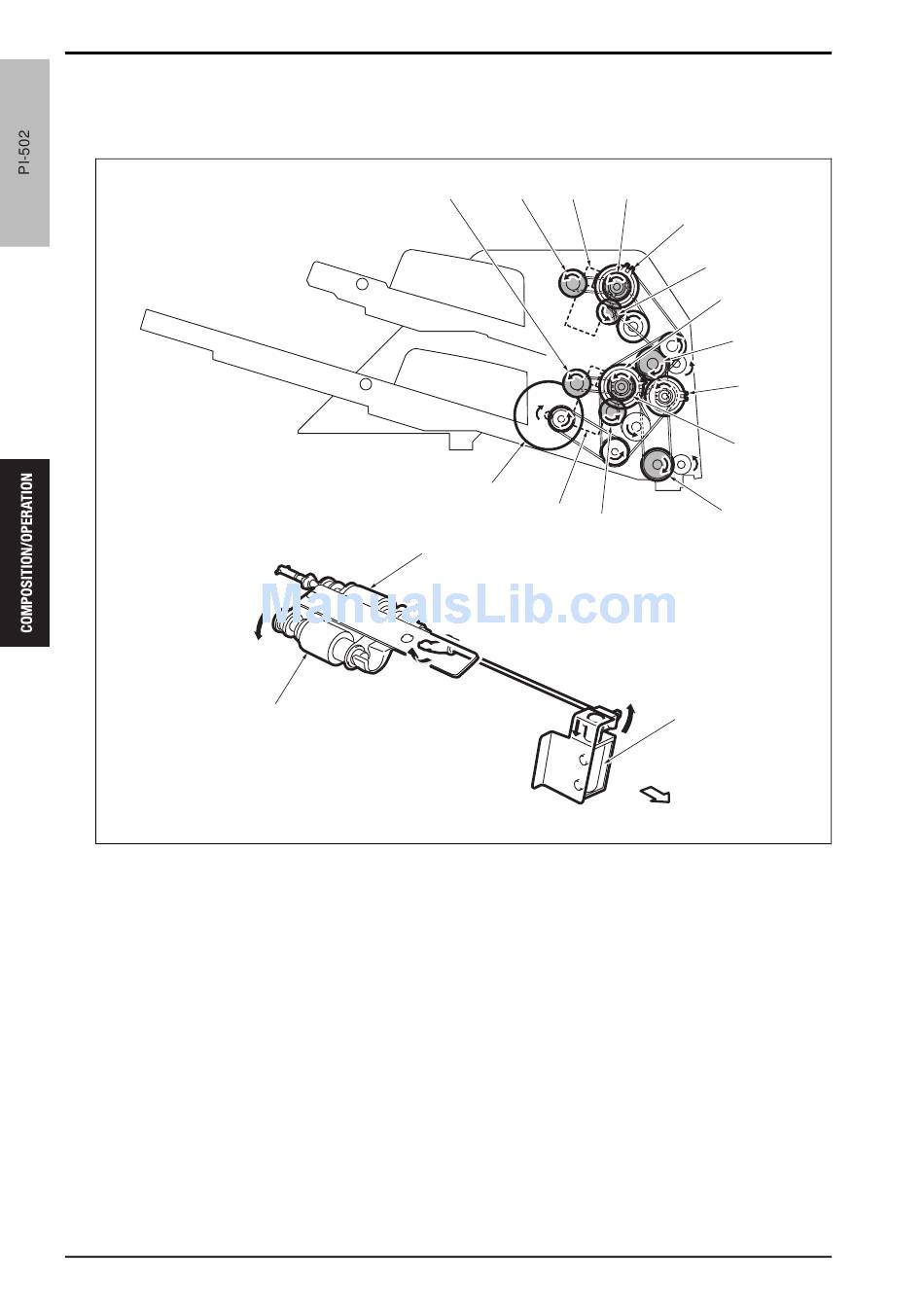

Paper feed drive

[1] Pick-up roller /Lw
[2] Pick-up roller /Up
[3] Pick-up solenoid /Up (SD201)
[4] Paper feed roller /Up
[5] Transfer clutch (MC201)
[6] Separation roller /Up
[7] Transfer clutch /Lw (MC202)
[8] Conveyance roller /Up
[9] Registration clutch (MC203)
6
[18]
[17]
Theory of Operation Ver1.0 Sep.2006
[1] [2] [3]
[14]
[13]
[12]
[10] Paper feed roller /Lw
[11] Conveyance roller /Lw
[12] Separation roller /Lw
[13] Pick-up solenoid /Lw (SD202)
[14] Transfer motor (M203)
[15] Pick-up solenoid /Up (SD201), /Lw (SD202)
[16] Front
[17] Pick-up roller /Up and /Lw
[18] Paper feed roller /Up and /Lw
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[15]
[16]
15jft2c002nb
