Develop ineo+ 6500 Service Manual page 596

Theory of Operation Ver2.0 Sep.2006
Folding sensor /2 (PS44)
Bundle arm assist motor (M26)
Clincher up down home sensor (PS26)
Forward
Bundle arm
motor (M10)
Reverse
Bundle arm Forward
rotation motor
Reverse
(M22)
Bundle arm rotation home sensor (PS31)
Bundle arm home sensor (PS32)
Forward
Bundle clip
motor (M11)
Reverse
[1] Main body start signal
[2] Bundle arm moved in accordance with the paper size
[3] Bundle arm started to rotate
[4] Bundle arm stopped in an upright position
[5] Bundle arm restarted to rotate
[6] Bundle arm contacted with the guide plate
[7] Bundle arm inserted under the fold line
[1][2] [3] [4]
7. SADDLE STITCHING SECTION
[14]
[5] [6][7] [8]
[8] Insertion completed and conveyance started
[9] Conveyance completed
[10] Paper clip caught paper
[11] Bundle arm shelter operation
[12] Shelter completed
[13] Bundle arm moved for the subsequent set

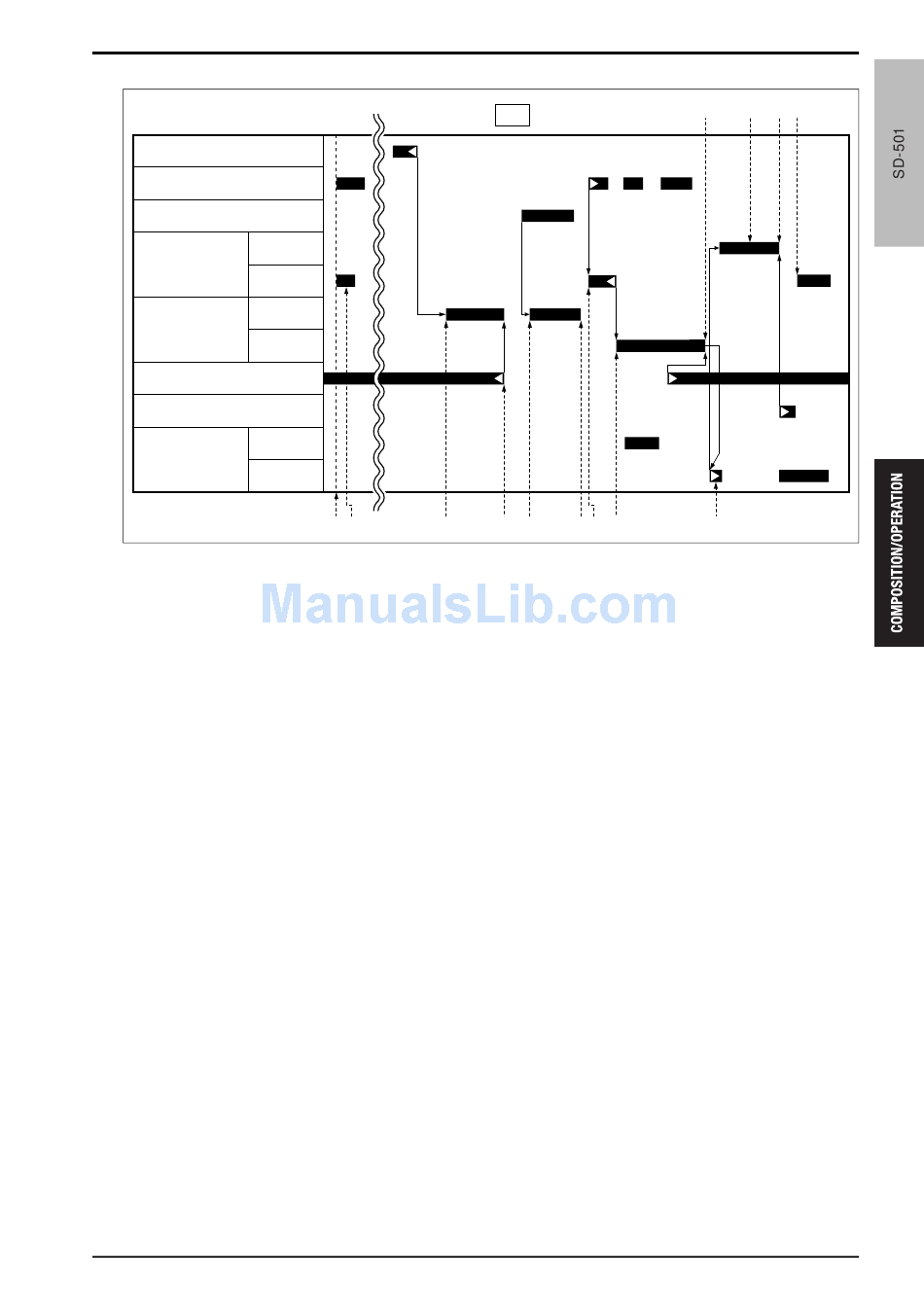

[14] Time chart of the saddle stitching mode
[9] [11] [12][13]
[10]
