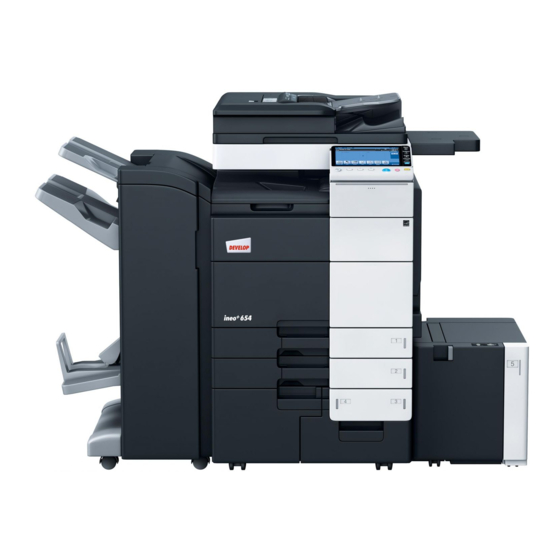

Develop ineo+ 654 Product Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Product Guide
+
ineo
654/754
01.03.2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ineo+ 654 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Develop ineo+ 654

Summary of Contents for Develop ineo+ 654

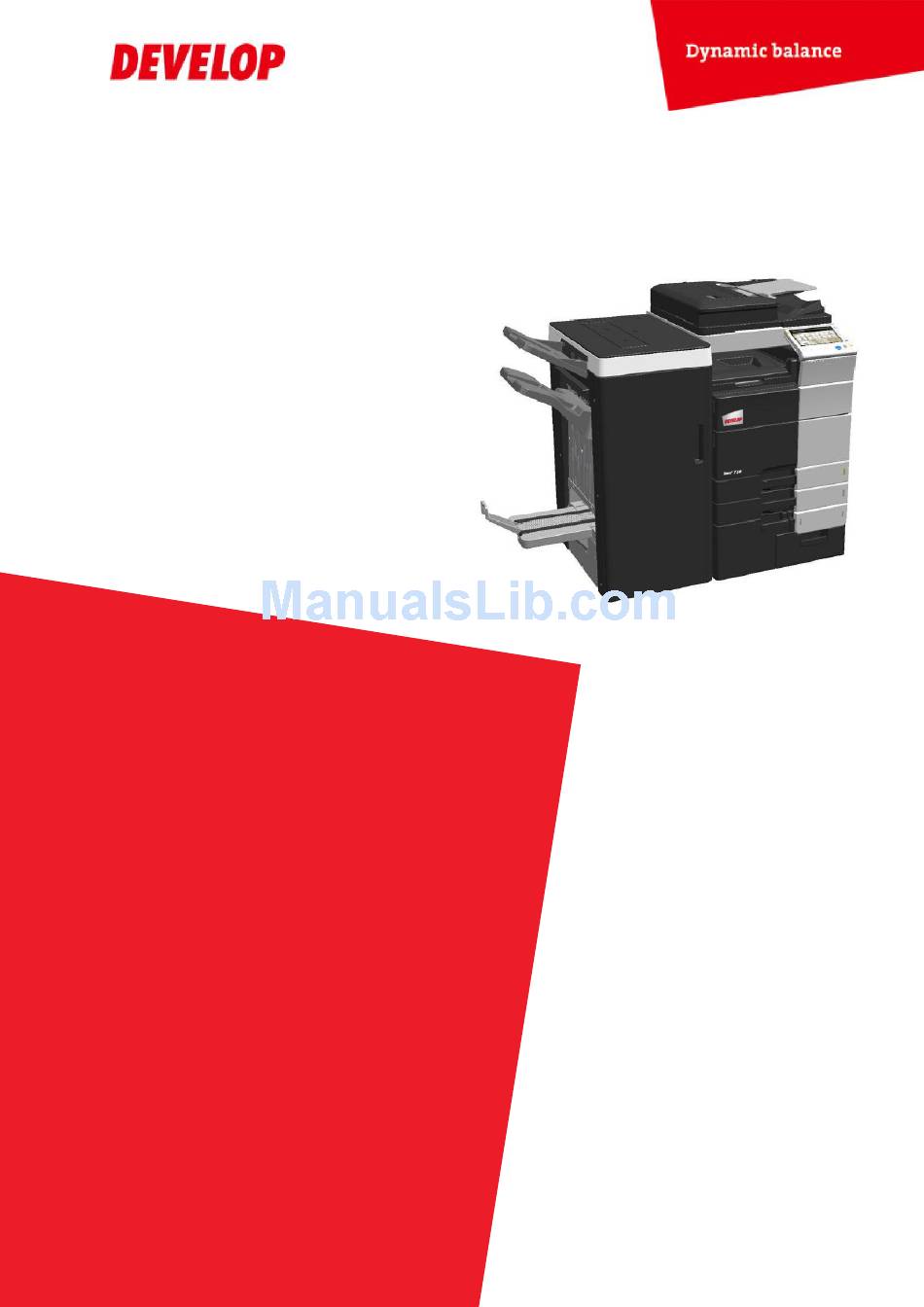

  • Page 1 Product Guide ineo 654/754 01.03.2012...

  • Page 2: Table Of Contents

    Product Guide ineo 654/754 Table of contents Product Basic ................3 Product Configuration ..............4 System Specifications ..............6 Copier Specifications ..............15 Printer Specifications ..............18 Printer Specifications (Fiery IC-414) ......... 21 Scanner Specifications .............. 24 Fax Specifications ..............26 Consumables ................

  • Page 3: Product Basic

    Product Guide ineo 654/754 Product Basic MODEL DEVELOPMENT CODE Minerva 0 Minerva 1 PROPOSED MODEL NAME ineo ineo SUCCESSOR MODEL FOR ineo 652/652DS ESTIMATED SALES START 03/2012 03/2012 INFOSOURCE SEGMENT KM bizhub C754 KM bizhub C654 ALSO AVAILABLE AS Olivetti d-Color MF752 Olivetti d-Color MF652...

  • Page 4: Product Configuration

    Product Guide ineo 654/754 Product Configuration SYSTEM DIMENSIONS...
  • Page 5 Product Guide ineo 654/754 SYSTEM CONFIGURATION...

  • Page 6: System Specifications

    Product Guide ineo 654/754 System Specifications DOCUMENT FEEDER Standard A6 / max. A3 Original Size (Width: 100 – 297 mm, Length: 139.7 – 431.8 mm) in Fax Mode max length 1,000 mm 35 - 210 g/m² (Simplex) / 50 – 210 g/m² (Duplex) Original Weight 50 –...
  • Page 7 Product Guide ineo 654/754 DUPLEX Standard Capacity stackless Paper Format A5 – SRA3, A3+ Paper Weight 52 – 256 g/m² BANNER TRAY BT-C1 Option Function To support multi banner feeding though manual bypass LARGE CAPACITY TRAY LU-204 Option Paper Size A4 – SRA3/A3+ Paper Weight 52 –...
  • Page 8 Product Guide ineo 654/754 100 SHEETS STAPLE FINISHER FS-535 Option Non-sort, sort, group, offset sort, offset group, staple, punch Finishing Modes (option) Main Tray: 3,000 sheets (80 g/m²) [non sort] Tray Capacity 2,500 sheets when SD-512 is installed Sub Tray: 200 sheets (80 g/m²) Stapling Modes Corner (front/back), centre 2 points 100 sheets (90 g/m²), 50 sheets (up to 105 g/m²),...
  • Page 9 Product Guide ineo 654/754 SADDLE KIT SD-512 Option for FS-535 Paper Size A4 lengthwise / A3+ Centre Staple: 52 to 90 g/m² Half-Fold: 52 to 209 g/m² Paper Weight (more than 91 g/m² sheet can be used only as a cover sheet) Tri-Fold: 52 to 90 g/m²...
  • Page 10 Product Guide ineo 654/754 Z-FOLD UNIT ZU-606 Option for FS-535 Hole Punching Punch Method On-line, page by page, 2 / 4 hole switching type Hole Diameter 6.5 mm ± 0,5 mm 2 holes: A3, B4, A4 C/L, B5 C/L, A5 C/L Paper Size 4 holes: A3, B4, A4 C, B5 C Paper Weight 60 –...
  • Page 11 Product Guide ineo 654/754 50 SHEETS STAPLE FINISHER FS-534 Option Finishing Modes Non-Sort, Sort, Group, Staple Sub Tray 200 sheets Tray Capacity Main Tray 3000 sheets A4 or 1500 sheets A3 Stapling Modes Corner front/back, Centre 2 point Booklet (option) 50 sheets (90g/m²)/ 30 sheets (91 –...

  • Page 12: Remark If No Finisher Is Attached The Ot-503 Is Always Required

    Product Guide ineo 654/754 Punch Kit PK-520 for Option for FS-534 EUROPE/SWEDEN On-line, page by page, 2 / 4 holes switching type for European Punch Method version, 4 holes fixed for Swedish version Hole Diameter 6.5 mm ± 0,5 mm Paper Size A3, B4, A4 L, B5 L Paper Weight 60 –...
  • Page 13 Product Guide ineo 654/754 USB HOST BOARD EK-604 Option Function USB interface for key board Remark Speaker included USB HOST BOARD + BLUETOOTH Option EK-605 Function USB interface for key board & Bluetooth for Mobile Printing Remark Speaker included SECURITY KIT SC-508 Option Function Copy Guard, Password Copy, Security pattern search...
  • Page 14 Product Guide ineo 654/754 LICENSE KEY LK-102 v3 Option Function PDF/A, PDF Encryption Function Remark Upgrade Kit UK-204 is required in addition LICENSE KEY LK-105 v3 Option Function OCR for searchable PDF/ PPTX / PDF/A 1a Remark Upgrade Kit UK-204 is required in addition LICENSE KEY LK-106 Option Function Barcode Font...

  • Page 15: Copier Specifications

    Product Guide ineo 654/754 Copier Specifications ineo ineo WARM-UP TIME 22 sec or less FIRST COPY Colour 5.3 sec. or less 5.3 sec. or less Monochrome 3.6 sec. or less 3.7 sec. or less COPY SPEED A4 crosswise colour 60 ppm 60 ppm (simplex/duplex) A4 crosswise monochrome...
  • Page 16 Product Guide ineo 654/754 FEATURE LIST Dual Scan 2in1/4in1/8in1 AMS/APS Book Copy Booklet Creation Chapter Insertion Continuous Number Stamping Cover Mode X/Y Independent Zoom Department Control Yes (1000) Distribution Numbering Edge / Frame / Fold Line Erase Image Insertion Image Repeat Image Shift Image Rotation 2in1/4in1/8in1...
  • Page 17 Product Guide ineo 654/754 FEATURE LIST cont. Positive-Negative-Mode Date Stamp / Page Stamp Yes / Yes Program Memory Yes (30) Proof Copy Separate Scanning Stamp Watermark Gloss Copy...

  • Page 18: Printer Specifications

    Product Guide ineo 654/754 Printer Specifications ineo ineo C654 MPC8536, 1,2 GHz PRINT SPEED A4 crosswise colour 60 ppm 60 ppm (simplex/duplex) A4 crosswise monochrome 75 ppm 65 ppm (simplex/duplex) A3 colour (simplex/duplex) 30 ppm 30 ppm A3 monochrome simplex/duplex) 37 ppm 33 ppm 1,800 x 600 dpi...
  • Page 19 Product Guide ineo 654/754 FEATURE LIST Booklet Creation Chapter Insertion Continuous Number Stamping Cover Mode Date Stamp Distribution Numbering Edge / Frame Erase Image Insertion Image Repeat Yes (2 repeats) Image Shift Image Rotation Job Accounting Non-Image Area Erase OHP Interleaving Overlay Page Insertion Page Stamp...
  • Page 20 Product Guide ineo 654/754 FINISHING Sorting Stapling Yes (Settings: auto, left, top, right) Punching Folding Page Order Output...

  • Page 21: Printer Specifications (Fiery Ic-414)

    Product Guide ineo 654/754 Printer Specifications (Fiery IC-414) (Video Interface Kit VI-506 required in addition) HARDWARE Type Embedded Intel Pentium E5300 2.60 GHz Memory 2 GB standard 160 GB Print Resolution 600 dpi, 1200 dpi INTERFACE Ethernet 10Base-T/100Base-TX/1000Base-T (standard) Parallel USB 2.0 (also utilised for Firmware update) PostScript Adobe PostScript 3 Version 3019...
  • Page 22 Product Guide ineo 654/754 SOFTWARE UTILITIES cont… FreeForm Color Wise Pro Tools Yes (V 3.2) WebTools DownLoader Spooler Twain Scan Yes (Remote Scan 5.4) Remote Scan Yes (Version 5.2) Graphic Arts Light Features Yes (Option), AutoTrapping, HotFolder Color Profiler Yes (Option) Impose (Doc Builder Pro) Yes (Option) ineo Remote Care...
  • Page 23 Product Guide ineo 654/754 NETWORK SNMP Yes, 3.0 NetWise Novell NDS compliant Netware Version 5.x or later Auto Switching Protocols Auto Port Switching Apple Talk Terminal Server Point and Print Click and Print Yes (via SMB) Port 9100 LPR printing IP-Filtering HTTPS SSL / TLS...

  • Page 24: Scanner Specifications

    Product Guide ineo 654/754 Scanner Specifications SCAN BASICS Push: 200dpi / 300dpi / 400dpi / 600dpi Scan Resolution Pull: 100dpi / 200dpi / 300dpi / 400dpi / 600dpi 90 opm Simplex B/W & Colour 300 dpi, Scan Speed w. ADF 180 opm Duplex B/W &...
  • Page 25 Product Guide ineo 654/754 SCAN FUNCTIONS cont… Scan to Scan Server Scan to Web Service (WSD Scan) Device Profile for Web Service (DPWS) OTHER FUNCTIONS Universal Send, Authentication at the time of E-Mail send (SMTP authentication, POP before SMTP), S/MIME, Annotation...

  • Page 26: Fax Specifications

    Product Guide ineo 654/754 Fax Specifications GENERAL DATA Communication Line PSTN, PBX, G3 Max. Modem Speed / Compatibility 33,6 kbps / ECM, Super G3 Coding / Error Correction (ECM) MH, MR, MMR, JBIG/yes Scanner: Max: 297 x 431.8 mm Transmission Size ADF: Max 297 x 1000 mm /STD/Fine/ Super Fine) ADF: Max 297 x 432 mm (Ultra Fine, Manual TX Mode) Max.
  • Page 27 Product Guide ineo 654/754 TRANSMISSION / INPUT cont… Number of Timers max. 20 Storable TX Jobs max. 99 ADF/Memory Transmission Yes / Yes Book Transmission Header Line (TTI) Stamp Function Yes (w. optional stamp unit SP-501) Department Management Closed Network TX / Protected TX Yes / Yes Quick Memory Transmission Batch Transmission...
  • Page 28 Product Guide ineo 654/754 RECEIVING / OUTPUT cont… Reduction in Fax Mode Paper source selection Receiving / Output Tray Selection Yes (w.optional finisher) Memory Receiving Footer Print Closed Network RX / Protected RX No / Yes (block Junk Fax) 2 to 1 Receiving Yes (A5/2 pages =>...
  • Page 29 Product Guide ineo 654/754 REPORTS AND LISTS cont… Journal Consumable Order Report Yes ( default: off, service function) Memory Data List / Print Yes (Stored Document List) User/Department Management List UTILITIES Data Administrator Yes (for programming fax receipient) Note: Specification may vary due to national PTT regulations...

  • Page 30: Internet Fax

    Product Guide ineo 654/754 Internet Fax GENERAL DATA Colour Support colour Internet Fax Transmission: SMTP Communication Protocol Receiving: POP3, TCP/IP Communication Mode Full mode Original Size A3, B4, A4 Recording Size Max. A3 (max. long size original: 1000 mm with Document Feeder) Interface Ethernet 10Base-T / 100Base-TX/1000Base-T Resolution...

  • Page 31: Consumables

    Product Guide ineo 654/754 Consumables TONER BLACK ineo 654/754 Name TN711K Concept Cartridge system Weight 945 g Yield 47,2 k prints Units per carton 1 cartridge DEVELOPER BLACK ineo 654/754 Name DV711K Concept Developing Unit (ARDSè Auto-Refining Developing System) Weight ???? Yield 1,2 Mill.
  • Page 32 Product Guide ineo 654/754 IMAGING UNIT (C, M, Y) ineo 654/754 Name IU612 (C, M, Y) Weight ????? Yield 155 k prints Units per carton 1 unit Remark Drum included WASTE TONER BOX ineo 654/754 Yield 48 k STAPLE CARTRIDGES FOR FS-535 Name MS –...

  • Page 33: Article Numbers And Compatibility

    Product Guide ineo 654/754 Article Numbers and Compatibility MACHINE / ACCESSORIES Art. No. ineo 4827000126 ineo 4827000127 ACCESSORIES Art. No. Compatibility Paper Feed Options Large Capacity Tray LU-204 A0TJWY3 ineo 652/552/452/654/754 Large Capacity Tray LU-301 A03NW21 ineo 650/550/451/652/552/452/654/754 ineo Banner Tray BT-C1 9967000261 203/253/353/353P/451/652/552/452/654/754 Finishing Options...
  • Page 34 Product Guide ineo 654/754 ACCESSORIES cont.. Art. No. Compatibility Fax Options Fax Kit FK-511 A4MF021 ineo 654/754 ineo 250/350/ Stamp Unit SP-501 4614506 ineo 451/550/650/654/754 ineo 250/350/ Spare TX Marker Stamp 2 4614511 ineo 451/550/650/654/754 Security Options Biometrics Authentication AU-102 A0X9WY1 ineo 652/552/452/220/280/360/654/754...
  • Page 35 Product Guide ineo 654/754 ACCESSORIES / CONSUMABLES Art. No. Compatibility Controller Option Fiery Image Controller IC-414 A4FRWY1 ineo 654/754 Video Interface VI-506 A4MGWY1 ineo 654/754 Others Keyboard Holder KH-102 A4NRWY1 ineo 654/754 Wireless LAN to LAN Adapter 9967001269 div. ineo models SX-600 CONSUMABLES Art.

  • Page 36: Service Part

    WinXP (rather than Vista or Windosw 7), MS-Office, Acrobat Reader, Burning Software (Nero Suite, IBM Record Now etc.), FTP Client (Filezilla etc.) Installation Setup Time [Minutes] (Unpacking & Installation) Main Body ineo+ 654/754 Finisher FS-535 Punch Kit PK-521 Saddle Unit SD-512...
  • Page 37 Product Guide ineo 654/754 Recommended spare part list (Mainbody)
  • Page 38 Product Guide ineo 654/754 Recommended spare part list (Options)
  • Page 39 Product Guide ineo 654/754 Recommended spare part list (Options)
  • Page 40 Product Guide ineo 654/754 PM parts...
  • Page 41 Product Guide ineo 654/754 Parts maintenance time Main unit Parts maintenance time Option Finisher FS-535...
  • Page 42 Product Guide ineo 654/754 Parts maintenance time Option Finisher FS-534 Parts maintenance time Option Document Feeder DF-702 Parts maintenance time Option Saddle Unit SD-511 Parts maintenance time Option Large Capacity Tray LU-204...

  • Page 43: Appendix

    Product Guide ineo 654/754 Appendix Combination of Finishing Accessories FS-534 FS-535 PK-520 PK-521 SD-511 SD-512 JS-602 ZU-606 PI-505 OT-503 Finisher FS-534 ¹) Finisher FS-535 yes ²) yes ²) ¹) ¹) Remark: OT-503 is always required if no other finishing devise is attached ²) Either/or, cannot be used together Brief Finisher Specification Overview FS-534...
  • Page 44 Product Guide ineo 654/754 Paper weights and sizes to be used in ineo 654/754 Source Capacity (80 g/m²) Size (mm) Weight (g/m²) Tray 1 A5 – A3+, SRA3, 52 - 256 Tray 2 A5 – A3+, SRA3 52 – 256 Tray 3 1500 52 –...
  • Page 45 Product Guide ineo 654/754 Utilities Instant direct printing of PDF, TIFF, PCL/PS, XPS files Direct Print without print commands or opening source applications Resident on MFP – Internet Browser based status control WebConnection and admin setting User Tool Box Operator S/W which is able to take images out of Box Print Status Notifier Notifying the user when print job has been completed.
  • Page 46 Product Guide ineo 654/754 Utilities By using MyPrint Manager, follow me printing functionality is MyPrint Manager given on OpenAPI capable MFPs. Network based admin setup tool. Same functionality as Network Setup admin area of WebConnection. NDPS Gateway Gateway to interact seamless with Netware environments. Print Utility for Unix Support for Unix printing, Unix Filter Utility to setup the MFP with a Captaris RightFax server for...
  • Page 47 Product Guide ineo 654/754 What is delivered with the machine Document Feeder Yes Imaging Unit (incl. PC-drum & Starter) Yes (4 units) Toner No Copy Tray/Output Tray No Legal Required Information (LRI) Yes (incl. DVD with User’s Guides, Driver & Software) Face Sheets Yes...
  • Page 48 Product Guide ineo 654/754...
  • Page 49 December 2011. We reserve the right to make changes to the technical design. Specifications refer to maximum performance under standard conditions. No guarantee is provided in relation to any of the data supplied. Your Develop Marketing...

This manual is also suitable for:

Ineo+ 754
