Develop ineo+ 6500 Service Manual page 321

6. FOLDING CONVEYANCE SECTION

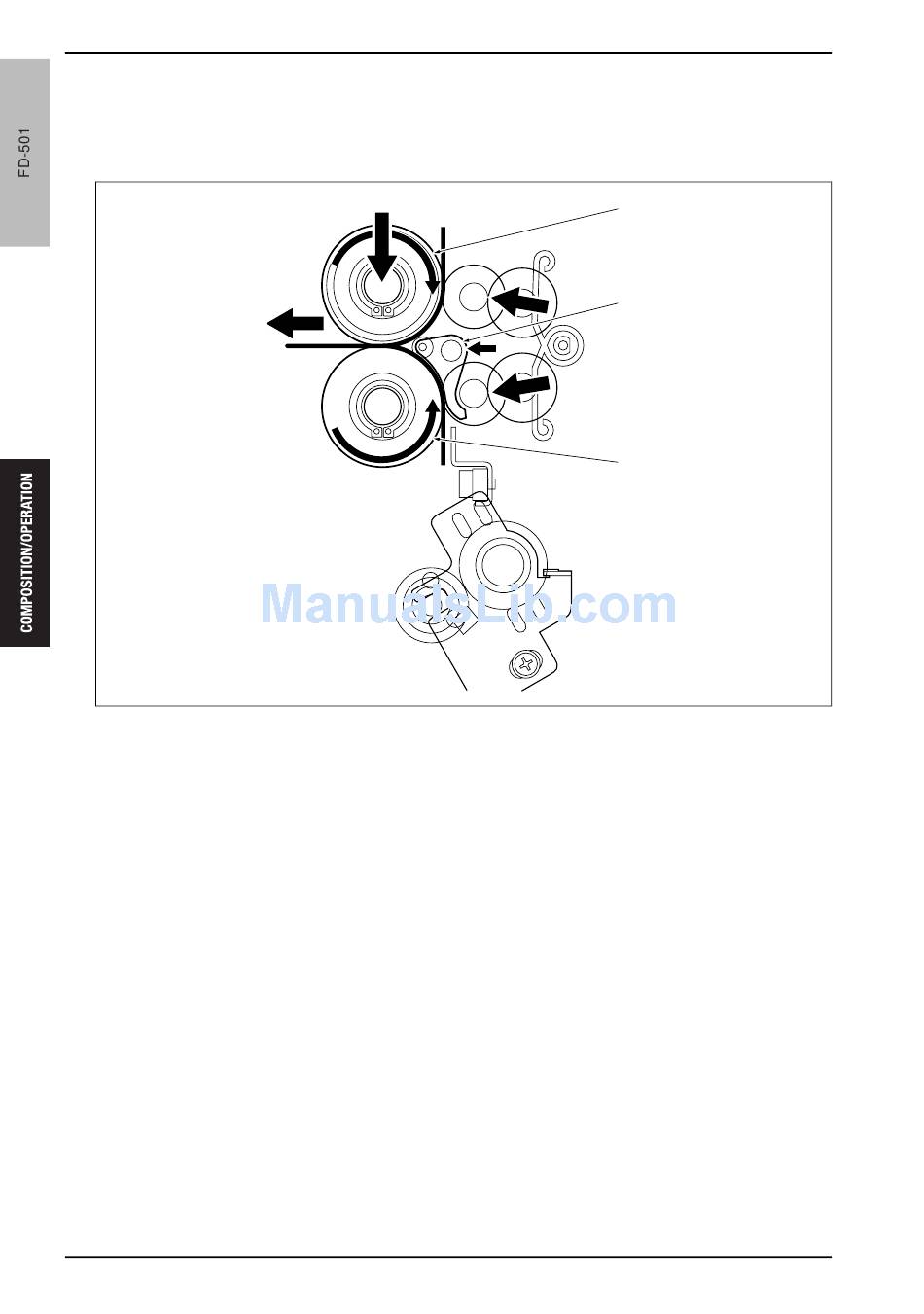

And in parallel with this, when the 1st folding release motor (M14) starts up, the winding-up of the wire that pulls
the folding guide [2] to the right side is loosened to allow the folding guide [2] to push out the paper in the clear-
ance between the 1st folding rollers /1 [1] and /2 [3]. As a result, the paper gets caught in the rollers to be
folded.
[1] 1st folding roller /1
[2] Folding guide
36
Theory of Operation Ver2.0 Sep.2006
[1]
[2]
[3]
[3] 1st folding roller /2
fd501to2018c
