Develop ineo+ 6500 Service Manual page 594

Theory of Operation Ver2.0 Sep.2006

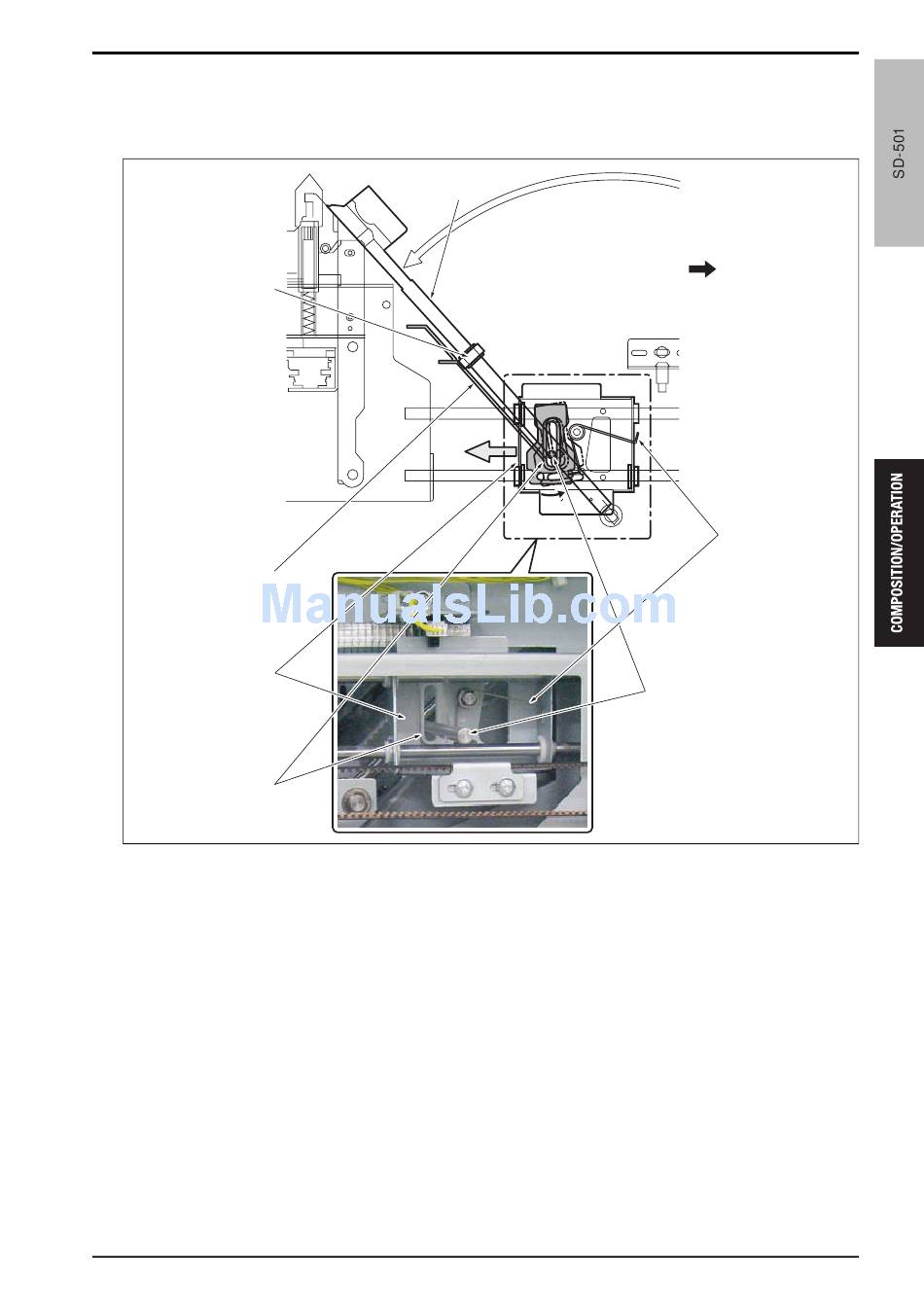

In the rotation drive of the bundle arm [8], the slide guide [5] has to be overrun to be sure to make the ring [7] of
the bundle arm contact with the guide plate [6]. To prevent any parts from damage due to the overrun, the guide
shaft [3] can be moved by the shock absorbing guide [4] and the spring [2].
[7]
[6]
[5]
[4]
[1] Front side direction
[2] Spring
[3] Guide shaft
[4] Shock absorbing guide
[8]
[5] Slide guide
[6] Guide plate
[7] Ring
[8] Bundle arm
7. SADDLE STITCHING SECTION
[1]
[2]
[3]
15ant2c046na
73
