6. REVERSE/PAPER EXIT SECTION
(2) Control
1.
The original from the conveyance section is conveyed to the path of the reverse stacker [1] that is set by
paper exit gate and the reverse gate.
2.
When the reverse sensor (PS305) detects the rear end of the original [2] and turns off, M303 reduces its
speed.
3. After the specified time, the original stops proceeding [3] with its rear end nipped by the reverse roller.
4.
M303 rotates in reverse and the original is conveyed to the reverse paper exit path [4].
5.
After the specified time has elapsed from when the paper exit sensor (PS306) has turned ON, M303 slows
down [5] and the original is ejected in reverse at low speed to the paper exit stacker.
6.
After the specified time from when PS306 has turned off, M303 is turned off [6].

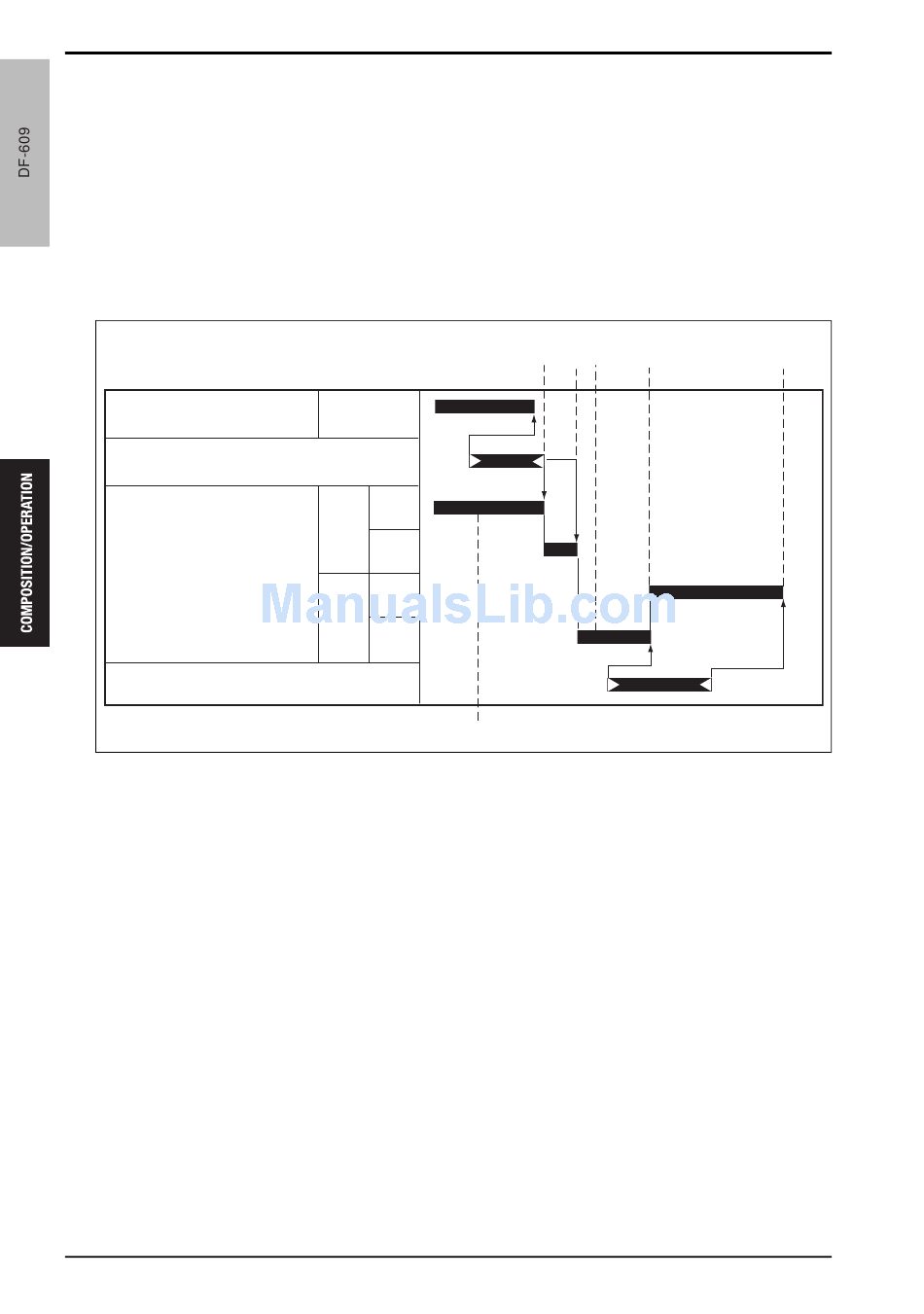

Conveyance motor (M302)
Reverse sensor (PS305)
Reverse/paper exit motor
(M303)
Paper exit sensor (PS306)
[1] Conveyance to the reverse stacker
[2] Slowing down (M303)
[3] Stops with rear end nipped
28
Forward
High
Forward
Low
Low
Reverse
High
[1]
[4]
[5]
[6]
Theory of Operation Ver1.0 Sep.2006
[2] [3] [4] [5]
Reverse paper exit (with reverse rotation at
high speed)
Slowing down to align original
Reverse paper exit completed
[6]
a052t2c020ca
