Theory of Operation Ver2.0 Sep.2006
5.3.2

Conveyance line speed control

The conveyance process speed of the entrance roller and the coupling conveyance rollers 1/ and 2/ that are
driven by the conveyance motor (M2) varies according to the conveyance process speed of the main body.
These operations are common to all the modes.

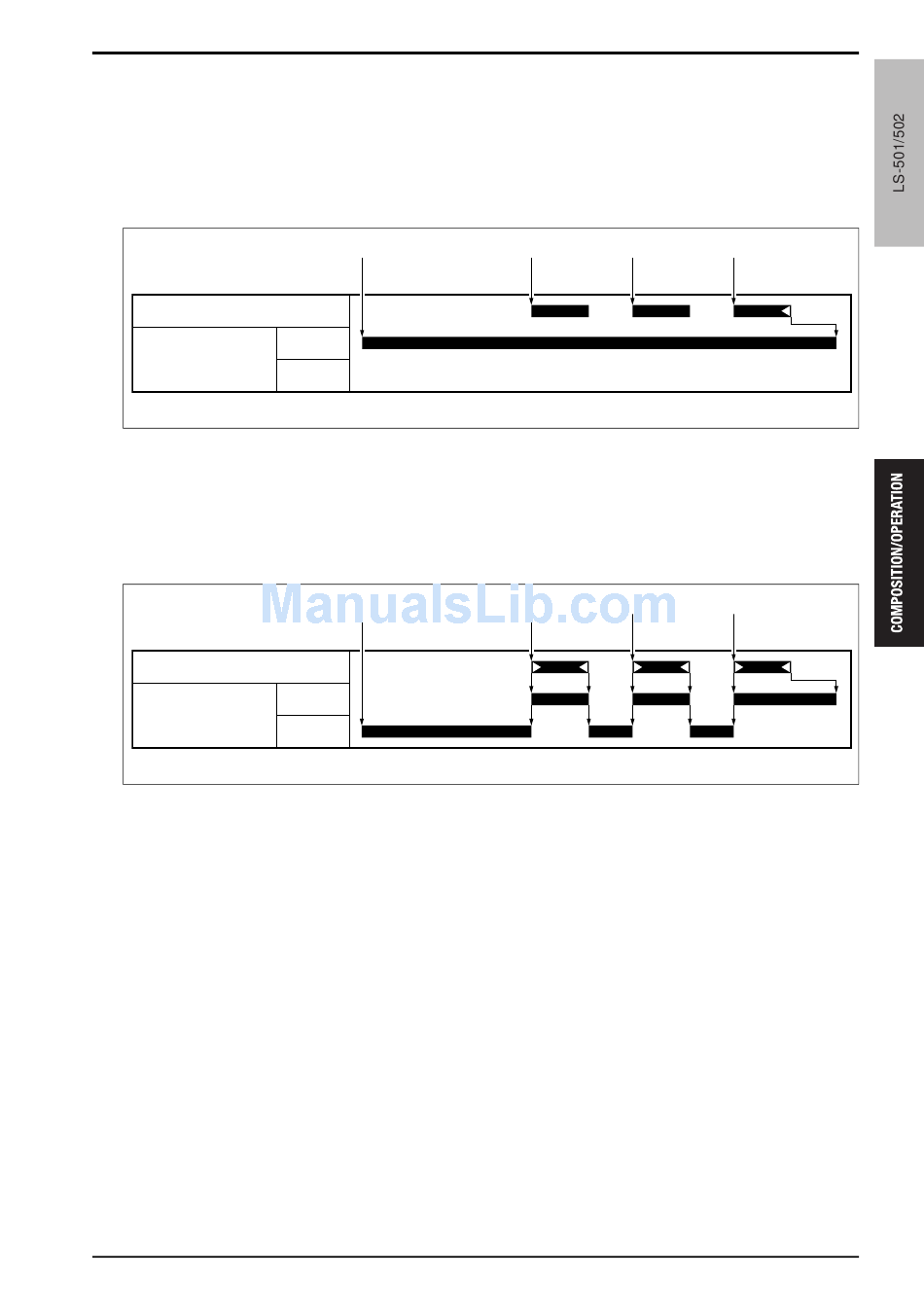

A. When the main body process speed is 1000 mm/s:
Entrance sensor (PS4)
Conveyance motor
(M2)
[1] Main body paper exit sensor (PS3) ON
[2] 1st sheet of paper
B. When the main body process speed is 490 mm/s:
Entrance sensor (PS4)
Conveyance motor
(M2)
[1] Main body paper exit sensor (PS3) ON
[2] 1st sheet of paper
[1]
1000 mm/s
490 mm/s
[1]
1000 mm/s
490 mm/s
5. ENTRANCE CONVEYANCE SECTION
[2] [3]
[3] 2nd sheet of paper
[4] 3rd sheet of paper
[2] [3]
[3] 2nd sheet of paper
[4] 3rd sheet of paper
[4]
ls502to2007c
[4]
ls502to2008c
13
