8. BUNDLE PROCESSING SECTION
B. Control
The bundle press motor (M23) rotates in the forward direction to conduct the paper press operation [2] to press
the paper properly when the bundle press movement motor (M17) completes the press position search [1]. M23
rotates in the reverse direction to move up the bundle press plate /Up slightly to prevent the paper from becom-
ing loose [4] when the bundle press lower limit sensor (PS47) detects the lower limit [3] and turns OFF.
M23 rotates in the forward direction to press the paper [5] after a specified period of time since the trimmer reg-
istration sensor (PS55) detects the completion of the registration operation.
M23 rotates in the reverse direction to return the bundle press plate /Up to the home position [7] when the trim-
mer blade motor (M31) completes the paper trimming operation [6].

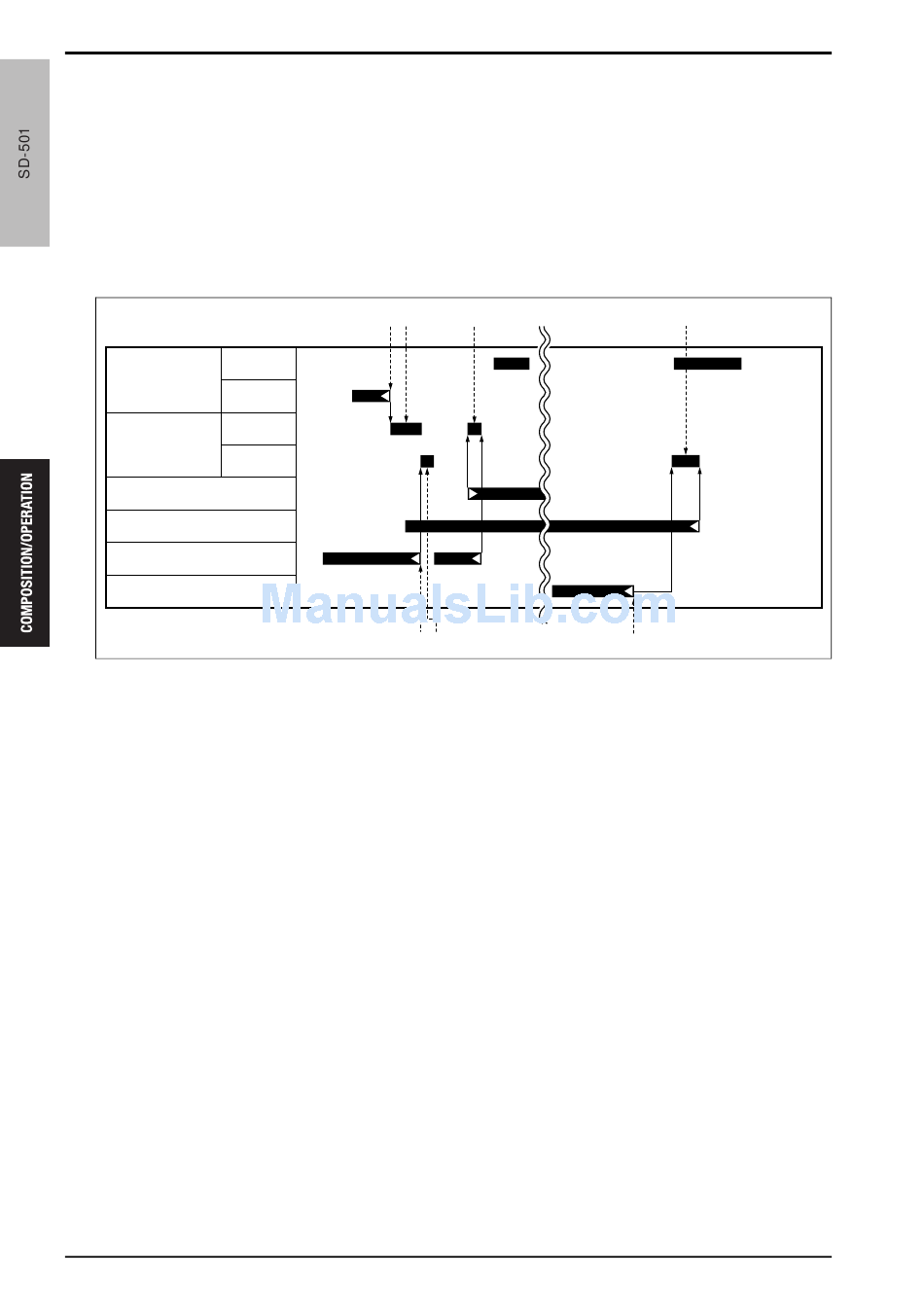

Forward
Bundle press
movement
Reverse
motor (M17)
Forward
Bundle press
motor (M23)
Reverse
Trimmer registration sensor (PS55)
Bundle press home sensor (PS37)
Bundle press lower limit sensor (PS47)
Trimmer blade motor (M31)
[1] Searching the press position completed
[2] Press operation
[3] Lower limit detected
[4] Press release
96
[1] [2] [5]
[3][4]
[5] Press
[6] Trimming completed
[7] Returning to the home position
Theory of Operation Ver2.0 Sep.2006
[7]
[6]
15ant2c105na
