Theory of Operation Ver2.0 Sep.2006
B. Control
(1) Stapling control
The stapler motors /Rt (M29) and /Lt (30) start the stapling operation [2] when the clincher up down home sen-
sor (PS26) detects that the clinchers /Rt and /Lt are contacted with the stapler unit [1].
The clincher solenoids /Rt (SD9) and /Lt (SD10) bend the staple and the stapling operation is completed when
the clincher start sensors /Rt (HS1) and /Lt (HS3) in the stapler unit turn ON [3]. M29 and M30 stop and return to
the home position [4] when the stapler home sensors /Rt (HS1) and /Lt (HS3) detects the home position.

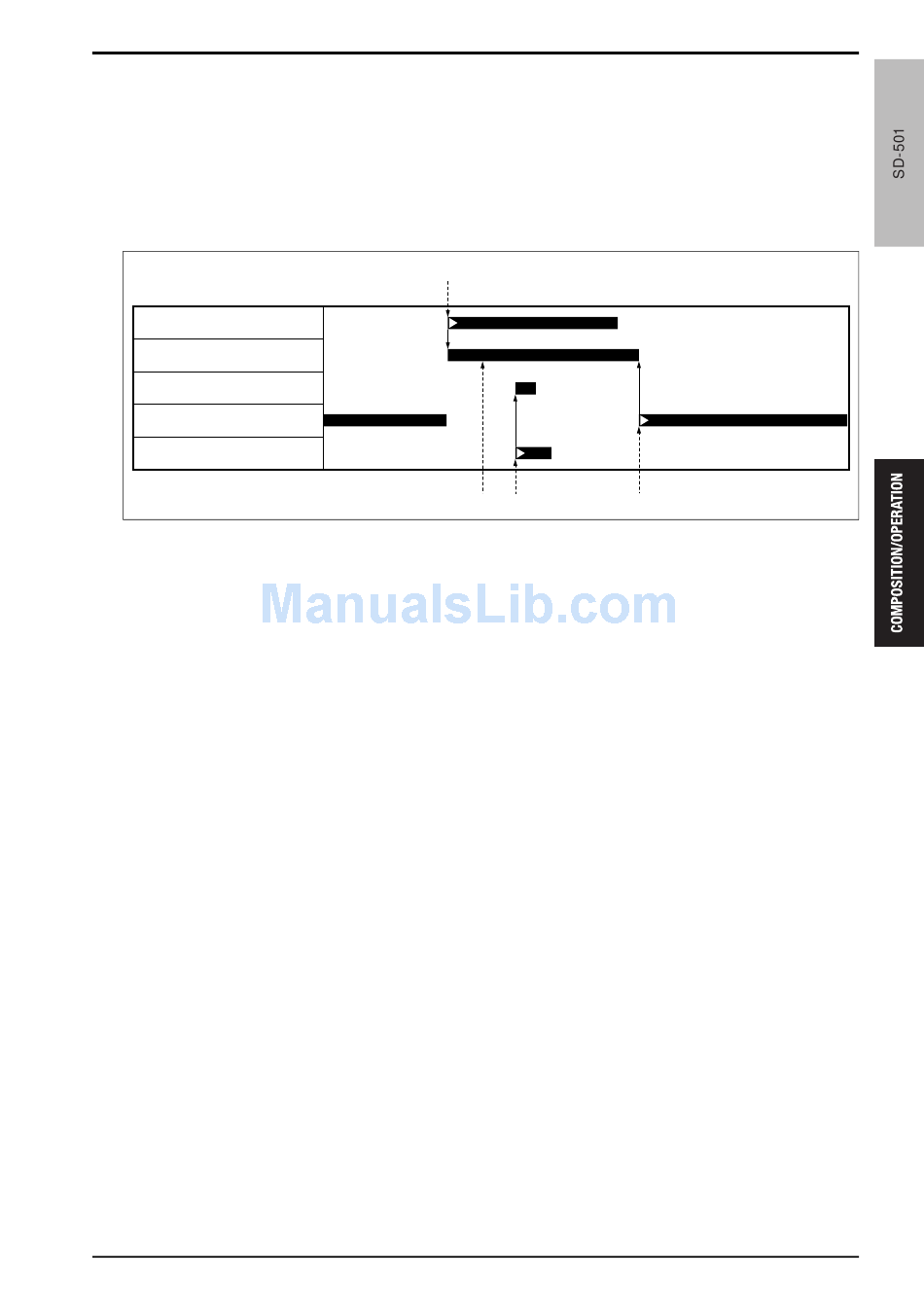

Clincher up down home sensor (PS26)
Stapler motors /Rt (M29), /Lt (M30)
Clincher solenoids /Rt (SD9), /Lt (SD10)
Stapler home sensors (HS1) and /Lt (HS3)
Clincher start sensors /Rt (HS2) and /Lt (HS4)
[1] Clincher contacted
[2] Stapling operation
(2) Staple and cartridge detection
When the remaining amount of the staple becomes 20 or the cartridge is not set, the staple empty switches /Rt
(SW1) and /Lt (SW2) turn ON and the main body displays the message on its operation panel.
[1]
[2] [3]
[3] Clinching operation
[4] Returned to the home position
7. SADDLE STITCHING SECTION
[4]
15ant2c092na
