4. CONVEYANCE SECTION
B. Sub tray gate
Switching is made between the main tray paper exit and the sub tray paper exit by the sub tray gate solenoid
(SD9). In the case of the main tray paper exit, the SD9 remains OFF.
When exiting the 1st sheet of paper into the sub tray, switch the SD9 a specified period of time after the start
button is turned ON.
For the 2nd and the succeeding sheets of paper, SD9 is energized in accord with the paper exit direction of the
succeeding page after the preceding page passes through the intermediate conveyance sensor (PS13).

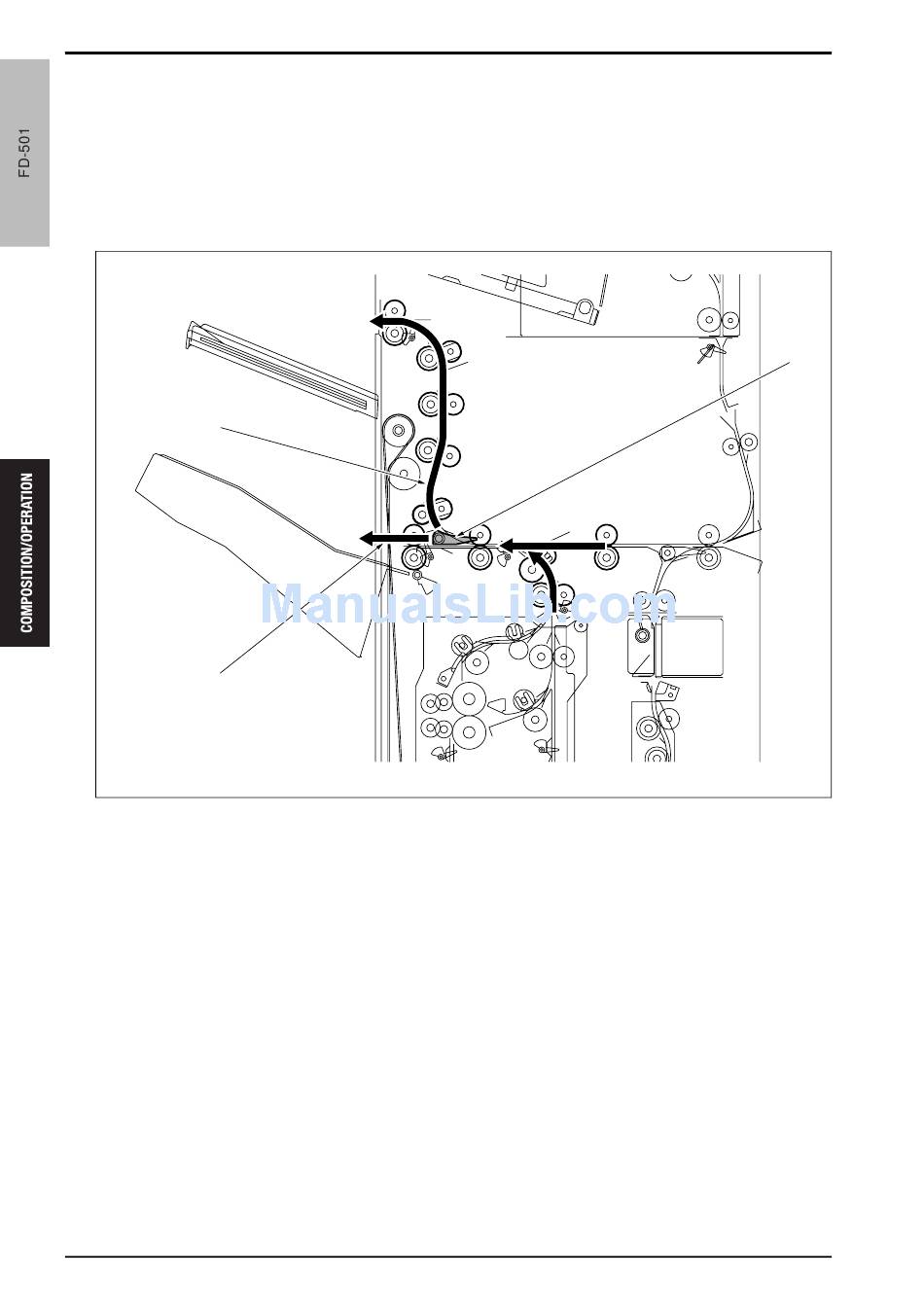

[3]
[2]
[1] Sub tray gate
[2] Main tray paper exit
20
Theory of Operation Ver2.0 Sep.2006
[3] Sub tray paper exit
