Theory of Operation Ver2.0 Sep.2006
7.3.4

Clincher up down control

A. Mechanism

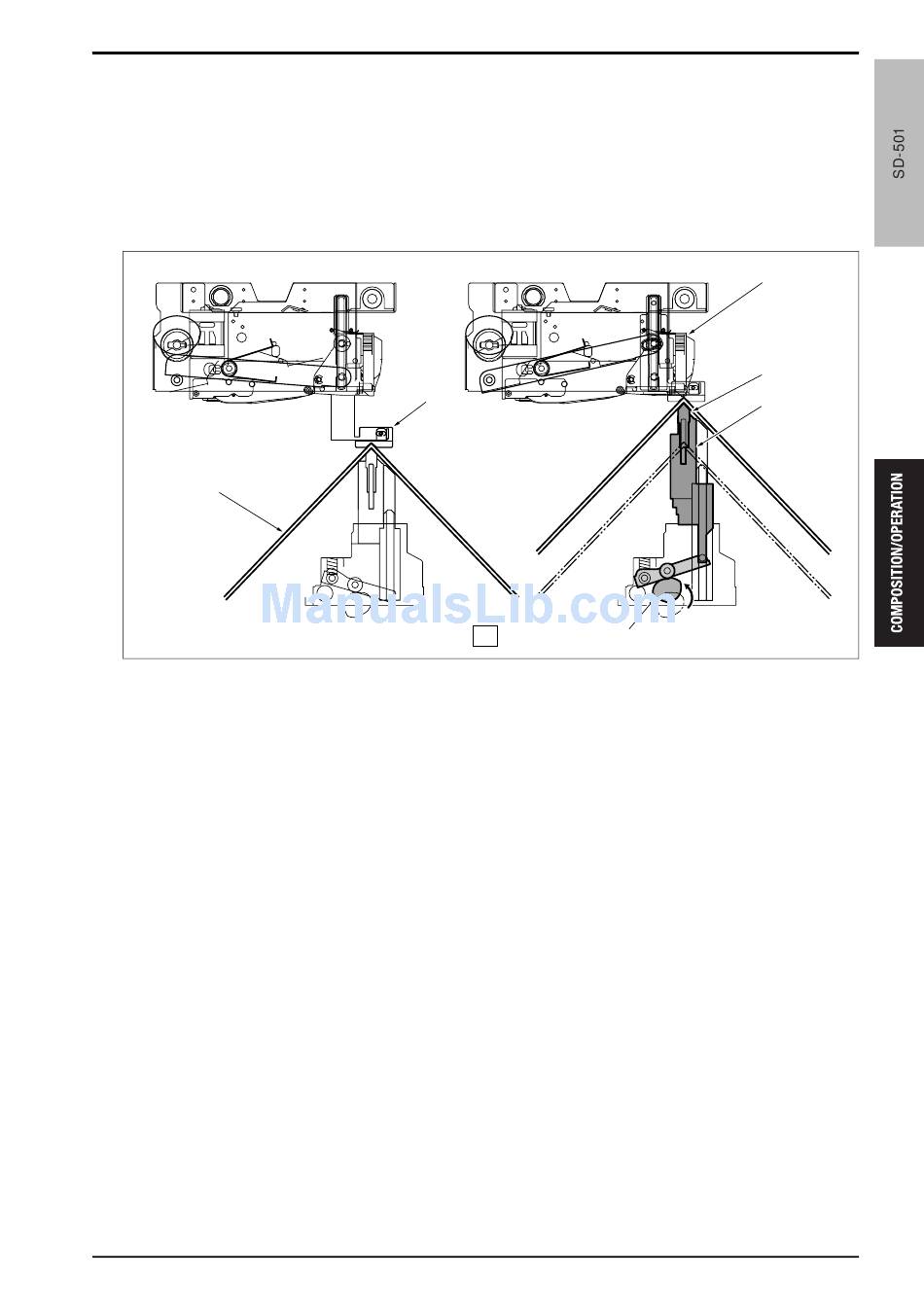

The clincher shelters at the lower position to obtain space between the stapler and the clincher when the paper
is conveyed between them.
After the alignment operation, the saddle stitching hold /Up [7] moves down and holds the center folded paper
[6]. Then the eccentric cam [5] drives the saddle stitching hold /Lw [2] and the clincher [3] to push up the saddle
stitching hold /Up [7] to the position where the stapler [1] is positioned while holding the center folded paper.
[6]
[1] Stapler
[2] Saddle stitching hold /Lw
[3] Clincher
[4] Eccentric cam
[7]
[5]
[5] Left side view
[6] Center folded paper
[7] Saddle stitching hold /Up
7. SADDLE STITCHING SECTION
[1]
[2]
[3]
[4]
15ant2c041na
65
