Theory of Operation Ver2.0 Sep.2006

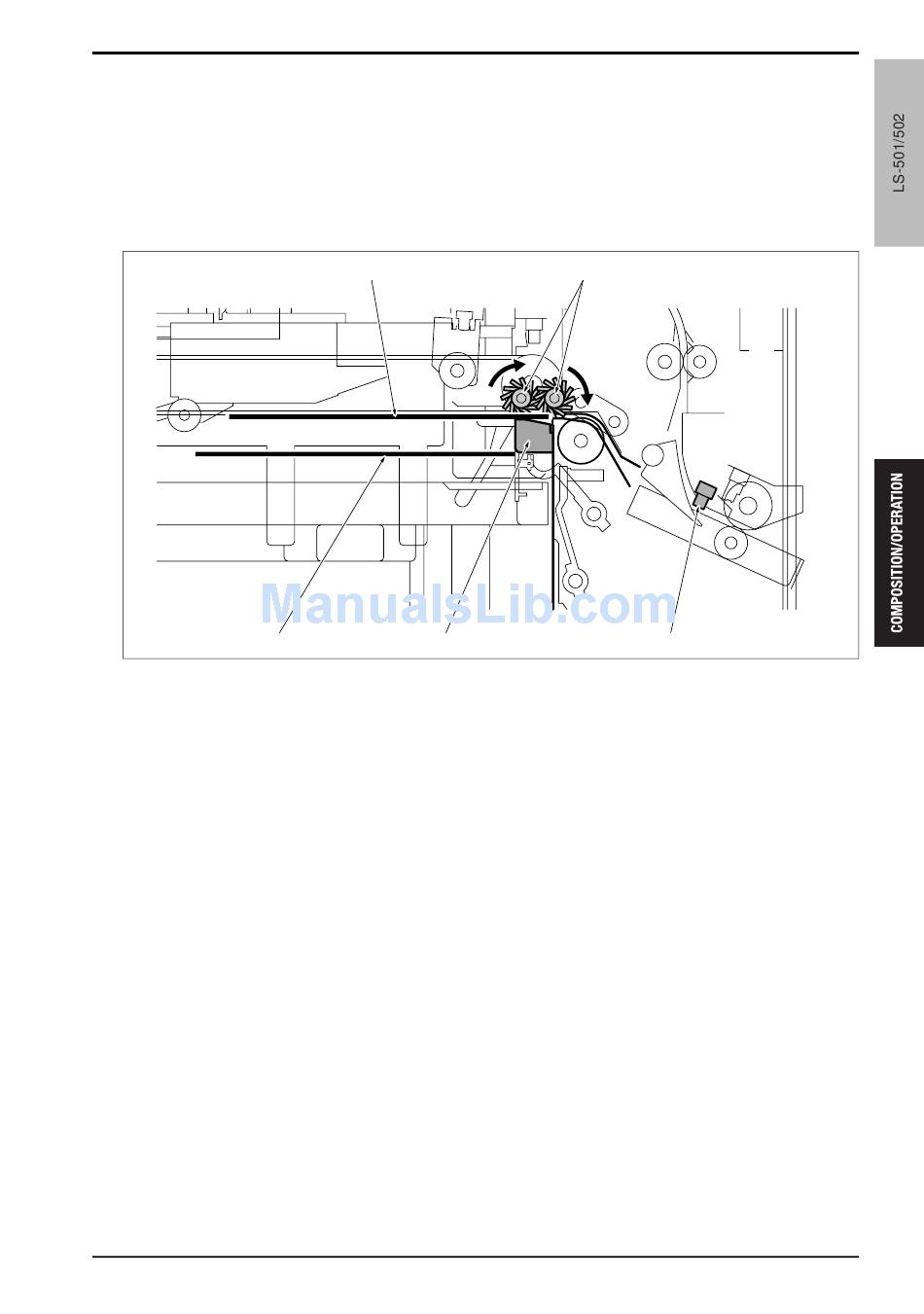

E. Rear stopper control
While in the stacker tray sort mode is in shifting, the rear stopper is left open and this plays as a guide for the
trailing edge of paper.
To assist the separation of paper released from the grip, the paddle is rotated at a high speed.
For the rear stopper solenoid (SD3) that drives the rear stopper, a latch-type solenoid is employed that is not
required to be energized to maintain the ON state. However, a latch-type solenoid requires a different control
signal for each ON and OFF action.
[1] Paddler
[2] Entrance sensor (PS4)
[3] Rear stopper
[5]
[4] [3]
[1]
[4] Paper position while in the stacker tray sort mode
[5] Paper position while in the stacker tray non-sort mode
6. CONVEYANCE SECTION
[2]
ls502to2020c
27
