8. BUNDLE PROCESSING SECTION

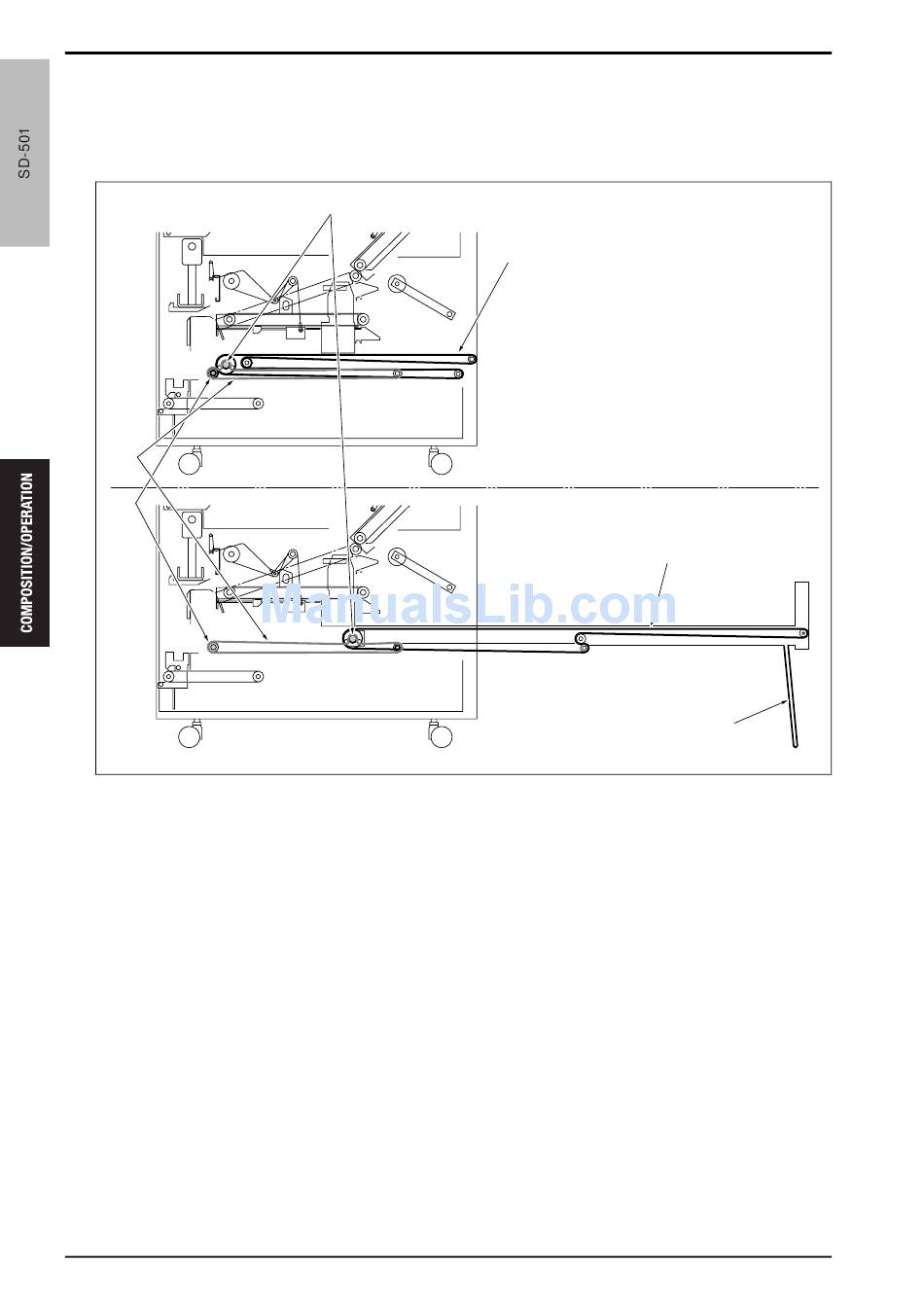

(2) Bundle exit tray expanding mechanism
The bundle exit tray is expandable. The folded bundle exit conveyance belt [6] is also expanded [1] when the
bundle exit tray is expanded. At the time, it also moves the bundle exit conveyance belt drive shaft [5] for the
bundle exit conveyance belt [1] and [6].
[4]
[3]
[1] Bundle exit conveyance belt (expanded)
[2] Folding stand
[3] Drive shaft
100
[5]
[4]
[5]
[6]
Theory of Operation Ver2.0 Sep.2006
[6]
[1]
Bundle exit drive belt
Bundle exit conveyance belt drive shaft
Bundle exit conveyance belt (folded)
[2]
15ant2c063na
