8. BUNDLE PROCESSING SECTION

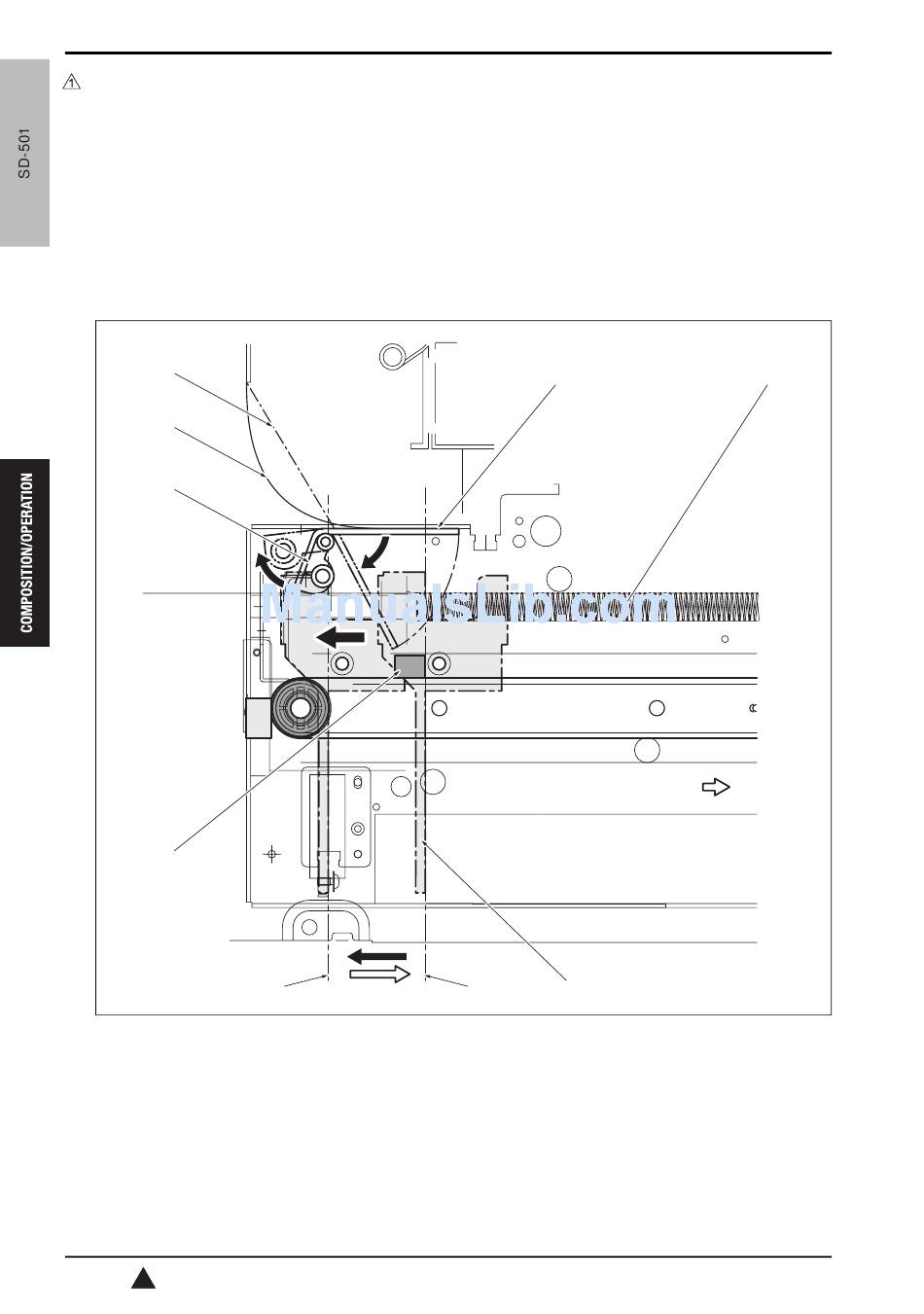

(4) Shutter mechanism
When the spring [10] pushes the scraps press plate [2] to its backmost position, the shutter arm [6] is pushed up
and the shutter [9] is opened. On the other hand, the shutter is closed when the scraps press plate is moved for-
ward from the back most position to the position [3] by the spring of the shutter arm.
Opening the shutter allows the guide sheet [7], which is attached to the shutter, to be straightened [8] due to the
tension. Closing the shutter allows slack in the guide sheet to widen the dropping path of scraps.
Before trimming, the scraps press plate moves 50 mm [3] from the backmost position and stops to be ready for
trimming.
The shutter repeats opening/closing operation by shuttling the scraps press plate 50mm back and forth in each
trimming operation. This shutter operation creates vibration with the guide sheet to shake off the trimmer scraps.
[8]
[7]
[6]
[5]
[1] Front side direction
[2] Scraps press plate
[3] Shutter closing position
[4] Shutter opening position
[5] Scraps press claws
102
1
[4]
Theory of Operation Ver2.0 Sep.2006
[9]
[3] [2]
[6] Shutter arm
[7] Guide sheet
[8] Guide sheet (straightened)
[9] Shutter
[10] Spring
[10]
[1]
15ant2c117na
